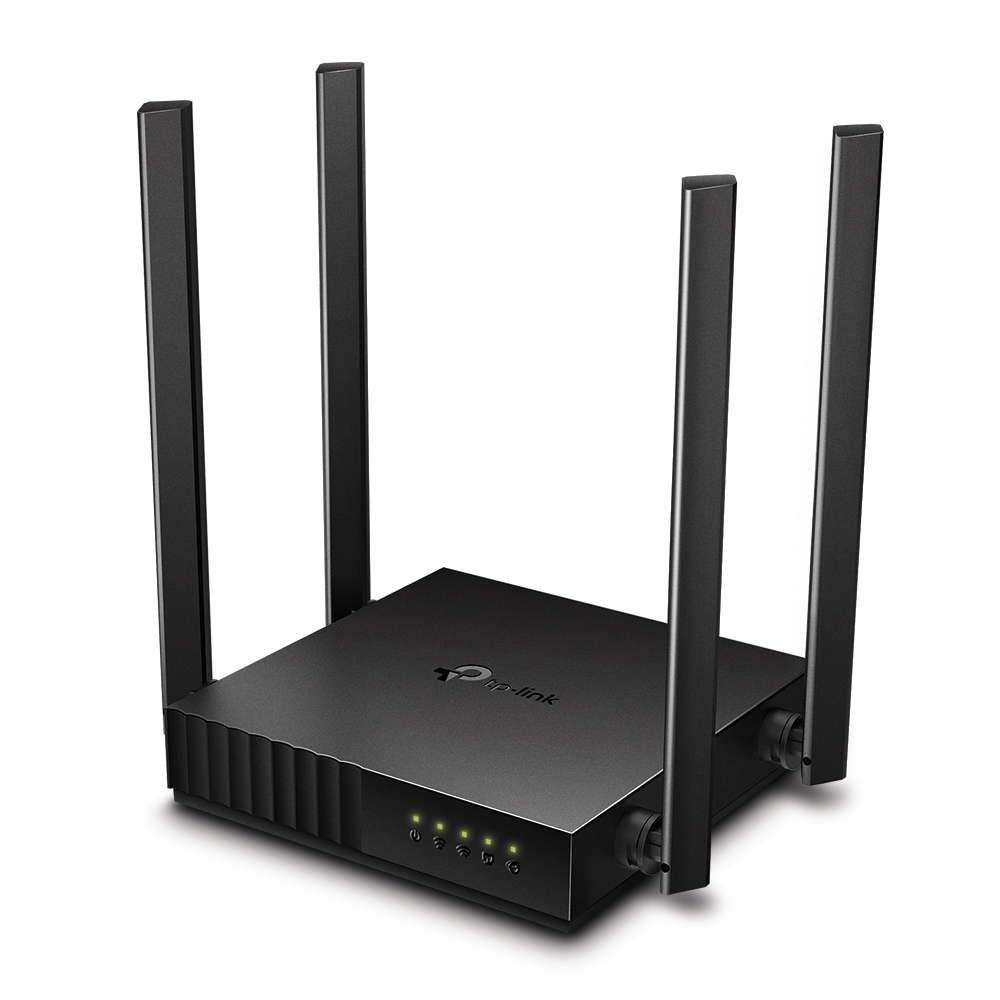

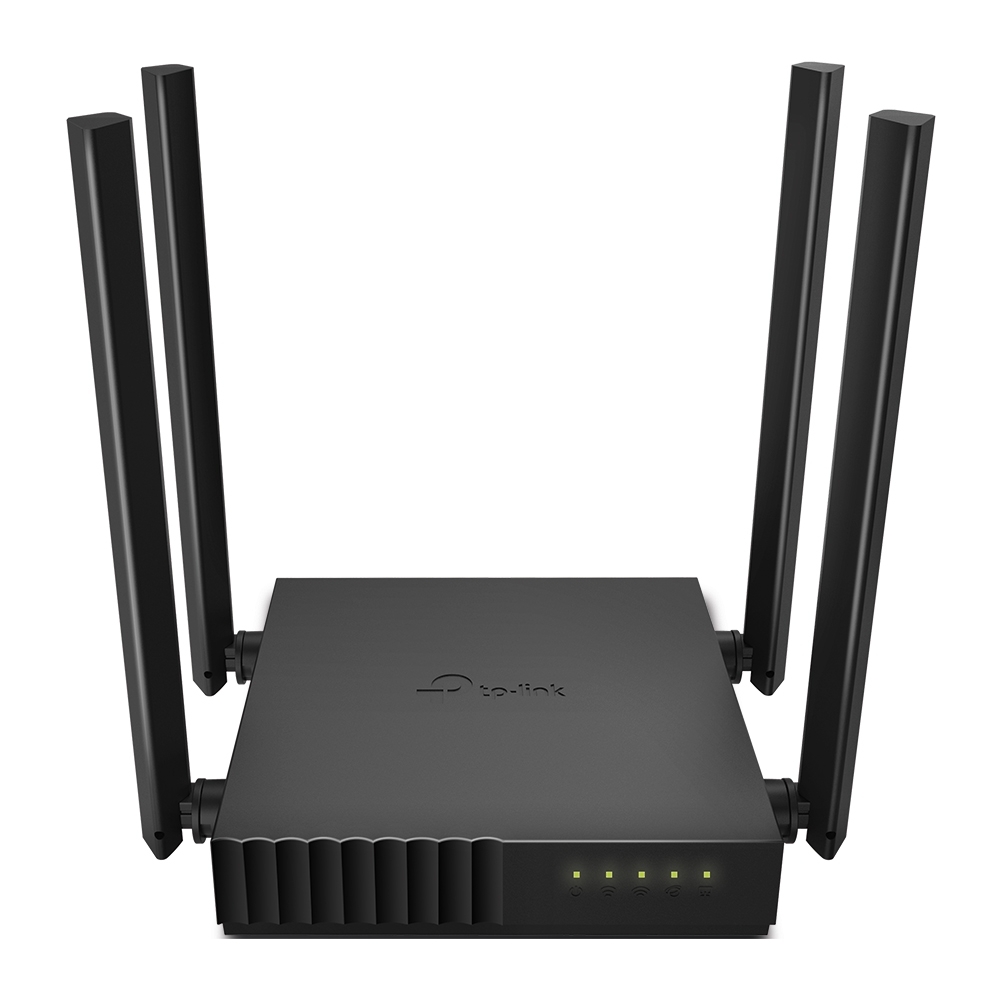

TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router 2.4GHz 300Mbps 5GHz 867Mbps 4xLAN 1xWAN 4xAntennas, WPS, Router Access Point and Range Extender Modes
(Archer-C54)
| WIRELESS |
| Standards |
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range |
3 Bedroom Houses
4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
Medium
Dual-Band
Allocate devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients |
| Working Modes |
Router Mode
Access Point Mode
Range Extender Mode |
| HARDWARE |
| Processor |
Single-Core CPU |

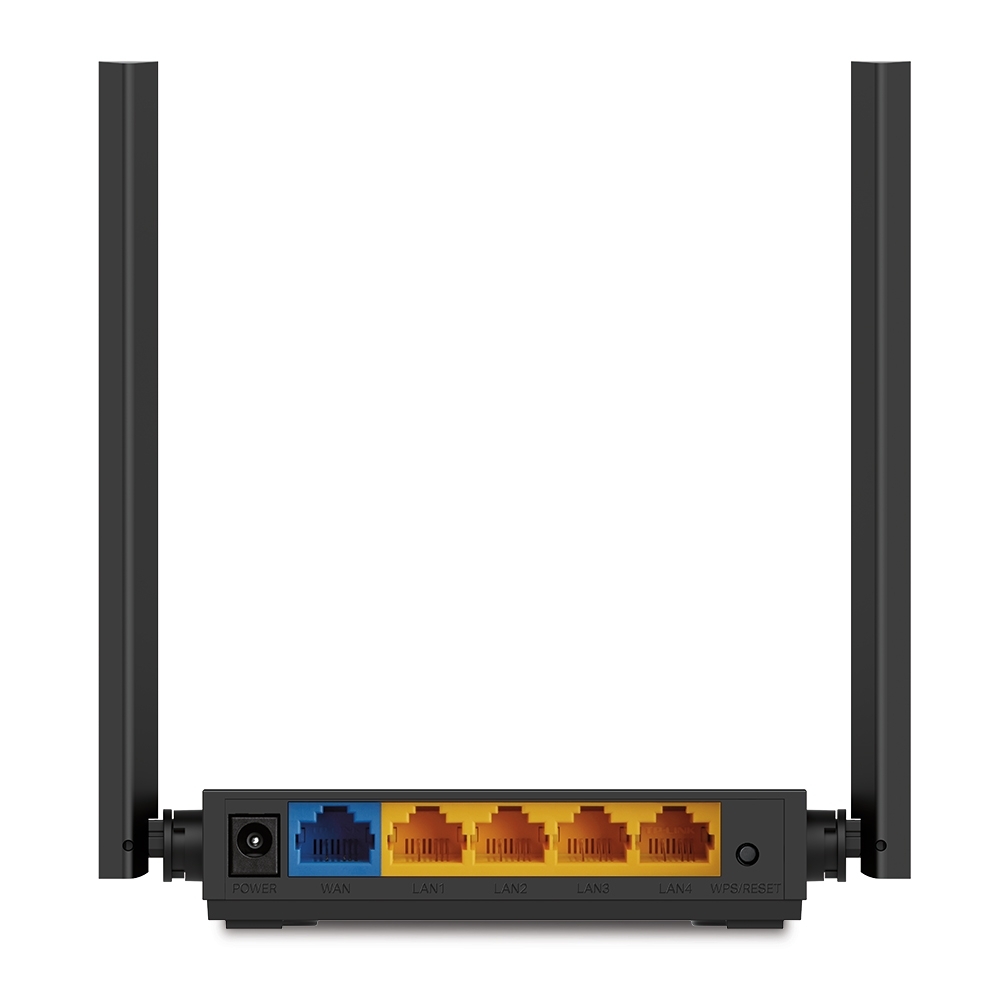

| Ethernet Ports |
1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports |
| Buttons |
WPS/Reset Button |
| Power |
9 V ⎓ 0.85 A |
| SECURITY |
| WiFi Encryption |
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway |
| Guest Network |
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| SOFTWARE |
| Protocols |
IPv4
IPv6 |
| Parental Controls |
URL Filtering
Time Controls |
| WAN Types |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service |
QoS by Device |
| NAT Forwarding |
Port Forwarding
Port Triggering
DMZ
UPnP |
| IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP |
Address Reservation
DHCP Client List
Server |
| DDNS |
NO-IP
DynDNS |
| Management |
Tether App
Webpage
Check Web Emulator> |
| PHYSICAL |
| Dimensions (W×D×H) |
4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm) |

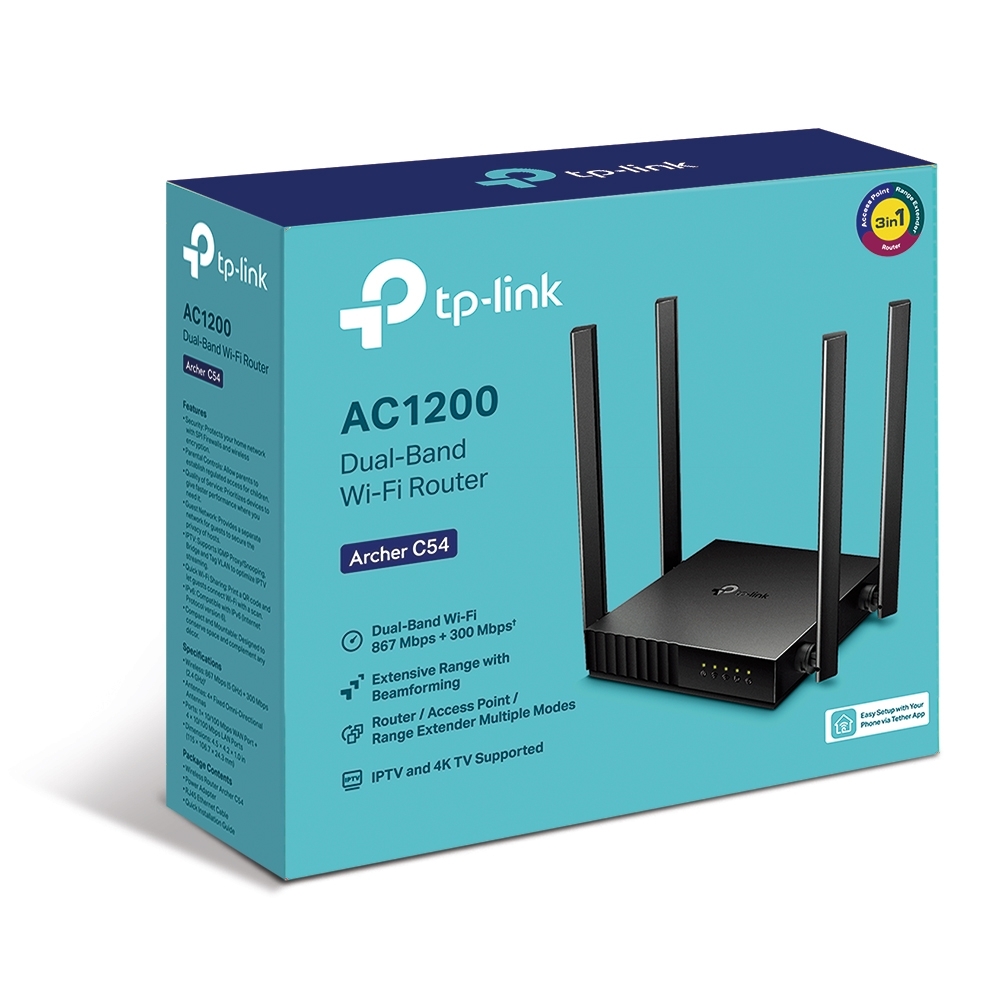

| Package Contents |
Wi-Fi Router Archer C54
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| OTHER |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| TEST DATA |
| WiFi Transmission Power |
CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity |
5GHz:
11a 6Mbps:-93dBm；
11a 54Mbps:-78dBm；
11ac HT20 mcs8:69dBm;
11ac HT40 mcs9:-66dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm； |
| SKU |
Archer-C54 |
| Barcode # |
6935364089337 |
| Brand |
TP-LINK |
| Shipping Weight |
0.5100kg |
Manufacturer Warranty: 3 Year Manufacturer Warranty
