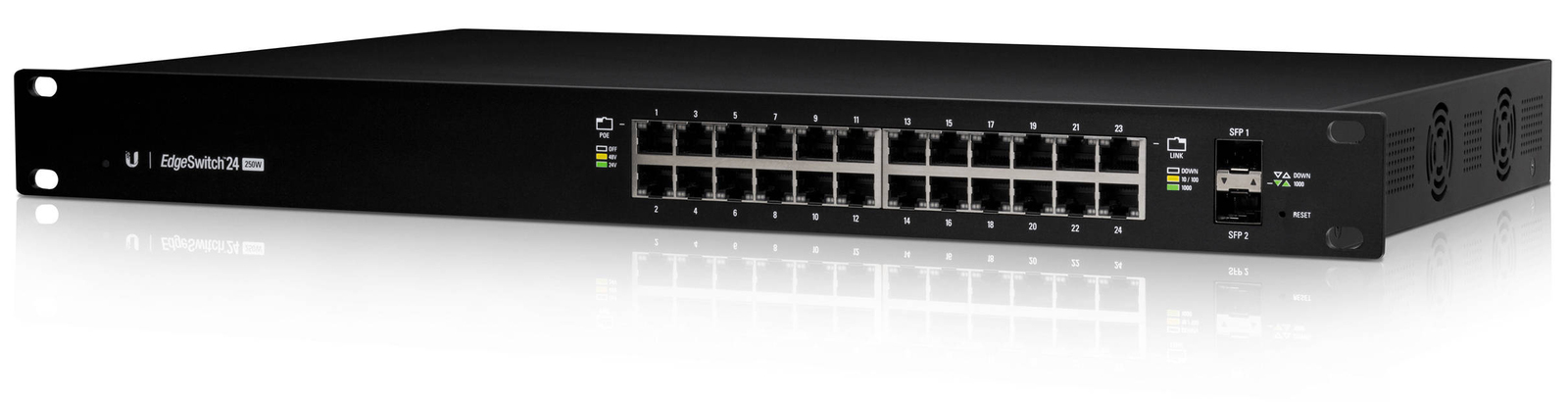

Ubiquiti EdgeSwitch ES-24-250W 24 Port Gigabit Rackmountable Switch
Model# ES-24-250W
-
SKU: ES-24-250W
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ubiquiti Networks EdgeSwitch ES-24-250W 24 Port Gigabit Rackmountable Switch - 24x Gigabit RJ45 Ports - 2x SFP Ports - 1x Serial Console Port - Supports POE+ IEEE 802.3at/af and 24V Passive PoE - AC/DC, Internal,250W Total Power Output - Supports PoE+ and 24v Passive
Layer 2/3, PoE switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 250W power supply.

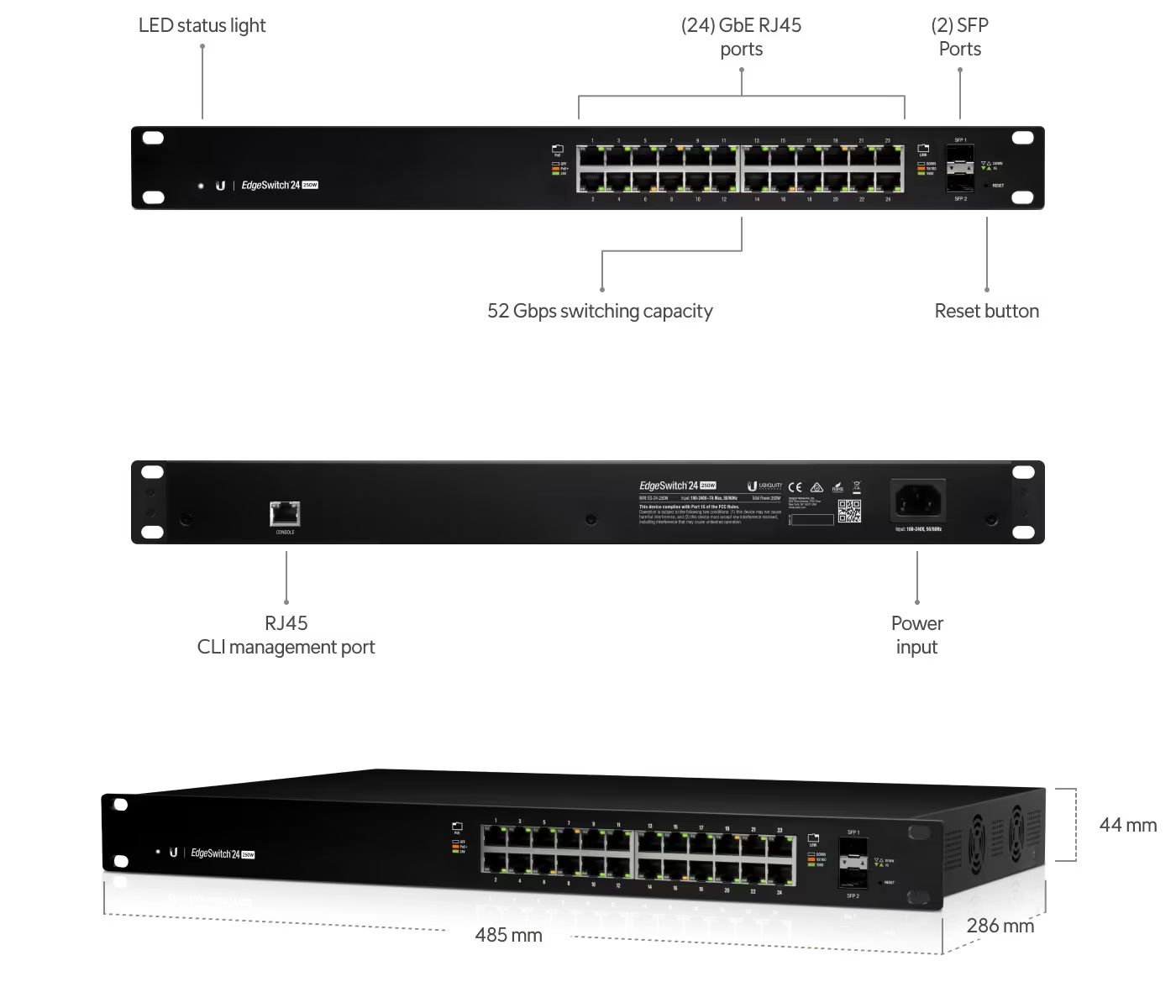

(24) GbE RJ45 ports
(2) SFP ports
250W total PoE availability
Rack-mountable, 1U
Available with 24 or 48 RJ45 Gigabit ports, the EdgeSwitch™ delivers robust performance, PoE+ support and intelligent switching for growing networks.
Powerful Enterprise Switch Models
The EdgeSwitch™ delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Enterprise-Class Features
The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support
The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Breakthrough Value
The EdgeSwitch™ provides top price/performance value: a full-featured, enterprise-class switch starting at $299 USD MSRP.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
(ES-24-250W)
| Mechanical | |
|---|---|
| Dimensions | 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24") |
| Weight | 4.7 kg (10.4 lb) |
| Hardware | |
| Networking Interfaces | (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Max. Power Consumption Includes PoE Output Excludes PoE Output |
250W 30W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 250W DC |
| LEDs Per Port RJ45 Data Ports SFP+/SFP Data Ports |
PoE, Speed/Link/Activity Speed/Link/Activity |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE Per Port | |
| PoE Interfaces | PoE/PoE+ (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range PoE+ Mode | 50–57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
| SKU | ES-24-250W |
| Barcode # | 817882023184 |
| Brand | Ubiquiti |
| Shipping Weight | 7.0000kg |
| Shipping Width | 0.330m |
| Shipping Height | 0.080m |
| Shipping Length | 0.570m |
| Shipping Cubic | 0.014473000m3 |
Manufacturer Warranty : 1 Year Manufacturer Warranty
