WD Red Pro 20TB 3.5-inch 7200RPM SATA Internal NAS Hard Drive - WD201KFGX
Model # WD201KFGX
-
SKU: WD201KFGX
- Pick Up Available
- Australian Warranty
- Checkout Securely
Western Digital internal storage | WD Red Pro

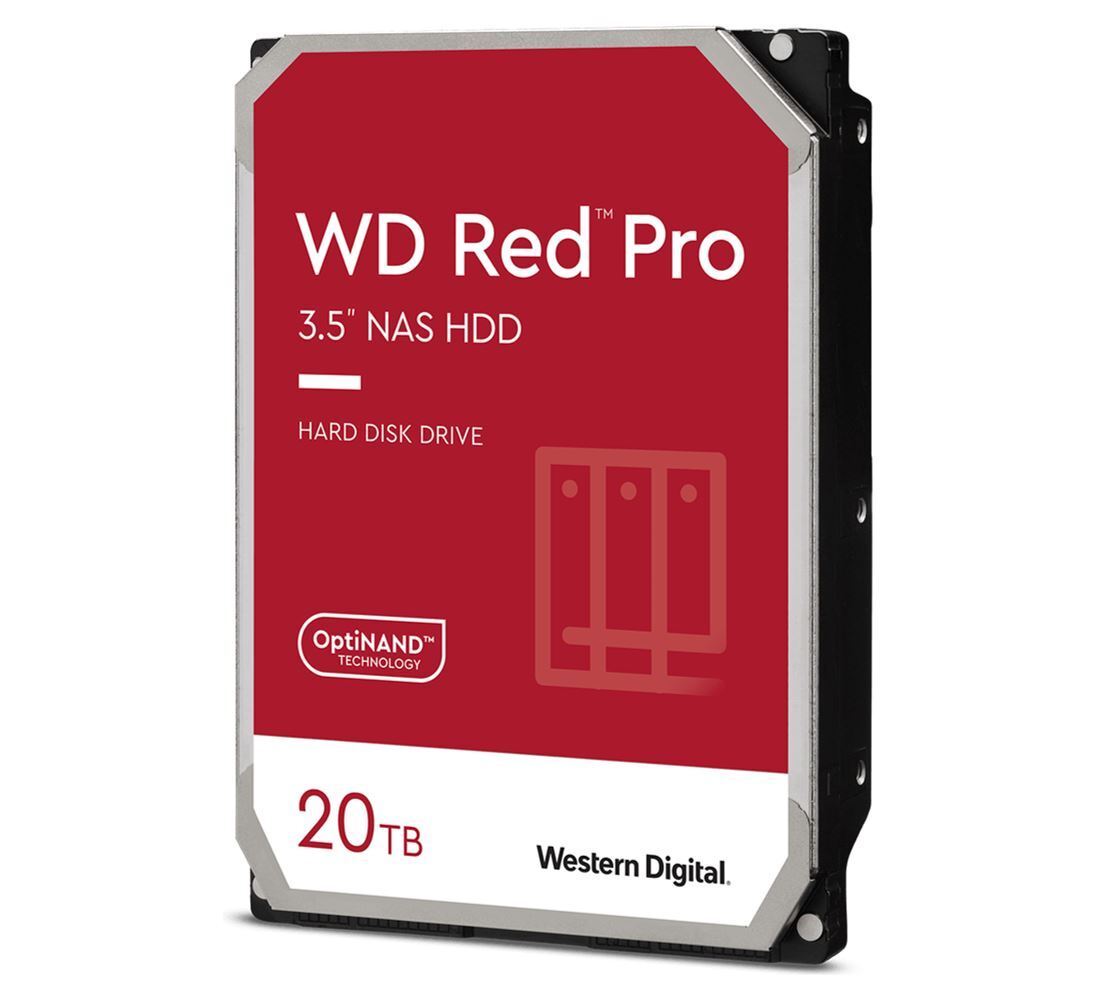

Western Digital WD Red Pro WD201KFGX 20TB 3.5-inch NAS Hard Drive
The WD Red Pro WD201KFGX is a 20TB 3.5-inch internal NAS hard drive with SATA/600, 7200RPM, 512MB cache and CMR recording technology.
20TB capacity SATA/600 7200RPM CMR 512MB cache
NASware 3.0
The source lists NASware 3.0 for NAS integration, protection and performance.
Shock and vibration protection
The supplied content lists a multi-axis shock sensor, dynamic fly height and vibration resistance.
Five-year warranty
The description supplies a five-year limited manufacturer warranty.
Product overview
The WD Red Pro WD201KFGX is supplied as a 20TB internal NAS hard drive in a 3.5-inch form factor.
The exact-SKU specifications list SATA/600, 7200RPM, 512MB cache and Conventional Magnetic Recording.
The supplied description identifies 24x7 multi-user NAS use, systems with up to 24 bays, NASware 3.0, shock sensing, dynamic fly height, 3D Active Balance Plus, RAID error-recovery controls and extended thermal-cycle burn-in testing.
This product is covered by a five-year Western Digital manufacturer warranty. DeviceDeal is an authorised reseller.
Supplied attributes retained
The source also lists Wireless LAN as No and Environmentally Friendly as Yes. These values are preserved in the specification section without adding further interpretation.
Frequently asked questions
What is the WD201KFGX?
It is a Western Digital WD Red Pro 20TB internal NAS hard drive.
What capacity and form factor does it use?
The drive has 20TB capacity in a 3.5-inch form factor.
What interface, speed and cache are supplied?
The specifications list SATA/600, 7200RPM and 512MB cache.
What recording technology is listed?
The source lists Conventional Magnetic Recording, or CMR.
What NAS environments are mentioned?
The description identifies 24x7 multi-user NAS environments and NAS systems with up to 24 bays.
What NAS firmware is supplied?
The source lists NASware 3.0 technology.
What physical details are listed?
The drive is listed at 147 × 101.6 × 26.1mm and approximately 689.5g.
What warranty applies to the WD201KFGX?
The product is covered by a five-year Western Digital manufacturer warranty. DeviceDeal is an authorised reseller.
(WD201KFGX)
Features and highlights
Western Digital WD Red Pro WD201KFGX 20TB 3.5-inch NAS Hard Drive key product details from the supplied information.
20TB NAS capacity
The exact-SKU specification lists 20TB capacity for an internal NAS hard drive.
7200RPM, 512MB cache and CMR
The supplied specifications list 7200RPM, 512MB cache and Conventional Magnetic Recording.
SATA/600 interface
The drive interface standard is supplied as SATA/600.
NASware 3.0
The description lists NASware 3.0 for NAS integration, protection and performance.
Up to 24-bay NAS wording
The source identifies systems with up to 24 bays and 24x7 multi-user environments.
Five-year warranty
A five-year Western Digital manufacturer warranty is supplied.
Technical specifications
WD201KFGX
General information
| Brand | WD / Western Digital |
| Manufacturer | Western Digital Corporation |
| Manufacturer part number | WD201KFGX |
| Model number | WD201KFGX |
| DeviceDeal SKU | WD201KFGX |
| Product name | Red Pro WD201KFGX Hard Drive |
| Product line | Red Pro |
| Product type | Internal hard drive |
| Capacity | 20TB |
| Form factor | 3.5-inch |
| Drive type | Internal |
| Device support | Server; Storage System |
Performance and interface
| Drive interface | SATA |
| Drive interface standard | SATA/600 |
| Disk speed | 7200RPM |
| Buffer | 512MB |
| Recording technology | Conventional Magnetic Recording (CMR) |
NAS and durability
| NAS environment wording | 24x7 multi-user NAS; systems with up to 24 bays |
| Firmware technology | NASware 3.0 |
| Shock protection | Multi-axis shock sensor and dynamic fly height technology |
| Balance and vibration wording | 3D Active Balance Plus; vibration resistant |
| RAID wording | Error recovery controls for RAID and NAS environments |
| Testing wording | Extended thermal-cycle burn-in testing |
Physical details
| Length | 147mm |
| Width | 101.6mm |
| Height | 26.1mm |
| Weight, approximate | 689.5g |
Other supplied attributes
| Wireless LAN | No |
| Environmentally friendly | Yes |
| Manufacturer website address | http://www.westerndigital.com |
Warranty
| Manufacturer warranty | 5 years limited, from the supplied description |
| SKU | WD201KFGX |
| Barcode # | 718037894164 |
| Brand | Western Digital |
| Shipping Weight | 0.6800kg |
| Shipping Width | 0.003m |
| Shipping Height | 0.015m |
| Shipping Length | 0.010m |
five-year warranty
Manufacturer warranty
This product is covered by a five-year Western Digital manufacturer warranty.
DeviceDeal is an authorised reseller. Keep your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims remain subject to the manufacturers terms, eligibility requirements and product assessment.
