DR6030C, A3, 80PPM, 160IPM, DUPLEX SCANNER

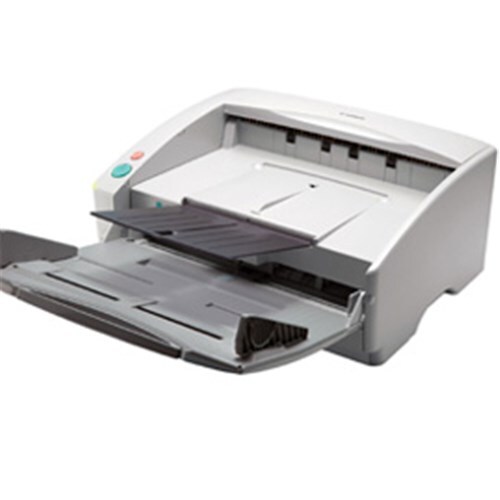

Canon imageFormula DR-6030C, A3 Scanner

Compact A3 scanner enables high-performance duplex scans of various document types at impeccable speeds in full-colour 60 ppm at 200 & 300dpi. Ultrasonic Double Feed Detection.

General Specifications:

Type - Desktop Sheet-fed scanner
Document Feeding - Automatic or manual sheet feeding
Document size - Width: 53 - 300 mm; Length: 70 - 3,000 mm
Document thickness and weight - U-turn path; Automatic feeding: 0.06 - 0.15 mm, 52 - 128 g/m2; Manual feeding: 0.05 - 0.2 mm, 42 - 157 g/m2
Business card size and thickness - Size: 53.9 x 85.5 mm; Thickness: 0.76 ± 0.08 mm
Feeding Capacity - 10 mm stack or 100 sheets of 80 g/m2
Dimensions (W x D x H) - Feed trays closed: 398.4 x 312 x 191.4 mm
Weight - Approx. 10.5 kgs

Scanner Specifications:

Scanning element - 3-line CMOS CIS
Light source - LED (red, green, and blue)
Scanning side - Simplex / Duplex
Scanning modes - Black and White, Error Diffusion, High-Speed Text Enhancement, Advanced Text Enhancement, Advanced Text Enhancement II, 256-level Greyscale, 24-bit Colour, Auto Colour Detection
Scanning resolutions - 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Scanning speed (A4/LTR, Portrait) - B&W : 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex); 300 dpi: 60 ppm (Simplex), 120 ipm (Duplex); Colour: 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex); 300 dpi: 60 ppm (Simplex), 84 ipm (Duplex)
Interface - SCSI-III / Hi-Speed USB 2.0
Scanner driver - ISIS/TWAIN

(DR6030C)

Model Name

DR-6030C

Type

Departmental Scanner

Document Feeding

Automatic or Manual

Document Size Width

2.1 - 11.8

Document Size Length

2.8 - 17
Long Doc. Mode: Up to 118

Thickness Automatic Feeding

(U-Turn Path): 14 - 32 lb. Bond

Thickness Manual Feeding

(U-Turn Path): 11 - 40 lb. Bond

Feeder Capacity

100 Sheets

Grayscale

8-bit

Color

24-bit

Scanning Element

Three-Line Contact Image Sensor (CMOS)

Light Source

RGB LED

Operating Modes

Simplex, Duplex, Color, Grayscale, Black and White, Text Enhancement (three types), Error Diffusion

Drop Out Color

Red, Green, Blue, Custom

Optical Resolution

600 dpi

Output Resolution

100/150/200/240/300/400/600 dpi

Scanning Speeds

Black And White

Simplex: Up to 80 ppm*
Duplex: Up to 160 ipm*

Grayscale

Simplex: Up to 80 ppm*
Duplex: Up to 160 ipm*

Color 24 Bit

Simplex: Up to 80 ppm*
Duplex: Up to 160 ipm*

Interface

Hi-Speed USB 2.0, SCSI-III

Scanner Drivers

ISIS/TWAIN for Windows®/XP/Windows Vista®/Windows 7 (32 bit/64 bit)

Dimensions

7.5 x 15.6 x 12.3

Weight

23 lb.

Power Consumption

46.5W or Less (Energy Saving Mode: 3.7W or less)
Suggested Daily Volume: 10,000 Scans

Other Features

Auto Color Detection, Auto Page Size Detection, Custom Color Dropout/Enhance Color, Deskew, Long Document Mode, Moire Reduction, MultiStream, Pre-Scan, Prevent Bleed-Through/Remove Background, Punch Hole Removal, Skip Blank Page, Text Orientation Recognition, Three Dimensional Color Correction, Ultrasonic Double-Feed Detection, User Preferences
Bundled Software: ISIS/TWAIN Drivers, Canon CapturePerfect, Kofax VirtualReScan, Nocson EasyConnect (available via download from the Nocson website)

Options

Flatbed Scanner Unit 101,Exchange Roller Kit, Barcode Module III, eCarePAK (Exchange Service) * Examples based on typical settings, rated in pages/images per minute with letter sized documents, landscape feeding direction, up to 200 dpi

SKU	DR6030C
Barcode #	13803128086
Brand	CANON
Shipping Weight	14.0000kg
Shipping Width	0.520m
Shipping Height	0.340m
Shipping Length	0.450m
Shipping Cubic	0.079560000m3
