Corsair XENEON EDGE 14.5" 2560x720 60Hz IPS 5-Point Touchscreen Display - CC-9011306-WW
Model # CC-9011306-WW
-
SKU: CC-9011306-WW
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
Corsair XENEON EDGE CC-9011306-WW 14.5" LCD Touchscreen
The Corsair XENEON EDGE is a compact 14.5-inch 32:9 touchscreen display designed as a versatile companion screen for PC setups. Its 2560 × 720 resolution, 60Hz refresh rate, five-point capacitive touch support, USB-C DisplayPort Alt Mode and HDMI connectivity allow it to display system information, applications, widgets, chat windows and other secondary-screen content.
A compact display for information, controls and widgets
The XENEON EDGE can operate as an additional Windows display or work with Corsair iCUE to create customised widget layouts for system monitoring, controls and other useful information.
14.5-inch 2560 × 720 display
The ultra-wide 32:9 screen provides a native resolution of 2560 × 720 at 60Hz, creating a compact space for dashboards, monitoring tools, applications, calendars, chat windows and other secondary content.
Five-point capacitive touchscreen
Five-point multi-touch capability provides direct interaction with compatible widgets, applications and onscreen controls using touch and multi-finger gestures.
USB-C and HDMI connectivity
The display supports USB-C DisplayPort Alt Mode and HDMI 2.0, providing flexible connection options for compatible computers and other video sources.
Corsair iCUE integration
With Corsair iCUE software, the XENEON EDGE can be configured with personalised widget layouts for system monitoring, shortcuts and compatible software controls.

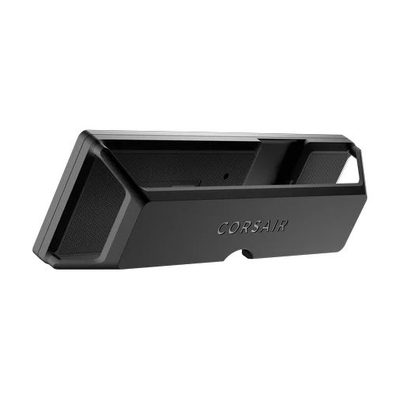

Magnetic mounting

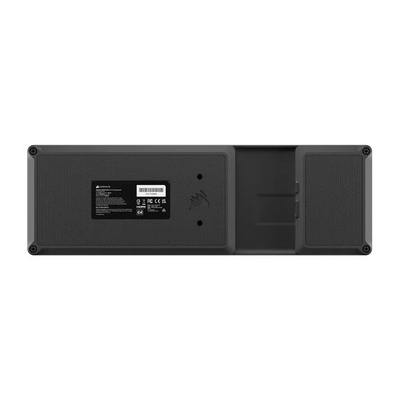

The rear of the display incorporates 14 built-in magnets, allowing the XENEON EDGE to attach to suitable steel surfaces such as compatible PC panels and PSU shrouds.

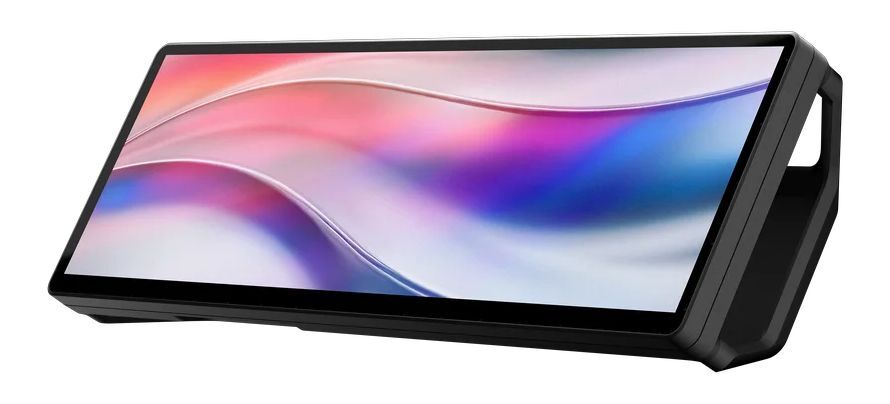

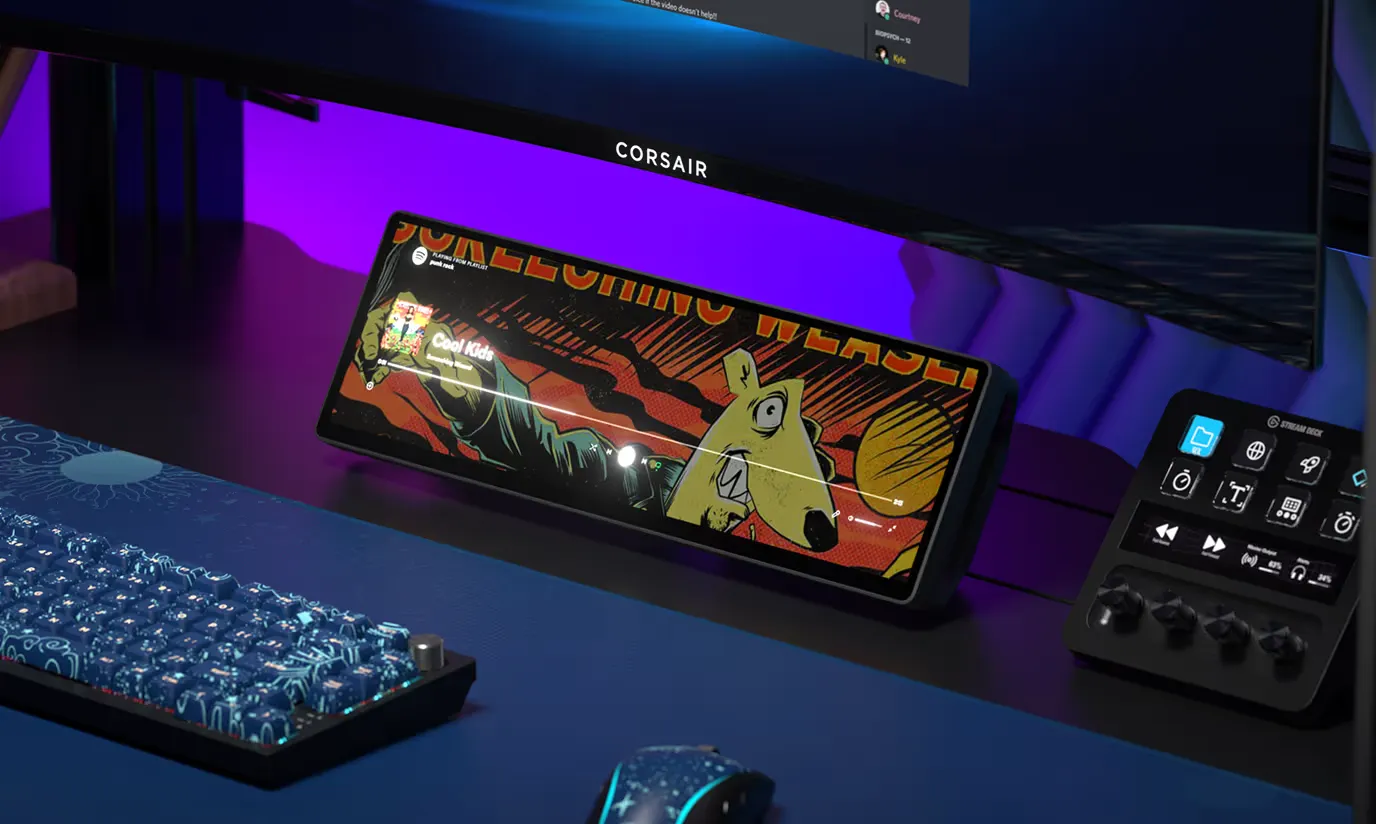

Detachable magnetic desk stand
An included magnetic stand allows the display to sit on a desk as an angled companion screen or touchscreen control panel without requiring permanent installation.

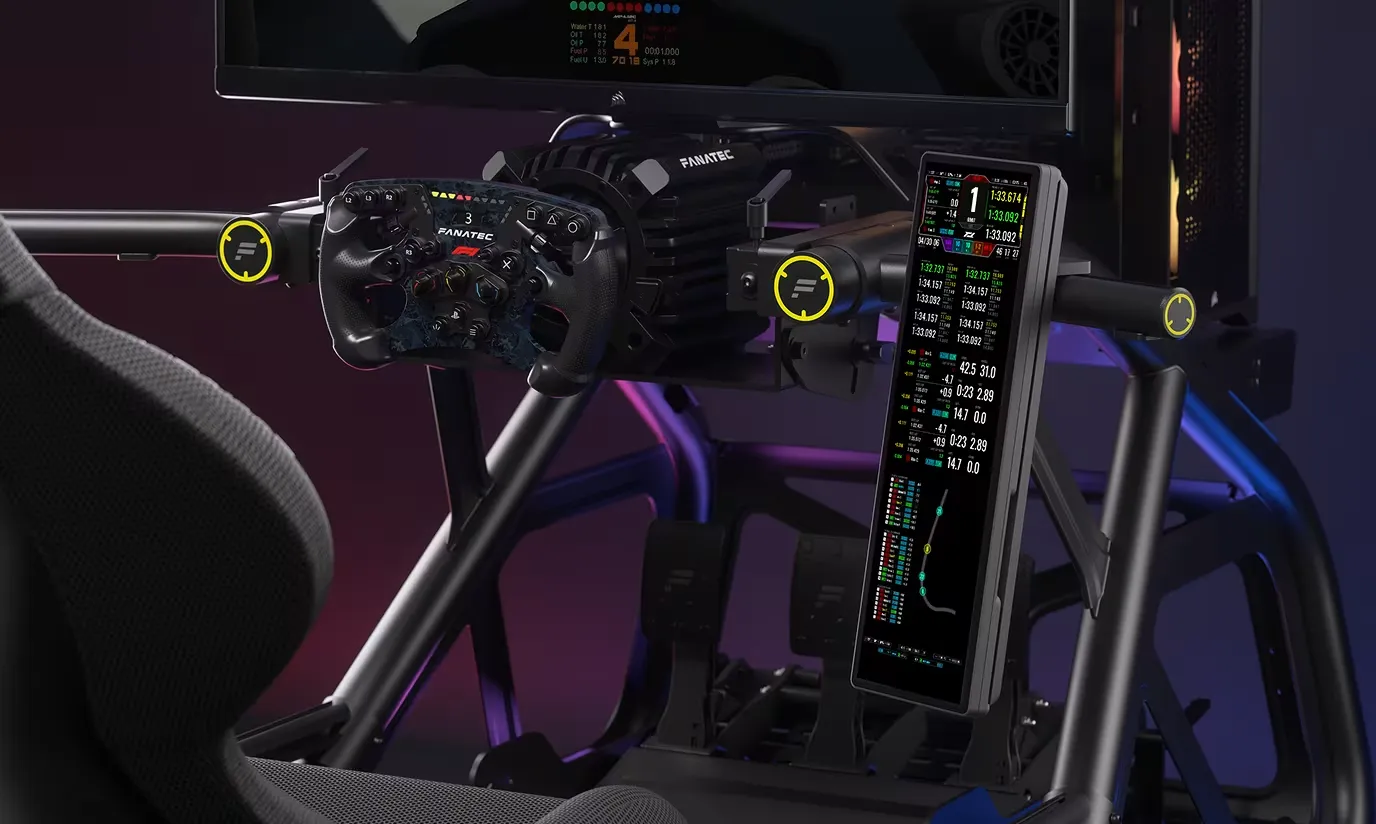

AV arm mounting points
Two 1/4-20 threaded mounting points provide compatibility with standard AV mounting hardware, including compatible camera-style arms and Elgato Multi-Mount systems.
Horizontal or vertical orientation

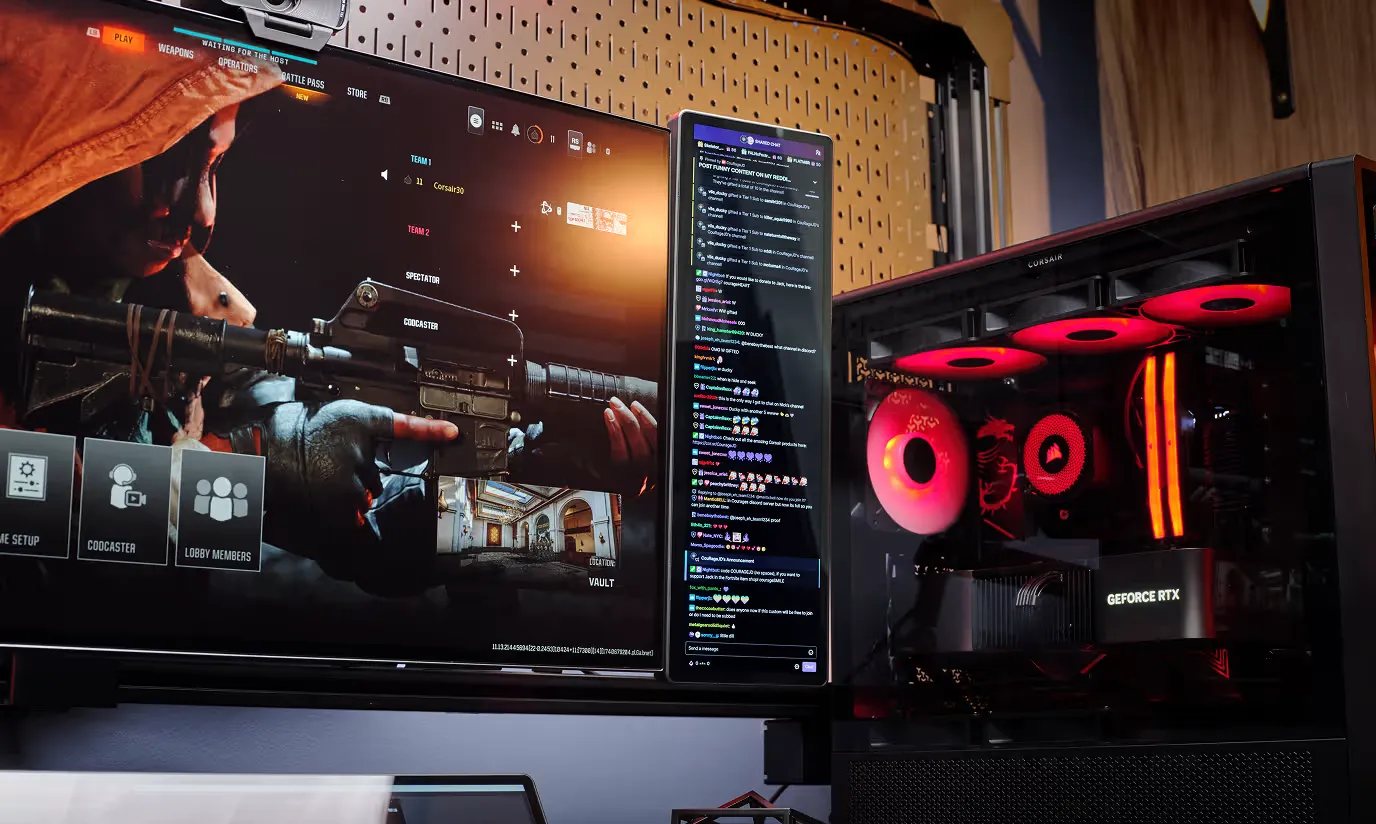

The XENEON EDGE can be positioned horizontally or vertically, helping it fit different PC builds, desktop layouts and mounting locations.
360mm radiator mounting compatibility

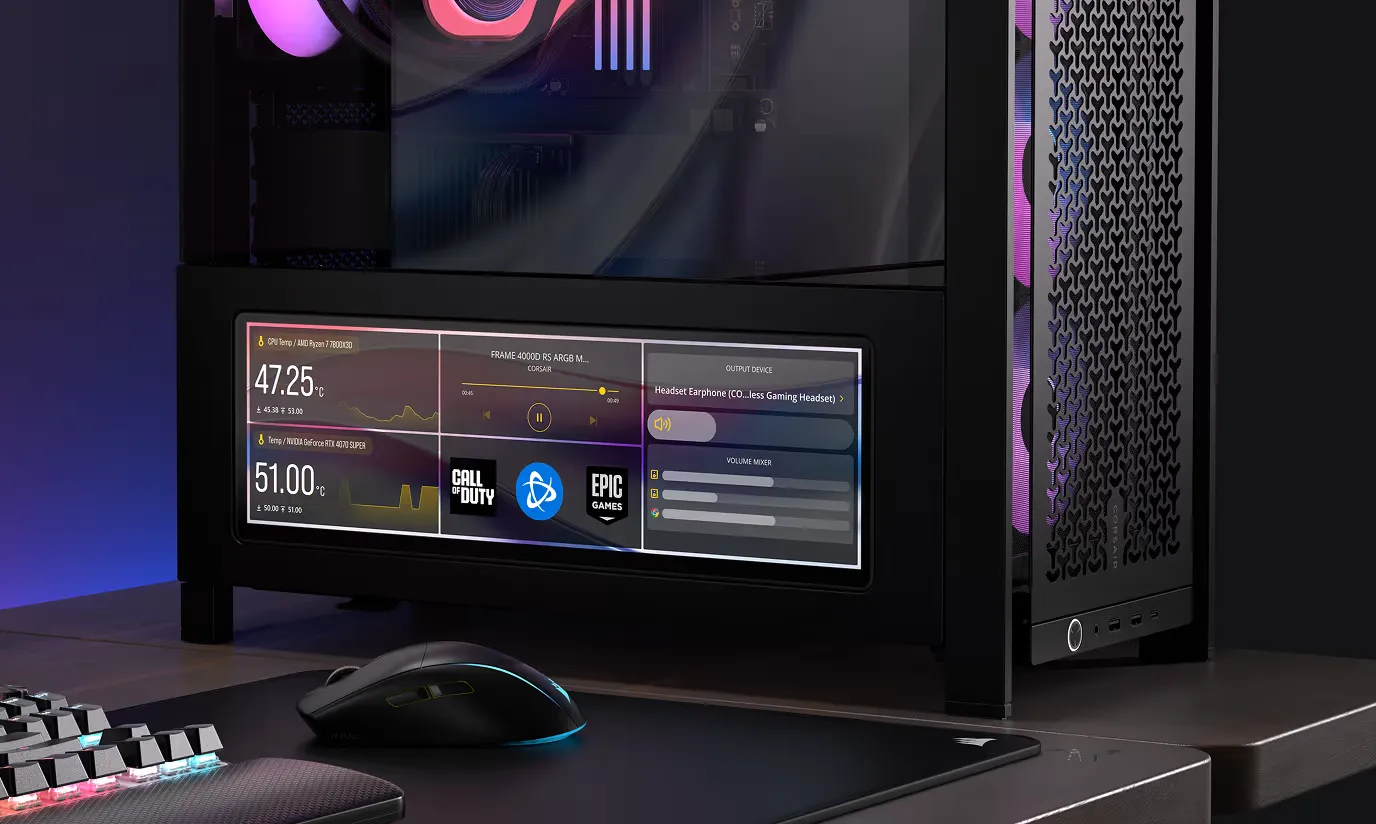

The display can be installed in a compatible 360mm radiator mounting position, allowing integration into PC cases with suitable three-by-120mm mounting locations.
No built-in battery required
The XENEON EDGE operates from external power rather than an internal battery. Compatible USB-C connections can provide both video and power through a single cable where supported by the connected device.
Compact touchscreen performance
The XENEON EDGE uses an AHVA display panel, which Corsair describes as IPS-equivalent technology. It supports 16.7 million colours with 8-bit RGB output and reaches up to 350cd/m² peak brightness.
Why choose the Corsair XENEON EDGE?
The XENEON EDGE is designed for users who want a compact secondary touchscreen that can be integrated into a PC, positioned on a desk or mounted to compatible hardware. Its ultra-wide 2560 × 720 format, touch controls, iCUE integration and multiple mounting methods make it suitable for system monitoring, widgets, application controls, streaming tools and additional desktop information.
Frequently asked questions
What resolution does the Corsair XENEON EDGE support?
The CC-9011306-WW has a native resolution of 2560 × 720 with a 32:9 aspect ratio and a 60Hz refresh rate.
Is the XENEON EDGE a touchscreen?
Yes. It uses a five-point capacitive multi-touch touchscreen for interaction with compatible applications, widgets and controls.
Can the XENEON EDGE be used as a normal Windows display?
Yes. Windows can detect the XENEON EDGE as an additional monitor, allowing applications and other desktop content to be displayed on it without requiring iCUE for basic monitor functionality.
Is Corsair iCUE required?
No. iCUE is not required for basic touchscreen monitor operation. Corsair iCUE is used for additional functionality such as customised widget layouts and integrated system monitoring controls.
What video connections are available?
The XENEON EDGE includes one HDMI 2.0 input and one USB-C connection supporting DisplayPort Alt Mode.
Does the XENEON EDGE have a battery?
No. The display requires external power and can receive power through USB-C. Compatible Thunderbolt or USB4 connections can provide video and power through one USB-C cable.
Can it be mounted inside a PC case?
Yes. Corsair provides 14 built-in rear magnets and compatibility with suitable 360mm radiator mounting positions. Installation depends on the available mounting space in the case.
Can it be placed on a desk?
Yes. A detachable magnetic desk stand is included for desktop use.
Can the display be mounted to an AV arm?
Yes. Two 1/4-20 threaded mounting points allow installation on compatible standard AV arms and mounting systems.
What warranty does the Corsair XENEON EDGE include?
Corsair lists a three-year warranty with a Zero Dead Pixel guarantee for the warranty period.
Not sure which monitor is right for you?
Compare monitor sizes, resolutions, refresh rates and connectivity options in the DeviceDeal Monitor Buying Guide.
View the Monitor Buying Guide(CC-9011306-WW)
Corsair XENEON EDGE CC-9011306-WW Technical Specifications
14.5-inch 2560 × 720 LCD touchscreen companion display
Display
| Screen Size | 14.5 inch |
| Native Resolution | 2560 × 720 |
| Maximum Resolution | 2560 × 720 |
| Aspect Ratio | 32:9 |
| Display Technology | AHVA |
| Display Surface | Touch |
| Touch Technology | 5-point capacitive multi-touch |
| Refresh Rate | 60Hz |
| Peak Brightness | 350cd/m² |
| Display Colours | 16.7 million |
| Colour Depth | 8-bit RGB |
| HDR Certification | None |
| Adaptive Sync | No |
Connectivity
| HDMI | 1 × HDMI 2.0 |
| USB-C Display Input | 1 × USB-C with DisplayPort Alt Mode |
| Single-Cable Operation | Video and power can be provided through USB-C from compatible Thunderbolt or USB4 devices |
Software and Usage
| Corsair iCUE | Supported |
| Basic Monitor Operation Without iCUE | Supported |
| Windows Additional Display Use | Supported |
| Custom iCUE Widget Layouts | Supported with Corsair iCUE |
| Elgato Virtual Stream Deck | Supported |
Mounting and Positioning
| Desktop Stand | Detachable magnetic desk stand included |
| Built-in Magnets | 14 |
| Magnetic Mounting | Suitable steel surfaces |
| AV Mounting Points | 2 × 1/4-20 threaded mounting points |
| 360mm Radiator Mount Position | Compatible with suitable three-by-120mm case mounting locations |
| Orientation | Horizontal or vertical |
| VESA Compatibility | Not specified as VESA compatible |
Power
| Built-in Battery | No |
| External Power | Required |
| USB-C Power | Supported |
| AC Adapter | Not applicable |
Physical Specifications
| Length | 372mm |
| Width | 120mm |
| Height | 22mm |
| Weight | 1.674kg |
| Material | Plastic |

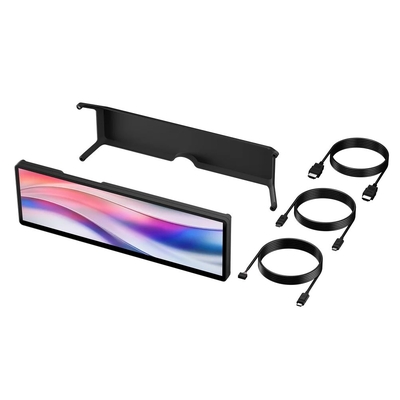

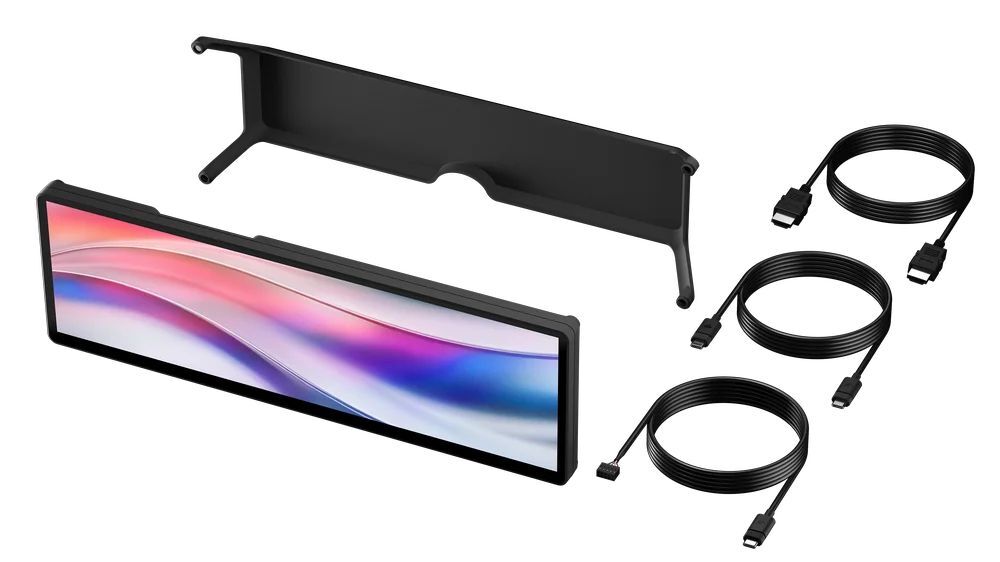

Package Contents
| Display | Corsair XENEON EDGE 14.5" LCD Touchscreen |
| Desk Stand | Magnetic desk stand |
| HDMI / DisplayPort Cable | 1.8m cable listed by Corsair |
| USB-C Cable | 1.8m 20Gbps USB-C cable |
| Internal Connection Cable | USB-C to 9-pin internal motherboard header cable, 70cm |
Warranty
| Manufacturer Warranty | 3 years |
| Zero Dead Pixel Guarantee | Included for the warranty period |
| SKU | CC-9011306-WW |
| Barcode # | 840440489887 |
| Brand | CORSAIR |
| Shipping Weight | 1.6740kg |
| Shipping Width | 0.022m |
| Shipping Height | 0.372m |
| Shipping Length | 0.120m |
Manufacturer Warranty : 2 years Manufacturer Warranty
