provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. The product includes a Remote Management Card. With the SNMP card and an IP address on the network interface, users have access to real-time monitoring of the ATS PDU. The power management web interface offers real-time remote monitoring of the ATS PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
  • Real-time Local/Remote Monitoring and Switching
  • Dual Inputs
  • Industrial-grade Metal Housing
  • Hot-swappable LCD Design
  • Support ENVIROSENSOR
  • PowerPanel Management Software
  • Cord Retention Tray
  • Controllable Receptacles with Power Sequencing
  • Quick Transfer Time 8-12 ms (Typical)
  • Digital Real-time Load Display
  • LED Status Indicator
  • User-upgradeable Firmware
  • Adjustable Mounting Brackets
  • IEC Receptacle Locking

(PDU32SWHVCEE18ATNET)

General

Type
Switched
Phase
Single Phase

Input

Dual Power Inputs
Yes
Nominal Input Voltage ( Vac )
200 ~ 240
Input Frequency ( Hz )
50 / 60
Maximum Input Current ( A )
32
Input Connector Type
IEC 60309 32A x 2 ?
Power Cord Length (ft.)
10
Power Cord Length (m.)
3.05

Output

Output Voltage ( V )
Depends on Input
Overload Protection
Circuit Breaker
Over Current Protection (Each Bank) ( A )
20
Outlets - # of Bank(s) ( Bank )
2
Outlet(s) - Total
18
Outlet(s) - Rear
18
Outlet Type
IEC C19 x 2 ?
IEC C13 x 16 ?
Remote Individual Outlet Control
Yes

Management & Communications

LCD Information Display
Input Voltage (Volts), Input Frequency (Hz), Current Level (Amps), Power Consumption (Kilowatts), Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version
Hot-swappable LCD Module
Yes
LCD Setting & Control
Preferred Source, Source Configuration, Load Configuration, Outlet Control, LCD Settings, Reset / Reboot
LED Indicators
Source Status, Load, Tx/Rx, Link, Outlet
Connectivity Port
RJ45 (for Environmental), RJ45 (for Serial)
Environmental Sensor Supported
SKU PDU32SWHVCEE18ATNET
Barcode # 4712856279276
Brand CYBERPOWER
Shipping Weight 8.3000kg
Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

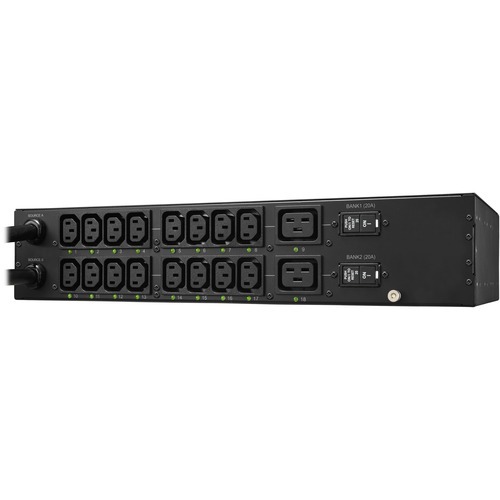

CyberPower PDU32SWHVCEE18ATNET PDU - Switched - IEC 60309 32A - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 32 A - 230 V AC Input - 230 V AC Output - 2U N

Model # PDU32SWHVCEE18ATNET

  • SKU: PDU32SWHVCEE18ATNET

$1,274.00
$1,619.00
SAVE $345.00 (21%)
Sold Out
Notify Me
