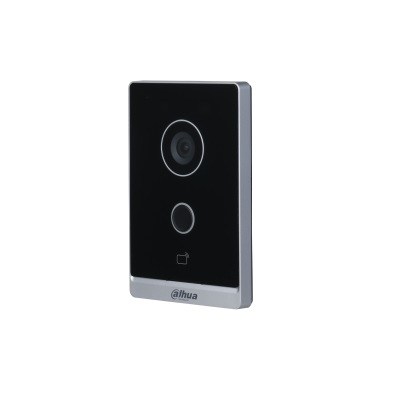

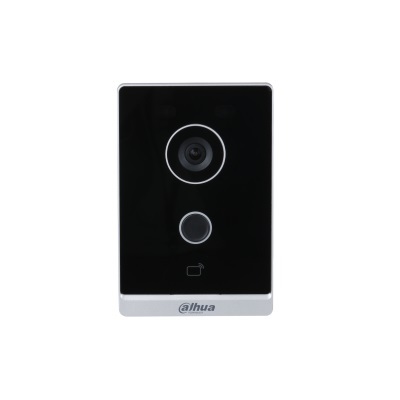

IP & Wi-Fi Villa Door Station

> Thin lightweight design

> –30 °C to + 60 °C (–22 °F to +140 °F) operating temperature

> IP65 (Silicone sealant is need. For details, see the quick start guide.)

> IR illumination and night vision

> Card unlock, app unlock, and indoor monitor unlock

> Two-way audio and voice call through app

> Card capacity: 10,000

> Tamper alarm

> Standard PoE

> Control two locks

> Supports wireless network

(DHI-VTO2211G-WP-S2)

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Button Type

Mechanical

Interoperability

ONVIF

Network Protocol

SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

Basic

Camera

1/2.8'' 2MP CMOS high definition, low illumination/WDR/color/IR

Field of View

Horizontal: 125°; vertical: 72°; diagonal: 142°

WDR

120 dB

Noise Reduction

3D noise reduction

Video Compression

H.264

Video Resolution

Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1

Video Frame Rate

PAL:25 fps NTSC:30 fps

Video Bit Rate

265 kbps–4 Mbps

Light Compensation

Auto IR

Day/Night

ICR auto switch

Audio Compression

G.711Mu; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression and cancellation/digital noise reduction

Audio Bit Rate

16 kHz, 16 bit

Function

Communication Mode

Full digital

Unlock Mode

Card/app/indoor monitor unlock

Card Type

IC card

Auto Snapshot

Auto snapshot can only be enabled on indoor monitors

Leave Videos

Yes (Insert an SD card into the indoor monitor)

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4GHz

Web Configuration

Yes

Performance

Card Reading Distance

3 cm–5 cm (1.18"–1.97")

Casing

PC+Acrylic

Capacity

Card

10,000

Port

RS-485

1

Electric Lock

1

Alarm Input

1

Alarm Output

1

Power Output

1

Exit Button

1

Door Status Detection

1

Lock Control

1, normally closed by default

Network

1 × 10 Mbps/100 Mbps network port

Storage

Micro SD Card, Max 64 GB (reserved for software)

Alarm

Tamper

Yes

General

Color

Black plate & silvery frames

Power Supply

12 VDC, 1 A

Standard PoE

Installation

Surface mount

Certifications

CE/FCC/UL

Accessory

Brackets and alarm ribbon cable

Dimensions

150 mm × 100 mm × 24.8 mm (5.91'' × 3.94'' × 0.98'')

Protection Grade

IP65 (Silicone sealant is needed, see the quick start guide.)

Operating Temperature

–30 °C to + 60 °C (–22 °F to +140 °F)

Operating Humidity

10%RH–90%RH (non-condensing)

Operating Environment

Outdoor

Operating Altitude

Beneath 3000 m (9842.51 ft)

Power Consumption

Standby≤1 W, working≤7 W

Gross Weight

490 g (1.08 lb)

SKU DHI-VTO2211G-WP-S2
Brand Dahua
Shipping Weight 1.0000kg

Manufacturer Warranty: 3 Years Manufacturer Warranty
