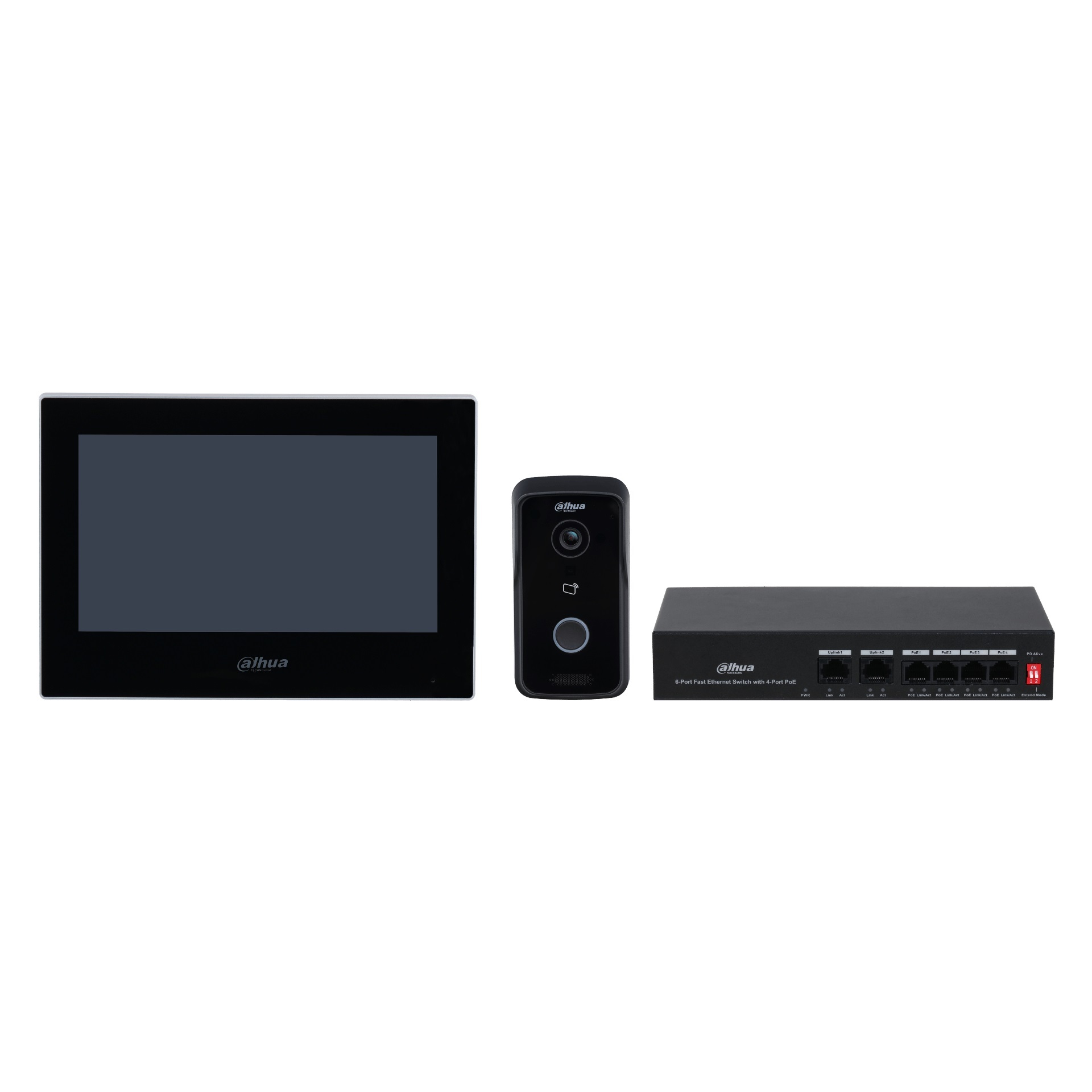

DAHUA IP DHI-KTP03 INTERCOM KIT, VTO2111D, VTH2621G, BLACK, SURFACE

IP Video Intercom KIT

IP Villa Door Station

> Megapixel image sensor

> Supports IR illumination and night vision.

> Two-way audio and voice call through app.

> Can be managed through the management platform; supports voice call between App and the door station.

> Card unlock, unlock on the indoor monitor, and remote unlock through the App.

> Supports IP65 (Silicone sealant is needed.

> For details, see the quick start guide.)

> Supports 10000 cards.

> Supports standard PoE power supply.

> Controls two locks.





IP Indoor Monitor

> 7" TFT capacitive touch screen, 1024 × 600.

> 6-channel alarm input and 1-channel alarm output.

> Standard PoE.

> Door station and IPC monitor.

> H.265 and H.264 video decoding.

> High performance & cost-effective

.



(DHI-KTP03)

selector-pcimg

Product Selector

Technical Specification

Model

DHI-VTO2111D-P-S3

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

Basic

Camera

1/2.8" 2 MP CMOS high definition, low illumination/DWDR/ color/IR

Field of View

H: 107°; V: 60°; D: 122°

Noise Reduction

3D NR

Video Compression

H.264; H.265

Video Resolution

Main stream: 720p, WVGA, D1, CIF
Sub stream: 1080p, WVGA, D1, QVGA, CIF

Video Frame Rate

PAL: 25 fps;
NTSC: 30 fps

Video Bit Rate

256 Kbps–8 Mbps

Light Compensation

Auto IR

Day/Night

Auto(ICR)/Color/B/W;Color/B/W

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 KHz, 16 bit

Function

Communication Mode

Full digital

Unlock Mode

Card; app; indoor monitor

Card Type

IC card

Leave Videos

Yes (SD card inserted in VTH is needed)

Web Configuration

Yes

Performance

Card Reading Distance

0 cm–4.5 cm (0"–1.77")

Issue Card Locally

Yes

Casing Material

PC + Acrylic

Capacity

Card Capacity

10000

Port

RS-485

1

Power Output

1 port, 12 V and 200 mA

Exit Button

1

Door Status Detection

1

Lock Control

1 port, normally closed by default

Network Port

1 × 10/100 Mbps network port (8-core white
ribbon cable)

Alarm

Tamper Alarm

Yes

General

Appearance Color

Black

Power Supply

12 VDC, 1 A
Standard PoE

Power Adapter

Optional

Installation

Surface Mount

Certifications

CE

Accessory

Included: Alarm power ribbon cable, rain cover, brackets

Product Dimensions

135.1 mm × 70.6 mm × 34.6 mm (5.32" × 2.78" × 1.36")

Protection

IP65 (silicone sealant is needed, see the quick start guide.) IK04 (for common use)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Altitude

Beneath 3000 m (9842.52 ft)

Operating Environment

Outdoor

Power Consumption

≤ 1 W (standby), ≤ 5 W (working)

Gross Weight

326 g (0.72 lb)

Anti-corrosion Level

Basic Protection



Model

DHI-VTH2621G-P

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX OS

Basic

Screen Type

Capacitive Touchscreen

Display Screen

7" TFT

Screen Resolution

1024 (H) × 600 (V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way voice talk

Audio Enhancement

Echo suppression

Audio Bit Rate

16 KHz; 16 bit

Function

Communication Mode

Full digital

Information Release

Receive and view text information released by the management center

Leave Videos

Yes (an SD card inserted in VTH is needed)

DND Mode

Do not disturb period can be set;Do not disturb mode can be set

Number of Extensions

Villa: 9:
Apartment: 4

Storage

Micro SD Card, Max 64 GB (reserved for software)

Port

Alarm Input

6

Alarm Output

1

Network Port

1 × 10/100 Mbps Ethernet port

Performance

Casing Material

PC + ABS

General

Appearance Color

Black

Power Supply

12 VDC, 1 A
Standard PoE

Installation

Surface Mount

Accessory

Bracket (included)
Alarm ribbon cable (included)

Product Dimensions

189.6 mm × 134.6 mm × 26.0 mm

(7.46" × 5.30" × 1.02")

Operating Temperature

–10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%–95% (RH), non-condensing

Power Consumption

Standby ≤ 2 W; working ≤ 6 W

Gross Weight

575 g (1.27 lb)

Storage Temperature

Basic Protection



Model

DH-PFS3006-4ET-36

System

Main Processor

Embedded Processor

Port

Network Port

4 × PoE ports with 10/100 Mbps Base-TX
2 uplink ports with 10/100 Mbps Base-TX

General

Appearance Color

Black

Certifications

CE; FCC

Product Dimensions

194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" × 1.38")

Gross Weight

0.56 kg (1.23 lb)

Anti-corrosion Level

Basic Protection

SKU DHI-KTP03
Brand Dahua
Shipping Weight 1.0000kg

Manufacturer Warranty: 3 Years Manufacturer Warranty
