Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 lux@F1.6 (Color, 30 IRE)
0.0002 lux@F1.6 (B/W, 30 IRE)

S/N Ratio

>56 dB

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

H: 102°; V: 54°; D: 121°

Iris Control

Fixed

Close Focus Distance

1.1 m (3.60 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m
(208.66 ft)

25.4 m
(83.33 ft)

12.7 m
(41.67 ft)

6.4 m

(21.00 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Smart Object Detection

Smart abandoned object; smart missing object

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+;Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520 @(1–25/30 fps )
sub stream: 704 × 576 (1–25 fps)/704 × 480@(1–30 fps)
third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 3.6M (2056 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–20480 kbps;
H.265: 3 kbps–20480 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto;Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B

Port

Audio Input

1 channel (3.5mm JACK port)

Audio Output

1 channel (3.5mm JACK port)

Alarm Input

2 channels in: 5mA 3V–5V DC

Alarm Output

2 channels out: max. 1,000 mA 30 VDC/max. 500 mA 50 VAC

Power

Power Supply

12 VDC/PoE (802.3af)

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 2.6 W (12 VDC); 3.7 W (PoE)
Max. (Intelligence + WDR): 3.9 W (12 VDC); 5.4 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67 (L3)

Structure

Casing

Metal

Product Dimensions

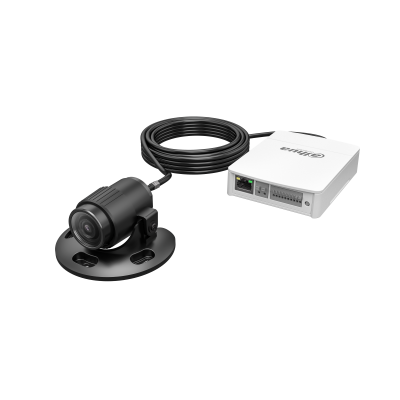

E1: 110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94")
L3: Ф30.5 mm × 55.4 mm (Ф1.20" × 2.18")

Net Weight

554 g (1.22 lb)

Gross Weight

724 g (1.60 lb)
