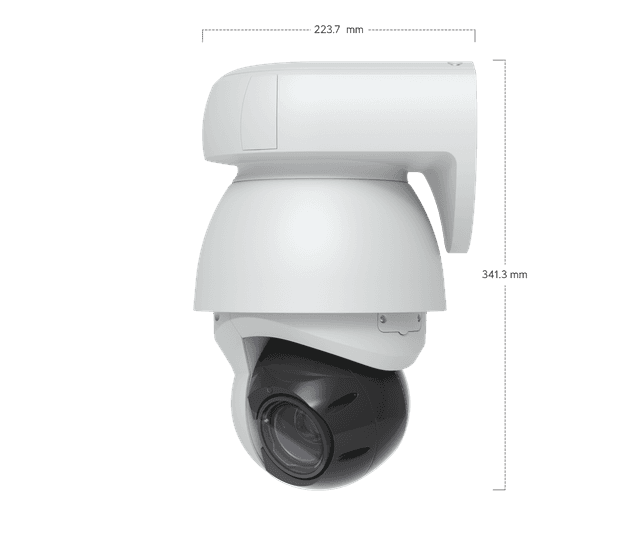

Dimensions

207 x 223.7 x 341.3 mm (8.2 x 8.8 x 13.4")

IR Night Vision

100 m (328 ft)

Zoom Mode

22x Optical

Face Recognition

✓

License Plate Recognition

✓

Smart Detections (People, Vehicles, Animals)

✓

Resolution

4K

Field of View

H: 3 to 64°, V: 2 to 37°

Pan-Tilt Range

Pan: 360° (Endless) Tilt: 120°

Weatherproofing

IP66

Mounting

Wall, Pole mount, Desk stand (Included)

Performance

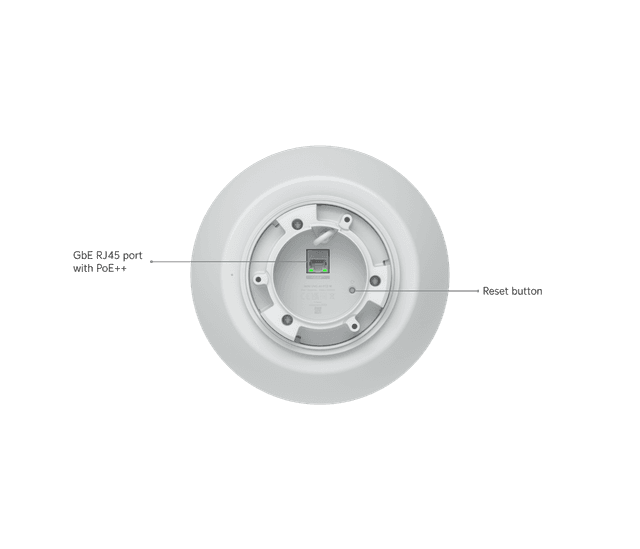

Networking Interface

GbE RJ45 port

Video

Image Settings

Color, brightness, sharpness, contrast white balance, exposure control 2DNR, 3DNR, NR by motion masking, text overlay

Max. Frame Rate

30 FPS

Resolution

8MP 3840 x 2160 (16:9)

Optics

Sensor

1/1.8" 8MP

Lens

22x optical zoom lens

Night Mode

Built-in IR LED illumination and IR cut filter

Hardware

Max. Power Consumption

51W

Supported Voltage Range

42.5—57V DC

Power Method

PoE++

Processor

Quad-core Arm® Cortex®-A53 based chip

Weight

Without mount: 3.8 kg (8.4 lb) Wall mount (Pedant): 3 kg (6.6 lb) Table stand: 150 g (5.3 oz) Pole mount: 320 g (11.3 oz)

Enclosure Material

Aluminum alloy, polycarbonate

Mount Material

Powder-coated aluminum alloy

Expansion Slot

MicroSD card

Button

(1) Factory-reset

Ambient Operating Temperature

-40 to 50º C (-40 to 122º F)

Ambient Operating Humidity

0 to 90% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC

Manufacturer Warranty : 1 Year Manufacturer Warranty
