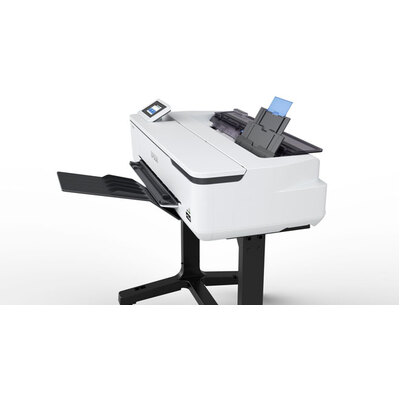

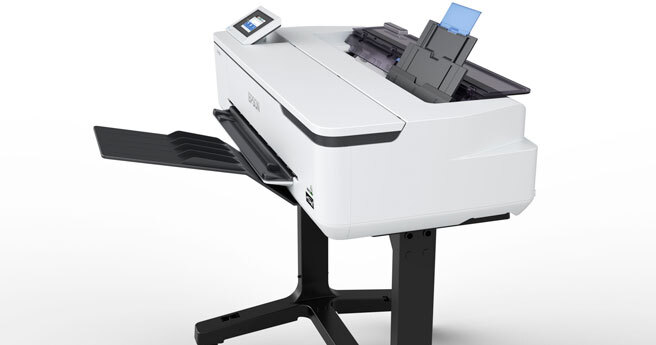

Epson SureColor T3160 24-inch large-format printer

24-inch technical printing with stand and basket

The Epson SureColor T3160 is a 24-inch floor-standing large-format printer for CAD, AEC, GIS, POS, mapping, poster and educational applications, with cut-sheet and roll-media support.

A1 print speed34 seconds on plain paper

ResolutionUp to 2400 x 1200dpi

Ink4-colour UltraChrome XD2 pigment

ConnectivityUSB 3.0, Ethernet and WiFi

Epson SureColor T3160 24-inch large-format printer

Technical, mapping and poster output

The supplied datasheet positions the T3160 for CAD, AEC, GIS, POS, mapping, poster and educational applications. It produces an A1 print on plain paper in 34 seconds at the listed maximum speed.

PrecisionCore and pigment ink

A PrecisionCore TFP printhead uses four-colour UltraChrome XD2 aqueous pigment ink. The supplied datasheet lists scratch- and moisture-resistant prints with fine lines and solid fills.

Front-loading cut sheets and rolls

Cut sheets and rolls load from the front. The 24-inch model supports roll widths from 329mm to 610mm and single sheets from 210mm to 610mm, with a 50-sheet A4/A3 automatic sheet feeder listed.

Technical specifications

Product details
Brand	Epson
Model	SureColor T3160
SKU	C11CF11412
Configuration	Floor-standing printer with stand and basket
Maximum listed width	24 inches / 610mm
Print technology and performance
Printhead	PrecisionCore TFP
Maximum printing resolution	2400 x 1200dpi
Ink type	UltraChrome XD2 aqueous pigment ink
Colours	Magenta, Yellow, Cyan and Black
Supported cartridge sizes	CMY 26ml or 50ml; Black 50ml or 80ml; mixed sizes supported
Maximum printing speed	34 seconds for A1 on plain paper
Nozzle configuration	800 nozzles per colour
Minimum droplet size	4.0pl
Paper handling
Paper loading	Cut sheets and rolls load from the front
Roll-media width	329mm to 610mm
Single-sheet width	210mm to 610mm
Maximum roll weight	3kg
Roll core and diameter	2-inch core; maximum 110mm diameter
Paper thickness	Roll: 0.05mm to 0.21mm; cut sheet: 0.12mm to 0.27mm
Automatic sheet feeder	50 sheets for A4/A3
Connectivity and operation
Connectivity	USB 3.0, 1000/100/10Base-T Ethernet, WiFi, WiFi Direct and AirPrint
Memory	1GB physical memory
Emulations	HP-GL/2 and HP-RTL
Dimensions	970 x 696 x 913mm (W x D x H)
Power usage	28W operating; 8W standby; 1.6W sleep
Acoustic noise	Approx. 49dB(A)

Frequently asked questions

How fast does the Epson SureColor T3160 produce an A1 print?

The supplied datasheet lists 34 seconds for A1 output on plain paper at maximum speed.

What media widths does the 24-inch T3160 support?

Roll media from 329mm to 610mm and single sheets from 210mm to 610mm are listed.

Which connections are provided?

USB 3.0, Gigabit Ethernet, WiFi, WiFi Direct and AirPrint are listed.
