View PDF BrochureHP DesignJet T1700 PostScript 44-inch Large Format Colour Inkjet Printer (1VD87A)
Model # 1VD87A
-
SKU: 1VD87A
- Pick Up Available
- Australian Warranty
- Checkout Securely
Large-format colour printing for detailed CAD and GIS output

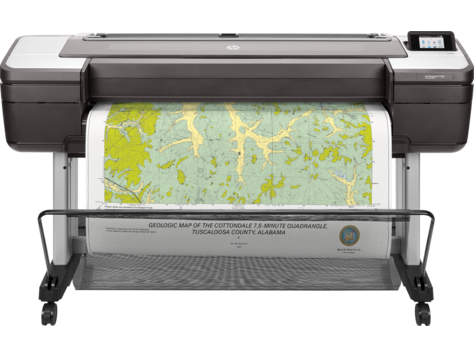

The HP DesignJet T1700 PostScript is a 44-inch large-format colour inkjet printer designed for CAD and GIS colour reproduction, with sheet and roll handling, six inks and wired network connectivity.
Cartridges with non-HP chips might not work today or in the future.
Media and colour capability
The six-cartridge system uses cyan, magenta, yellow, photo black, matte black and grey inks. Finished output handling includes sheet feed, roll feed and an automatic horizontal cutter, with supported media widths from 11 to 44 inches.
PostScript workflow and connectivity
Listed print languages include Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF and CALS G4. Standard connectivity includes 10/100/1000Base-T Ethernet and a USB Type-A host port.
Technical specifications
| Performance and storage | |
|---|---|
| Model size | 44 inches |
| Line drawing speed | 116 pages per hour in economode on D plain paper; 26 seconds per D page |
| Memory | 128GB virtual |
| Internal storage | 500GB self-encrypting |
| Best colour print quality | Up to 2400 x 1200 optimised dpi |
| Print technology | HP Thermal Inkjet |
| Line accuracy | ±0.1% |
| Maximum black optical density | 2.15 maximum black optical density (6 L*min) |
| Ink and media | |
| Print cartridges | 6: cyan, magenta, yellow, photo black, matte black and grey |
| Ink types | Dye-based cyan, magenta, yellow, photo black and grey; pigment-based matte black |
| Output handling | Sheet feed, roll feed and automatic horizontal cutter |
| Media types | Bond and coated paper; technical paper; clear and matte film; photographic paper; backlit media; self-adhesive polypropylene and vinyl |
| Standard media sizes | 11 to 44 inches (279 to 1118mm), sheets and rolls |
| Roll external diameter | 5.3 inches (135mm) |
| Media thickness | Up to 31.5 mil |
| Non-printable area (cut sheet) | 0.12 x 0.67 x 0.12 x 0.12 inches (3 x 17 x 3 x 3mm) |
| Connectivity and languages | |
| Standard connectivity | Ethernet, Fast Ethernet, Gigabit Ethernet and 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port |
| HP ePrint | Yes |
| Print languages | Adobe PostScript 3; Adobe PDF 1.7 ext 3; HP-GL/2; TIFF; JPEG; URF; CALS G4 |
| Software included | HP Click; HP Utility for Mac and Windows; HP WebJet Admin; HP Embedded Web Server; HP JetAdvantage Security Manager; HP Partner Link; HP MPS |
| Power and physical | |
| Power consumption | Less than 100W printing; less than 24W ready; less than 0.3W sleep, or less than 6.5W with embedded Digital Front End; 0.1W off |
| Operating temperature | 5 to 40°C |
| Minimum dimensions (W x D x H) | 1802 x 695 x 998mm |
| Weight | Single-roll: 72kg; dual-roll: 74kg |
| Warranty shown | 90-day limited hardware warranty |
Frequently asked questions
What is the maximum media width?
The supplied specification lists sheet and roll media from 11 to 44 inches (279 to 1118mm).
What connectivity does the HP DesignJet T1700 provide?
Standard connectivity includes 10/100/1000Base-T Ethernet and a USB Type-A host port.
What does the dynamic security notice mean?
The supplied notice states that cartridges with non-HP chips might not work today or in the future.
(1VD87A)
| Model size | 44 in |
|---|---|
| Print speed line drawing (economode, D plain paper) | 116 pages per hour2 |
| Print speed | 116 D/hr, 26 sec/D2 |
| Memory | 128 GB (virtual)1 |
| Internal Storage | 500 GB self-encrypting |
| Print quality color (best) | Up to 2400 x 1200 optimized dpi |
| Print technology | HP Thermal Inkjet |
| Number of print cartridges | 6 (cyan, magenta, yellow, photo black, matte black, gray) |
| Ink types | Dye-based (C, M, Y, PK, G) pigment-based (MK) |
| Non-printable area (cut-sheet) | 0.12 x 0.67 x 0.12 x 0.12 in (3 x 17 x 3 x 3 mm) |
| Line accuracy | ±0.1%4 |
| Maximum optical density (black) | 2.15 maximum black optical density (6 L*min) |
| Finished output handling | Sheet feed, roll feed, automatic horizontal cutter |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl) |
| Media sizes standard (sheets, rolls) | 11 to 44-in (279 to 1118-mm) |
| Roll external diameter | 5.3 in (135 mm) |
| Media thickness | Up to 31.5 mil |
| HP ePrint capability | Yes |
| Connectivity, standard | Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab) USB Type-A host port |
| Print languages | Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4 |
| Power consumption | < 100 W (printing) < 24 W (ready) < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep) 0.1 W (off) |
| Operating temperature range | 41 to 104ºF (5 to 40ºC) |
| Minimum dimensions (W x D x H) | 70.9 x 27.4 x 39.3 in (1802 x 695 x 998 mm) |
| Weight | Single-roll: 159 lb (72 kg), dual-roll: 163 lb (74 kg) |
| Warranty | 90-day limited hardware warranty |
| Software included | HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS |
| SKU | 1VD87A |
| Barcode # | 191628121960 |
| Brand | HP |
| Shipping Weight | 126.0000kg |
| Shipping Width | 0.001m |
| Shipping Height | 0.002m |
| Shipping Length | 0.001m |
