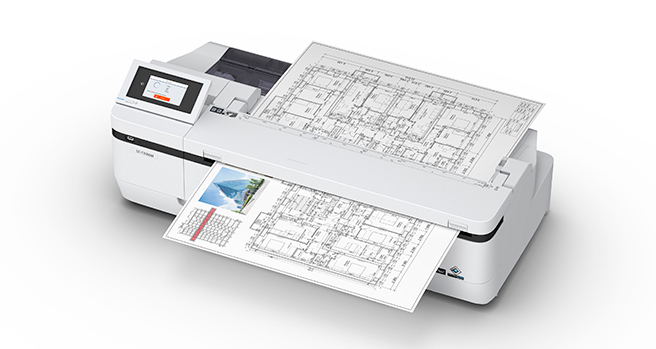

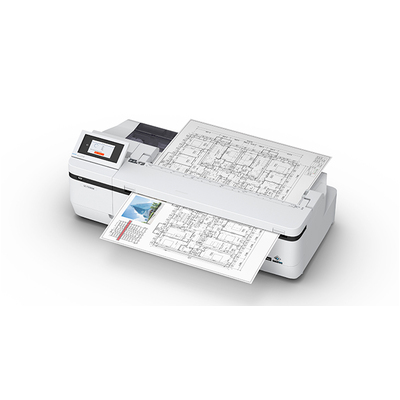

Epson SureColor T3160M 24-inch large-format MFP

24-inch large-format colour printing and scanning

The Epson SureColor T3160M is a 24-inch large-format multifunction printer and scanner with A1 colour output, front-loaded roll and cut-sheet media, WiFi and Ethernet.

Maximum media width24 inches / 610mm

A1 print speed34 seconds on plain paper

ResolutionUp to 2400 x 1200dpi

ConnectivityUSB, Ethernet, WiFi and AirPrint

A1 large-format colour output

The supplied DeviceDeal specifications list A1 colour inkjet printing at up to 2400 x 1200dpi, with an A1 print produced in 34 seconds on plain paper.

Front-loaded rolls and sheets

Cut sheets and rolls load from the front. Roll media from 329mm to 610mm and single sheets from 148mm to 610mm are supported, with media thickness up to 0.21mm listed.

Floor-standing configuration

The supplied package contents identify the T3160M configuration as a printer with stand and basket. USB, Ethernet, WiFi and AirPrint connectivity are listed.

Technical specifications

Product details
Brand	Epson
Model	SureColor T3160M
SKU	C11CJ36401
Product type	24-inch large-format multifunction printer and scanner
Maximum paper size	A1
Output	Colour
Print and ink
Printing technology	Inkjet
Print speed	34 seconds per A1 sheet on plain paper
Print resolution	2400 x 1200dpi
Nozzle configuration	800 nozzles per colour
Minimum droplet size	4.0pl
Ink	UltraChrome XD2 aqueous pigment ink
Refill sizes	Black 50ml or 80ml; Cyan, Magenta and Yellow 26ml or 50ml
Media handling and connectivity
Paper loading	Cut sheets and rolls load from the front
Roll-media width	329mm to 610mm
Single-sheet width	148mm to 610mm
Maximum media thickness	0.21mm
Roll core	2-inch core; maximum 110mm diameter
Connectivity	USB, Ethernet, WiFi and AirPrint
Physical details
Dimensions	970 x 696 x 974mm
Weight	33.4kg
Included configuration	Printer with stand and basket

Frequently asked questions

What is the maximum media width of the Epson T3160M?

The supplied specifications list roll and single-sheet media up to 610mm wide.

How fast does it print an A1 sheet?

The supplied DeviceDeal page lists 34 seconds per A1 sheet on plain paper.

Which connections are listed?

USB, Ethernet, WiFi and AirPrint are listed.

(C11CJ36401)

Specification:

General

Brand: Epson

Manufacturer Warranty: 1 year

Model Number: T3160M

Paper Size: A1

Printing Output Type: Colour

Printing Technology: Ink-Jet

Product Dimensions: 970x696x974mm

Product Weight: 33.4 kg

USB Cable Included: no

Connectivity

Interface: USB, Ethernet, Wi-Fi & Air Print

Printing Software Capabilities: LFP Print Plug-In for MS-Office

Media Handling

Paper Loading: Cut-sheet and rolls load from the front

Media Thickness: Up to 0.21 mm

Media Width: Roll: 329 mm to 610 mm max roll weight 4.2 kg Single sheet: 148 mm to 610 mm

Medica Core: 2" core, max 110 mm diameter

Printer Performance

Print Speed: 34 secs /A1 on plain paper

Print Resolution: 2400x1200 dpi

Number Of Nozzles: 800 nozzles per colour

Variable Drop Size: Yes, 4.0 pl minimum

Refilling

Refills: B 50/80 ml, CMY 26/50 ml

Ink Type: UltraChrome XD2 aqueous pigment ink

Package Contents

T3160M Printer With Stand And Basket: 1

Starter Cartridges: 26 ml CMY, 50 ml B

Setup Guide & Software Cd: 1

Maintenance Box: 1

Power Cord: 1
