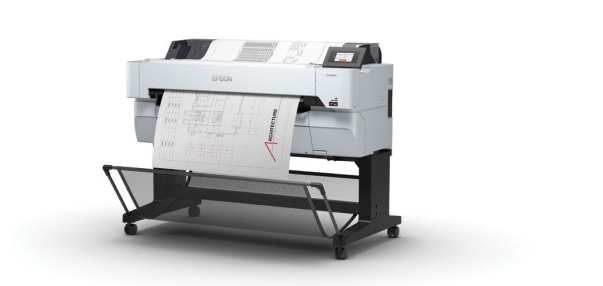

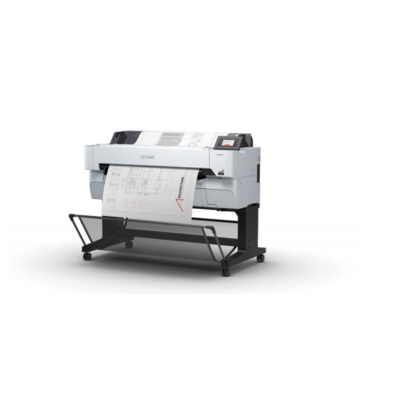

Epson SureColor T5460M 36-inch technical and CAD MFP

36-inch large-format printing, scanning and copying

The Epson SureColor T5460M combines 36-inch large-format printing with sheet pass-through CIS scanning and copying for technical and CAD documents.

Maximum print width36 inches / 914mm

CAD A1 print22 seconds

Scan resolutionUp to 600dpi

ConnectivityUSB 3.0, Ethernet and WiFi

Print, scan and copy in one system

A PrecisionCore TFP printhead delivers up to 2400 x 1200dpi output. The integrated Contact Image Sensor scanner supports a maximum resolution of 600dpi, with copy scaling from 25% to 400% and quantities from 1 to 99 sheets.

Wide media support

The top-loaded roll system supports media from 254mm to 914mm wide on 2-inch cores, with 3-inch cores listed for plain paper. Single sheets from A4 to A0/B1 are supported, and the stand incorporates a media basket.

Touchscreen and connected operation

A 4.3-inch colour touchscreen is supplied with USB 3.0, Gigabit Ethernet, WiFi, WiFi Direct and AirPrint. A front-panel USB slot supports direct JPEG and TIFF printing from a thumb drive.

Technical specifications

Product details
Brand	Epson
Model	SureColor T5460M
SKU	C11CH65401
Product type	36-inch technical and CAD multifunction printer
Maximum print width	36 inches / 914mm
Print, scan and copy
Print head	PrecisionCore TFP with VSDT and Auto Head Alignment
Maximum print resolution	2400 x 1200dpi
Minimum ink droplet size	4.0pl
CAD A1 print time	22 seconds on the listed test image and settings
Scan technology	Contact Image Sensor with RGB filters
Maximum scan resolution	600dpi
Maximum scan speed	11.43cm/s or 4.5ips colour; 19.05cm/s or 7.5ips mono
Maximum copy speed	38 seconds per A1 sheet mono; 44 seconds per A1 sheet colour
Scan formats	JPEG, PDF and TIFF
Ink and media
Ink	UltraChrome XD2 all-pigment aqueous ink
Colours	Cyan, Magenta, Yellow and Black
Cartridge sizes	110ml and 350ml
Roll media	254mm to 914mm wide; 0.08mm to 0.3mm thick; maximum 12kg
Sheet media	A4 to A0/B1 single sheets; 0.08mm to 0.3mm thick
Auto cutter	Built-in rotary type
Operation and physical details
Control panel	4.3-inch colour LCD touchscreen
Connectivity	USB 3.0, 10/100/1000 Ethernet, WiFi, WiFi Direct and AirPrint
Memory	1GB RAM plus 8GB Micro SD card
Dimensions	1385 x 750 x 1070mm with closed basket
Weight	89kg without ink, media or options
Power consumption	38W operating; 13W standby; 1.3W sleep

Frequently asked questions

What is the maximum print width of the Epson T5460M?

The supplied DeviceDeal specifications list a maximum print width of 36 inches or 914mm.

Can the T5460M scan and copy large documents?

Yes. It includes sheet pass-through CIS scanning and copying, with media up to 914mm wide listed.

Which connections are provided?

USB 3.0, Gigabit Ethernet, WiFi, WiFi Direct and AirPrint are listed.

(C11CH65401)

TECHNICAL & CAD - PRINTER
PRODUCT NAME	SureColor T5460M - 36" MFP

SIZE
Max Print Width	36 inch wide (914mm)

PRINT TECHNOLOGY
Print Head	PrecisionCore TFP with VSDT and Auto Head Alignment
Print Modes	Uni & Bi-directional
Nozzle Configuration	800 per colour
Maximum Resolution	2400dpi x 1200dpi
Minimum Ink Droplet Size	4.0pl

SCAN TECHNOLOGY
Technology	Contact Image Sensor (CIS) with RGB filters
Light Source	Dual Low Angle
Feed System	Sheet pass-through
Maximum Resolution	600dpi

INK SYSTEM
Family	Epson Ultrachrome^® XD2
Type	All-Pigment Aqueous
Colours	C+M+Y+K
Cartridges	CMYK 110ml CMYK 350ml

PRINT PERFORMANCE (per Sheet)
CAD A1	22sec
Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type.

SCAN PERFORMANCE
Max Scan Speed	11.43cm/s or 4.5 ips (Colour) 19.05 cm/s or 7.5 ips (Mono)
Max Copy Speed	38s per A1 sheet mono 44s per A1 sheet colour
Scan speeds represent feed times only for a standard CAD image on plain paper @200dpi in TIFF format and are provided for comparison purposes only. Additional processing will be required with the total time taken for completion dependent on the media & image type, media orientation, image processing, image scaling and other factors. Copy times represent the total scan, processing and print time for the image shown scanned long edge and printed on plain paper. Individual results will vary depending on media & image type, media orientation, image processing, image scaling and other factors.

MEDIA SUPPORT
Roll Format	Single roll top loaded spindle, 2" core, 3” core for plain paper, 0.08 to 0.3mm thick, 254-914mm wide, 170mm max diameter, max weight 12kg
Sheet Format	Top loaded A4-A0/B1 single sheets, 279.4 to 1,580 mm length, 0.08-0.3mm thick
Borderless Printing	Supported Media Types: A1 (594mm) and A1+ (610mm), 700mm, B1 (728mm), A0 (841mm), A0+ (914mm) Cut Sheet only borderless to the left and right of the sheet
Auto Cutter	Inbuilt rotary type
Manual Double Sided Printing	Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
Output	Printer Stand incorporates a media basket

SCAN & COPY SUPPORT
Media Handling	Single Sheet Front Loading
Media Types	Plain, Matte, Recycled, Glossy paper, Film, Newspaper & Tracing Paper 0.064-0.8mm or 0.55mm (with optional carrier sheet which is used for Film, Thin paper or fragile materials) thick, 148mm-914mm wide, 148-30480mm long
Document Types	Line & Text, Blueprint & Blueprint inverted, Tracing Paper & Poster
Scan To Formats	JPEG, PDF & TIFF
Copy Function	1-99 Sheets 25-400% scaling, Auto Fit

OPERATION
Control Panel	4.3" Colour LCD touch screen
Control Code	ESC/P2, ESC/P Raster, HP/GL/2 & HP RTL* 1
Connectivity	USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print
Included Software	Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only)
Software via web download	HDI driver, CopyFactory, EpsonNet SetupManager, Epson Device Admin, Epson Edge Dashboard, Epson Print Automate, LFP Accounting tool
Roll Management System (Roll Format)	Barcode Roll Media Management system helps keep track of the type of media and how many metres is left on the roll
USB Input	Front panel USB slot enables JPEG and TIFF files to be printed direct from a thumb drive
Compatibility	Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
Memory	1GB RAM + 8GB Micro SD Card
Physical (WxDxH)	1385 × 750 × 1070 mm, 89kg (floor standing, closed basket, no ink, media or options) 1385 × 966 × 1070 mm, 89kg (floor standing, open basket, no ink, media or options)
ARM 64 Processor Compatibility	IMPORTANT NOTICE: A number of printer drivers have been found to have compatibility issues with Windows PCs that feature an ARM 64 processor. Epson is currently reviewing our current and recent model ranges with a view to issuing updates. Unfortunately, although we will roll these out as quickly as we can the process is not expected to be completed until early 2026. In the interim we do not recommend operation with this type of equipment.

ENVIRONMENT
Operational Temp	10° to 35° C
Operational Humidity	20 to 80% (40 to 60% is recommended for no condensation)
Power Supply	100 - 240 V AC, 50/60 Hz
Power Consumption	38W Operating, 13W Standby, 1.3W Sleep
Operating Noise	50dB
Recommended Install Space (WxHxD)	Floor-standing: 1385 × 750 × 1070 mm

SHIPPING INFO
Packaging (WxDxH)	Floor standing: 1548 ｘ 920 ｘ 1100 mm, 122Kg
What’s in the Box	Printer, Power Cord, set of 110ml ink cartridges, 1 x Maintenance Tank, Setup Guide & Warranty Info. Driver, user software & manuals on CD.
Delivery & Install	Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations.
Service & Support	Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty terms and travelling charges may apply for equipment located outside major metro areas.

CONFIGURATION OPTIONS
C11CH65401	Floor Standing with 1Yr On-Site Warranty
SCT5460M3YR	Floor Standing with 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCT5460M5YR	Floor Standing with 2 x 2Yr CoverPlus On-Site Service Pack (total 5 yrs cover)**

OPTIONAL ACCESSORIES
C12C933301	Additional Roll Feed Spindle for T5460 (36")
C12C935381	A0 Document Carrier Sheet
B12B819291	Scanner Cleaning Kit
1YWTSCT5460M	1 Yrs Epson CoverPlus On-Site Printer Service Pack**
2YWTSCT5460M	2 Yrs Epson CoverPlus On-Site Printer Service Pack**
** Epson CoverPlus Service Packs enable cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia or Epson New Zealand. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of Warranty and CoverPlus. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification, with non-genuine Epson consumables, and consumables not designed for use with the particular printer model. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson or one of our Authorised Large Format Resellers if you have questions or concerns.
