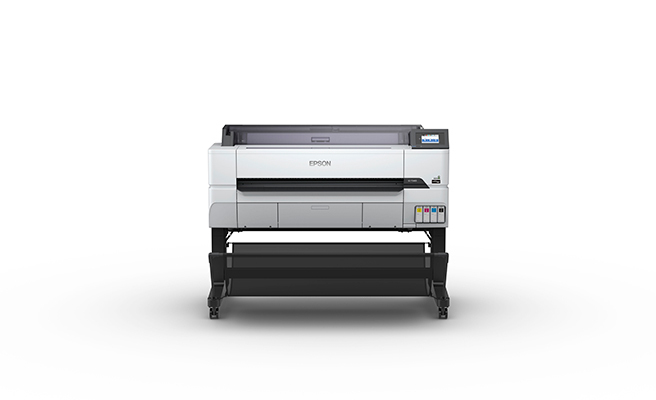

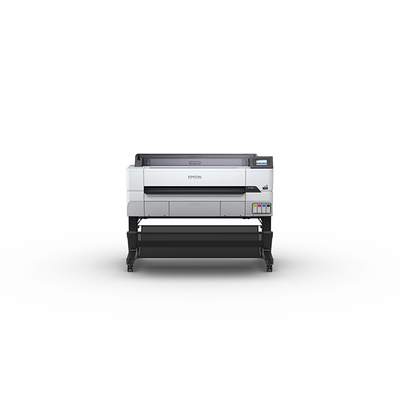

Epson SureColor T5465 36-inch Large Format Colour Printer WiFi Ethernet USB 3.0 (C11CJ56401)
Model # C11CJ56401
-
SKU: C11CJ56401
Special Order
Finance options available
Request a tailored quote
This product is supplied by quotation. Our product specialists can confirm current availability, the appropriate configuration, delivery options and pricing for your requirements.
- Current availability and lead-time information
- Product configuration guidance
- Delivery options for your order
- Business, education and government purchasing support
Quotation pricing is provided for your specific requirements.
- Pick Up Available
- Australian Warranty
- Checkout Securely
36-inch technical printing with A1 CAD output in 22 seconds
The Epson SureColor T5465 is a floor-standing 36-inch colour printer for technical and CAD output, with UltraChrome XD2 pigment ink, roll and cut-sheet handling, and network connectivity.
Maximum width36 inches / 914mm
CAD A1 print22 seconds
ResolutionUp to 2400 x 1200dpi
ConnectivityUSB 3.0, Ethernet and WiFi
Technical and CAD output
A PrecisionCore TFP printhead with Variable Sized Droplet Technology and Auto Head Alignment produces up to 2400 x 1200dpi output. The supplied CAD A1 print time is 22 seconds for the stated Epson test image, plain-paper and speed-mode conditions.
Roll and cut-sheet media
The top-loaded single-roll system supports media from 254mm to 914mm wide and 0.08mm to 0.3mm thick. A4 to A0/B1 single sheets, selected borderless widths, an inbuilt rotary cutter and a stand with media basket are listed.
Touchscreen and direct printing
A 4.3-inch colour touchscreen is supplied with USB 3.0, Gigabit Ethernet, WiFi, WiFi Direct and AirPrint. The front USB slot supports direct JPEG and TIFF printing from a thumb drive.
Technical specifications
| Product details | |
|---|---|
| Brand | Epson |
| Model | SureColor T5465 |
| SKU | C11CJ56401 |
| Product type | 36-inch technical and CAD colour printer |
| Maximum print width | 36 inches / 914mm |
| Configuration | Floor standing with media basket |
| Print and ink | |
| Print head | PrecisionCore TFP with VSDT and Auto Head Alignment |
| Maximum resolution | 2400 x 1200dpi |
| Minimum droplet size | 4.0pl |
| CAD A1 print time | 22 seconds for the supplied test image and conditions |
| Ink | UltraChrome XD2 all-pigment aqueous ink |
| Colours | Cyan, Magenta, Yellow and Black |
| Cartridge sizes | 110ml, 350ml and 700ml |
| Media and operation | |
| Roll media | 254mm to 914mm wide; 0.08mm to 0.3mm thick; maximum 12kg |
| Sheet media | A4 to A0/B1 single sheets; 0.08mm to 0.3mm thick |
| Auto cutter | Built-in rotary type |
| Control panel | 4.3-inch colour LCD touchscreen |
| Connectivity | USB 3.0, 10/100/1000 Ethernet, WiFi, WiFi Direct and AirPrint |
| Memory | 1GB RAM |
| Physical and power | |
| Dimensions | 1385 x 750 x 1070mm with closed basket |
| Weight | 76kg without ink, media or options |
| Power consumption | 38W operating; 13W standby; 1.3W sleep |
Frequently asked questions
What is the maximum print width of the Epson T5465?
The supplied DeviceDeal specifications list a maximum width of 36 inches or 914mm.
How fast does the T5465 print an A1 CAD sheet?
The listed time is 22 seconds for the supplied Epson test image, plain-paper and speed-mode conditions.
Which connections are provided?
USB 3.0, Gigabit Ethernet, WiFi, WiFi Direct and AirPrint are listed.
(C11CJ56401)
| TECHNICAL & CAD - PRINTER | |
|---|---|
| PRODUCT NAME | SureColor T5465 - 36" |
| SIZE | |
|---|---|
| Max Print Width | 36 inch wide (914mm) |
| PRINT TECHNOLOGY | |
|---|---|
| Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment |
| Print Modes | Uni & Bi-directional |
| Nozzle Configuration | 800 per colour |
| Maximum Resolution | 2400dpi x 1200dpi |
| Minimum Ink Droplet Size | 4.0pl |
| INK SYSTEM | |
|---|---|
| Family | Epson Ultrachrome® XD2 |
| Type | All-Pigment Aqueous |
| Colours | C+M+Y+K |
| Cartridges | CMYK 110ml CMYK 350ml CMYK 700ml |
| PERFORMANCE (per Sheet) | |
|---|---|
| CAD A1 | 22sec |
 Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type. |
|
| MEDIA SUPPORT | |
|---|---|
| Roll Format | Single roll top loaded spindle, 2" core, 3” core for plain paper, 0.08 to 0.3mm thick, 254-914mm wide, 170mm max diameter, max weight 12kg |
| Sheet Format | Top loaded A4-A0/B1 single sheets, 279.4 to 1,580 mm length, 0.08-0.3mm thick |
| Borderless Printing | Supported Media Types: A1 (594mm) and A1+ (610mm), 700mm, B1 (728mm), A0 (841mm), A0+ (914mm) Cut Sheet only borderless to the left and right of the sheet |
| Auto Cutter | Inbuilt rotary type |
| Manual Double Sided Printing | Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. |
| Output | Printer Stand incorporates a media basket |
| OPERATION | |
|---|---|
| Control Panel | 4.3" Colour LCD touch screen |
| Control Code | ESC/P2, ESC/P Raster, HP/GL/2 & HP RTL* 1 |
| Connectivity | USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print |
| Included Software | Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only) |
| Software via web download | HDI driver, CopyFactory, EpsonNet SetupManager, Epson Device Admin, Epson Print Automate, Epson Edge Dashboard, LFP Accounting tool |
| Roll Management System (Roll Format) | Barcode Roll Media Management system helps keep track of the type of media and how many metres is left on the roll |
| USB Input | Front panel USB slot enables JPEG and TIFF files to be printed direct from a thumb drive |
| Compatibility | Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later |
| Memory | 1GB RAM |
| Business Inkjet Printer Support | USB interface with integrated copy and enlargement support for the following printers: WF-C20590 series, WF-C17590 Series, WF-M20590 Series, WF-C20600 Series, WF-20750 Series, WF-21000 Series, WF-R8590 Series, WF-8590 Series, WF-C869R, WF-878R Series, WF-879R Series |
| Scanner Support | USB interface with integrated control & auto enlargement Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes Supports A2, US-C (17x22"), B2, US-D (22x34"), A1, B1, US-E (34x44"), A0 & custom (89-610mm wide) output page sizes Supports Epson DS-530, DS-6500 & DS6000 scanner models |
| Physical (WxDxH) | 1385 × 750 × 1070 mm, 76kg (floor standing, closed basket, no ink, media or options) 1385 × 966 × 1070 mm, 76kg (floor standing, open basket, no ink, media or options) |
| ARM 64 Processor Compatibility | IMPORTANT NOTICE: A number of printer drivers have been found to have compatibility issues with Windows PCs that feature an ARM 64 processor. Epson is currently reviewing our current and recent model ranges with a view to issuing updates. Unfortunately, although we will roll these out as quickly as we can the process is not expected to be completed until early 2026. In the interim we do not recommend operation with this type of equipment. |
| ENVIRONMENT | |
|---|---|
| Operational Temp | 10° to 35° C |
| Operational Humidity | 20 to 80% (40 to 60% is recommended for no condensation) |
| Power Supply | 100 - 240 V AC, 50/60 Hz |
| Power Consumption | 38W Operating, 13W Standby, 1.3W Sleep |
| Operating Noise | 50dB |
| Recommended Install Space (WxHxD) | Floor-standing: 1385 × 750 × 1070 mm |
| SHIPPING INFO | |
|---|---|
| Packaging (WxDxH) | Floor standing: 1548 ｘ 850 ｘ 1100 mm, 113Kg |
| What’s in the Box | Printer, Power Cord, set of 110ml ink cartridges, 1 x Maintenance Tank, Setup Guide & Warranty Info. Driver, user software & manuals on CD. |
| Delivery & Install | Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations. |
| Service & Support | Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty terms and travelling charges may apply for equipment located outside major metro areas. |
| CONFIGURATION OPTIONS | |
|---|---|
| C11CJ56401 | Floor Standing with 1Yr On-Site Warranty |
| SCT54653YR | Floor Standing with 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)** |
| SCT54655YR | Floor Standing with 2 x 2Yr CoverPlus On-Site Service Pack (total 5 yrs cover)** |
| OPTIONAL ACCESSORIES | ||
|---|---|---|
| C12C933301 | Additional Roll Feed Spindle for T5460 (36") | |
| 1YWTSCT5465 | 1 Yrs Epson CoverPlus On-Site Printer Service Pack** | |
| 2YWTSCT5465 | 2 Yrs Epson CoverPlus On-Site Printer Service Pack** | |
| ** Epson CoverPlus Service Packs enable cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia or Epson New Zealand. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of Warranty and CoverPlus. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification, with non-genuine Epson consumables, and consumables not designed for use with the particular printer model. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson or one of our Authorised Large Format Resellers if you have questions or concerns. | ||
| SKU | C11CJ56401 |
| Barcode # | 9314020633201 |
| Brand | EPSON |
| Shipping Weight | 115.0000kg |
| Shipping Width | 0.001m |
| Shipping Height | 0.002m |
| Shipping Length | 0.001m |
