Epson SureColor T5160 36-inch Large Format Printer with Stand & Basket WiFi (C11CF12409)
Model # C11CF12409
-
SKU: C11CF12409
Request a tailored quote
This product is supplied by quotation. Our product specialists can confirm current availability, the appropriate configuration, delivery options and pricing for your requirements.
- Current availability and lead-time information
- Product configuration guidance
- Delivery options for your order
- Business, education and government purchasing support
Quotation pricing is provided for your specific requirements.
- Pick Up Available
- Australian Warranty
- Checkout Securely

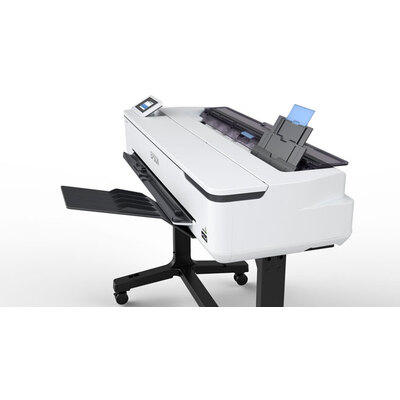

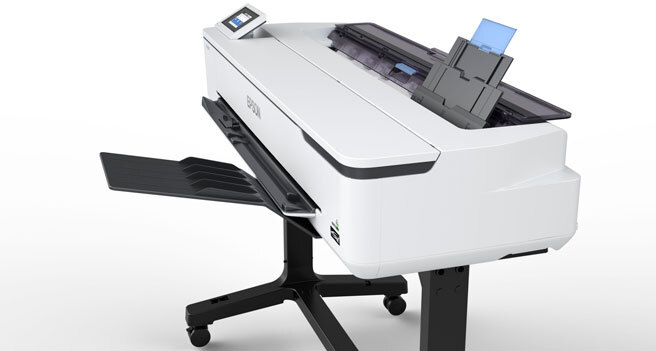

36-inch technical printing with stand and basket
The Epson SureColor T5160 is a 36-inch floor-standing large-format printer for CAD, AEC, GIS, POS, mapping, poster and educational applications, with cut-sheet and roll-media support.
Technical, mapping and poster output
The supplied datasheet positions the T5160 for CAD, AEC, GIS, POS, mapping, poster and educational applications. It produces an A1 print on plain paper in 31 seconds at the listed maximum speed.
PrecisionCore and pigment ink
A PrecisionCore TFP printhead uses four-colour UltraChrome XD2 aqueous pigment ink. The supplied datasheet lists scratch- and moisture-resistant prints with fine lines and solid fills.
Front-loading cut sheets and rolls
Cut sheets and rolls load from the front. The 36-inch model supports roll widths from 329mm to 914mm and single sheets from 210mm to 914mm, with a 50-sheet A4/A3 automatic sheet feeder listed.
Technical specifications
| Product details | |
|---|---|
| Brand | Epson |
| Model | SureColor T5160 |
| SKU | C11CF12409 |
| Configuration | Floor-standing printer with stand and basket |
| Maximum listed width | 36 inches / 914mm |
| Print technology and performance | |
| Printhead | PrecisionCore TFP |
| Maximum printing resolution | 2400 x 1200dpi |
| Ink type | UltraChrome XD2 aqueous pigment ink |
| Colours | Magenta, Yellow, Cyan and Black |
| Supported cartridge sizes | CMY 26ml or 50ml; Black 50ml or 80ml; mixed sizes supported |
| Maximum printing speed | 31 seconds for A1 on plain paper |
| Nozzle configuration | 800 nozzles per colour |
| Minimum droplet size | 4.0pl |
| Paper handling | |
| Paper loading | Cut sheets and rolls load from the front |
| Roll-media width | 329mm to 914mm |
| Single-sheet width | 210mm to 914mm |
| Maximum roll weight | 3kg |
| Roll core and diameter | 2-inch core; maximum 110mm diameter |
| Paper thickness | Roll: 0.05mm to 0.21mm; cut sheet: 0.12mm to 0.27mm |
| Automatic sheet feeder | 50 sheets for A4/A3 |
| Connectivity and operation | |
| Connectivity | USB 3.0, 1000/100/10Base-T Ethernet, WiFi, WiFi Direct and AirPrint |
| Memory | 1GB physical memory |
| Emulations | HP-GL/2 and HP-RTL |
| Dimensions | 1268 x 696 x 913mm (W x D x H) |
| Power usage | 28W operating; 8W standby; 1.6W sleep |
| Acoustic noise | Approx. 49dB(A) |
Frequently asked questions
How fast does the Epson SureColor T5160 produce an A1 print?
The supplied datasheet lists 31 seconds for A1 output on plain paper at maximum speed.
What media widths does the 36-inch T5160 support?
Roll media from 329mm to 914mm and single sheets from 210mm to 914mm are listed.
Which connections are provided?
USB 3.0, Gigabit Ethernet, WiFi, WiFi Direct and AirPrint are listed.
(C11CF12409)
| SKU | C11CF12409 |
| Barcode # | 9314020625329 |
| Brand | EPSON |
| Shipping Weight | 70.0000kg |
| Shipping Width | 0.001m |
| Shipping Height | 0.002m |
| Shipping Length | 0.001m |
