Epson SureColor T3465 24-inch Large Format Printer

Special Order Finance options available

Request a tailored quote

This product is supplied by quotation. Our product specialists can confirm current availability, the appropriate configuration, delivery options and pricing for your requirements.

Current availability and lead-time information
Product configuration guidance
Delivery options for your order
Business, education and government purchasing support

Request a Special Quote → 1300 800 522

Quotation pricing is provided for your specific requirements.

Pick Up Available
Australian Warranty
Checkout Securely

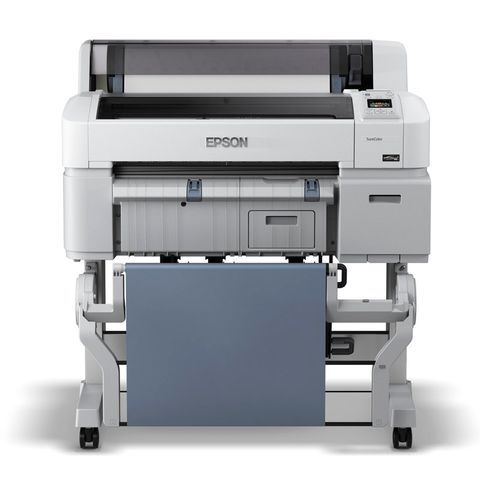

Epson SureColor T3465 24-inch technical and CAD printer

24-inch technical printing with A1 output in 25 seconds

The Epson SureColor T3465 is a floor-standing 24-inch technical and CAD printer with UltraChrome XD2 pigment ink, roll and cut-sheet handling, and network connectivity.

Maximum width24 inches / 610mm

CAD A1 print25 seconds

ResolutionUp to 2400 x 1200dpi

ConnectivityUSB 3.0, Ethernet and WiFi

Technical and CAD output

A PrecisionCore TFP printhead with Variable Sized Droplet Technology and Auto Head Alignment produces up to 2400 x 1200dpi output. The listed CAD A1 print time is 25 seconds on the supplied test image and settings.

Roll and cut-sheet media

The top-loaded single-roll system supports 254mm to 610mm media on 2-inch cores, with 3-inch cores listed for plain paper. A4 to A1 single sheets and an inbuilt rotary cutter are supported.

Touchscreen and direct printing

The 4.3-inch colour touchscreen is joined by USB 3.0, Gigabit Ethernet, WiFi, WiFi Direct and AirPrint. A front-panel USB slot supports direct JPEG and TIFF printing.

Technical specifications

Product details
Brand	Epson
Model	SureColor T3465
SKU	C11CJ55401
Product type	24-inch technical and CAD colour printer
Maximum print width	24 inches / 610mm
Configuration	Floor standing
Print and ink
Print head	PrecisionCore TFP with VSDT and Auto Head Alignment
Maximum print resolution	2400 x 1200dpi
Minimum droplet size	4.0pl
CAD A1 print time	25 seconds on the listed test image and settings
Ink	UltraChrome XD2 all-pigment aqueous ink
Colours	Cyan, Magenta, Yellow and Black
Cartridge sizes	110ml, 350ml and 700ml
Media handling
Roll media	254mm to 610mm wide; 0.08mm to 0.3mm thick; maximum 8kg
Sheet media	A4 to A1 single sheets; 0.08mm to 0.3mm thick
Borderless media	A1 594mm and A1+ 610mm
Auto cutter	Built-in rotary type
Output	Stand with media basket
Operation and physical details
Control panel	4.3-inch colour LCD touchscreen
Connectivity	USB 3.0, 10/100/1000 Ethernet, WiFi, WiFi Direct and AirPrint
Memory	1GB RAM
Dimensions	1080 x 750 x 1070mm with closed basket
Weight	64kg without ink, media or options
Power consumption	34W operating; 13W standby; 1.3W sleep

Frequently asked questions

How fast does the Epson T3465 print an A1 CAD sheet?

The supplied specification lists 25 seconds for the stated A1 CAD test image and settings.

What is the maximum print width?

The maximum listed print width is 24 inches or 610mm.

Which connections are provided?

USB 3.0, Gigabit Ethernet, WiFi, WiFi Direct and AirPrint are listed.

(C11CJ55401)

TECHNICAL & CAD - PRINTER
PRODUCT NAME	SureColor T3465 - 24"

SIZE
Max Print Width	24 inch wide (610mm)

PRINT TECHNOLOGY
Print Head	PrecisionCore TFP with VSDT and Auto Head Alignment
Print Modes	Uni & Bi-directional
Nozzle Configuration	800 per colour
Maximum Resolution	2400dpi x 1200dpi
Minimum Ink Droplet Size	4.0pl

INK SYSTEM
Family	Epson Ultrachrome^® XD2
Type	All-Pigment Aqueous
Colours	C+M+Y+K
Cartridges	CMYK 110ml CMYK 350ml CMYK 700ml

PERFORMANCE (per Sheet)
CAD A1	25sec
Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type.

MEDIA SUPPORT
Roll Format	Single roll top loaded spindle, 2" core, 3" core for plain paper, 0.08 to 0.3mm thick, 254-610mm wide, 170mm max diameter, max weight 8kg
Sheet Format	Top loaded A4-A1 single sheets, 279.4 to 1,580 mm length, 0.08-0.3mm thick
Borderless Printing	Supported Media Types: A1 (594mm) and A1+ (610mm) Cut Sheet only borderless to the left and right of the sheet
Auto Cutter	Inbuilt rotary type
Manual Double Sided Printing	Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
Output	Printer Stand incorporates a media basket

OPERATION
Control Panel	4.3" Colour LCD touch screen
Control Code	ESC/P2, ESC/P Raster, HP/GL/2 & HP RTL* 1
Connectivity	USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print
Included Software	Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only)
Software via web download	HDI driver, CopyFactory, EpsonNet SetupManager, Epson Device Admin, Epson Edge, Epson Print Automate, Dashboard, LFP Accounting tool
Roll Management System (Roll Format)	Barcode Roll Media Management system helps keep track of the type of media and how many metres is left on the roll
USB Input	Front panel USB slot enables JPEG and TIFF files to be printed direct from a thumb drive
Compatibility	Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
Memory	1GB RAM
Business Inkjet Printer Support	USB interface with integrated copy and enlargement support for the following printers: WF-C20590 series, WF-C17590 Series, WF-M20590 Series, WF-C20600 Series, WF-20750 Series, WF-21000 Series, WF-R8590 Series, WF-8590 Series, WF-C869R, WF-878R Series, WF-879R Series
Scanner Support	USB interface with integrated control & auto enlargement Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes Supports A2, US-C (17x22"), B2, US-D (22x34"), A1 & custom (89-610mm wide) output page sizes Supports Epson DS-530, DS-6500 & DS6000 scanner models
Physical (WxDxH)	1080 × 750 × 1070 mm, 64kg (floor standing, closed basket, no ink, media or options) 1080 × 966 × 1070 mm, 64kg (floor standing, open basket, no ink, media or options)
ARM 64 Processor Compatibility	IMPORTANT NOTICE: A number of printer drivers have been found to have compatibility issues with Windows PCs that feature an ARM 64 processor. Epson is currently reviewing our current and recent model ranges with a view to issuing updates. Unfortunately, although we will roll these out as quickly as we can the process is not expected to be completed until early 2026. In the interim we do not recommend operation with this type of equipment.

ENVIRONMENT
Operational Temp	10° to 35° C
Operational Humidity	20 to 80% (40 to 60% is recommended for no condensation)
Power Supply	100 - 240 V AC, 50/60 Hz
Power Consumption	34W Operating, 13W Standby, 1.3W Sleep
Operating Noise	50dB
Recommended Install Space (WxHxD)	Floor-standing: 1080 × 750 × 1070 mm

SHIPPING INFO
Packaging (WxDxH)	Floor standing: 1248 ｘ 850 ｘ 1100mm, 96Kg
What’s in the Box	Printer, Power Cord, set of 110ml ink cartridges, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD.
Delivery & Install	Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations.
Service & Support	Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty terms and travelling charges may apply for equipment located outside major metro areas.

CONFIGURATION OPTIONS
C11CJ55401	Floor Standing with 1Yr On-Site Warranty
SCT34653YR	Floor Standing with 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCT34655YR	Floor Standing with 2 x 2Yr CoverPlus On-Site Service Pack (total 5 yrs cover)**

OPTIONAL ACCESSORIES
C12C933281	Additional Roll Feed Spindle for T3460 (24")
1YWTSCT3465	1 Yrs Epson CoverPlus On-Site Printer Service Pack**
2YWTSCT3465	2 Yrs Epson CoverPlus On-Site Printer Service Pack**
** Epson CoverPlus Service Packs enable cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia or Epson New Zealand. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of Warranty and CoverPlus. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification, with non-genuine Epson consumables, and consumables not designed for use with the particular printer model. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson or one of our Authorised Large Format Resellers if you have questions or concerns.
