Five removable D-rings
Five ABS plastic cable-routing hooks provide an organised path across the front of the rack.
StarTech 1U 19" Rackmount Cable Management Panel - CABLMANAGER2
Model # CABLMANAGER2
-
SKU: CABLMANAGER2
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CABLMANAGER2
StarTech 1U 19" Rackmount Cable Management Panel - CABLMANAGER2

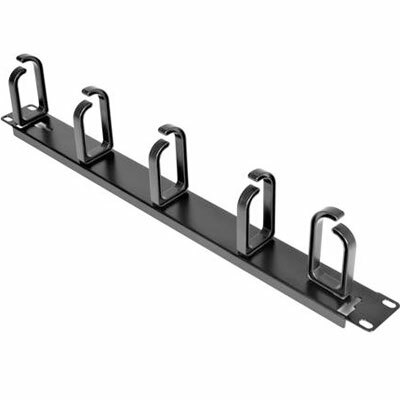

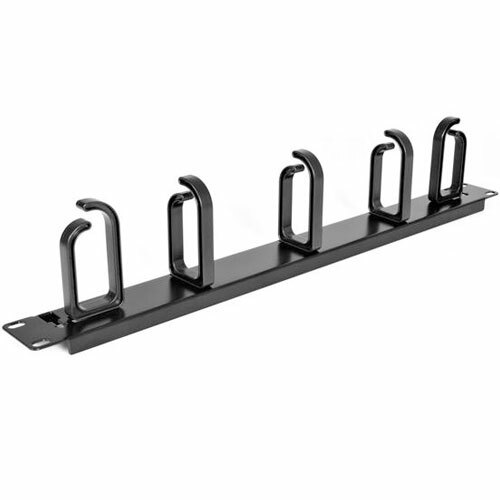

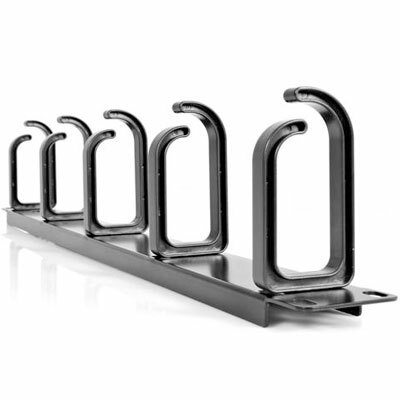

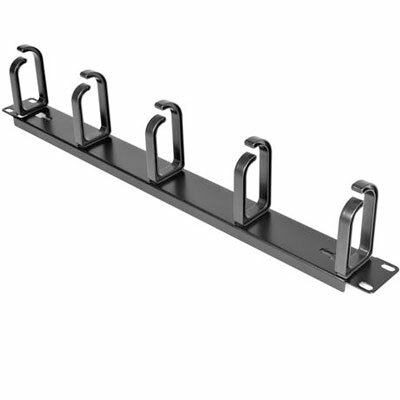

Route network, server and KVM cabling across a standard 19-inch rack with a sturdy 1U steel panel and five removable ABS D-ring hooks. The two end hooks rotate 90 degrees to support horizontal or vertical cable paths.
1U · 19-inch5 removable D-ringsSteel panel2-year warranty
Product overview
CABLMANAGER2 mounts at the front of a standard 19-inch 2-post or 4-post rack. Its five 76mm-tall D-rings are spaced 105mm apart to organise cabling, reduce cable strain and help close an unused 1U opening for more controlled rack airflow.
Features that matter
Flexible end-hook position
The hook at either end can rotate 90 degrees to accommodate horizontal or vertical cable routing.
Standard rack fit
The 1U panel front-mounts to standard 19-inch 2-post and 4-post racks and cabinets.
Durable construction
A black steel panel, TAA compliance and a two-year StarTech.com warranty support professional installations.
What to know before ordering
Choose it for
Organising network, server or KVM cabling near rack-mounted patch panels, switches and other equipment.
Check rack space
The panel requires one available 1U position on a standard 19-inch rack and mounts at the front only.
Routing note
The organiser manages and guides cables; it does not replace load-bearing cable support where heavy cable bundles require separate support.
Product video
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 2 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What does CABLMANAGER2 do?
CABLMANAGER2 provides a 1U horizontal routing channel for organising network, server and KVM cables at the front of a 19-inch rack.
Which racks can use this cable manager?
It mounts to standard 19-inch 2-post or 4-post server racks and cabinets and requires one available rack unit.
How many cable-routing hooks are included?
The panel has five removable ABS plastic D-ring hooks.
What size and spacing are the D-rings?
Each hook is 3 inches (76mm) tall, and the hooks are spaced 4 inches (105mm) apart.
Can the cable hooks support vertical routing?
Yes. The hook at either end of the panel can rotate 90 degrees to accommodate horizontal or vertical cable routing.
How does CABLMANAGER2 mount?
It is a horizontal, front-mount 1U panel for a standard 19-inch rack.
What is included in the package?
The package includes one 1U metal cable manager for a 19-inch rack and one instruction sheet.
What warranty applies in Australia?
CABLMANAGER2 is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CABLMANAGER2)
Features and highlights
1U 19-inch rack cable management panel
Product-specific buying points for CABLMANAGER2.
Key capabilities
Five removable D-rings
Five ABS plastic cable-routing hooks provide an organised path across the front of the rack.
Flexible end-hook position
The hook at either end can rotate 90 degrees to accommodate horizontal or vertical cable routing.
Standard rack fit
The 1U panel front-mounts to standard 19-inch 2-post and 4-post racks and cabinets.
Durable construction
A black steel panel, TAA compliance and a two-year StarTech.com warranty support professional installations.
Highlights at a glance
- 1U horizontal cable management panel
- 19-inch rack width
- Five removable 76mm ABS D-ring hooks
- Hooks spaced 105mm apart
- End hooks rotate 90 degrees
- Front-mount steel panel
- TAA compliant
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 2 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Technical specifications
CABLMANAGER2
1U rackmount cable management panel · Verified exact-SKU specifications.
General
Product type
1U rackmount cable management panel
Product ID
CABLMANAGER2
UPC
065030783248
Package quantity
1
TAA compliant
Yes
Warranty
2 Years
Hardware and mounting
Rack width
19 in
U height
1U
Compatible rack style
Standard 19-inch 2-post or 4-post rack
Orientation
Horizontal
Mounting option
Front mount only
Panel material
Steel
Cable hooks
5 × removable ABS plastic D-rings
Hook height
3 in [76 mm]
Hook spacing
4 in [105 mm]
Adjustable hooks
End hooks rotate 90 degrees
Physical and packaging
Colour
Black
Product length
3.5 in [88.6 mm]
Product width
19.0 in [482.6 mm]
Product height
1.7 in [43.5 mm]
Product weight
13.3 oz [378.1 g]
Package width
19.6 in [497 mm]
Package depth
2.2 in [55 mm]
Package height
1.5 in [37 mm]
Shipping weight
15.5 oz [440 g]
In the box
Included
1 × 1U metal cable manager for 19-inch rack
Documentation
1 × Instruction sheet
