StarTech SDOCK2U33EB Dual-Bay USB 3.0 and eSATA HDD/SSD Dock

Dock two 2.5-inch or 3.5-inch SATA HDDs or SSDs through USB 3.0 or eSATA, with UASP, port-multiplier support and current host-recognised capacity compatibility.

2 BaysUSB 5GbpseSATA 6GbpsUASPPort Multiplier2-Year Warranty

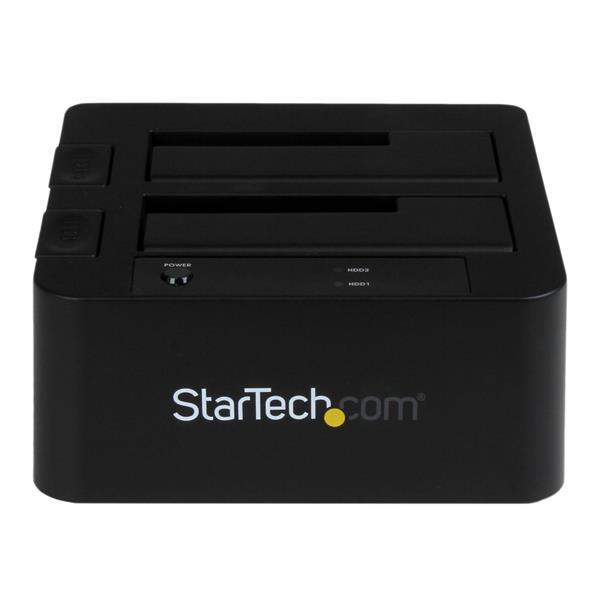

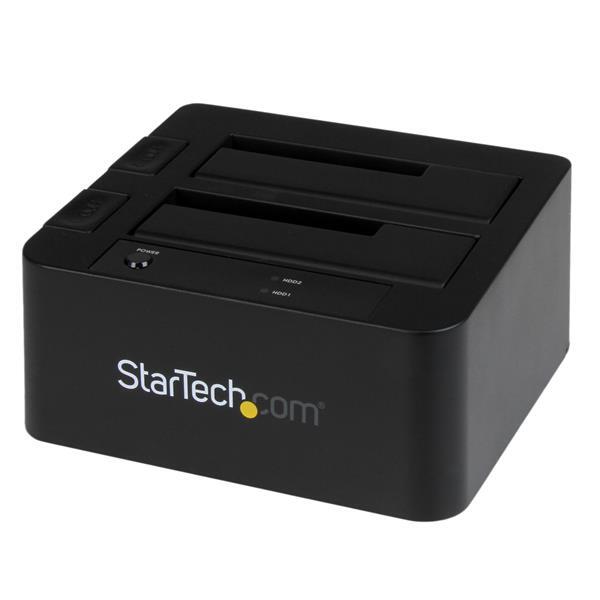

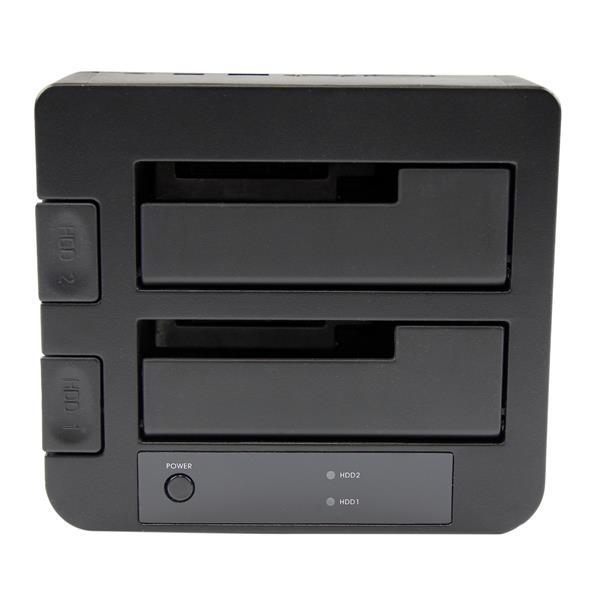

StarTech SDOCK2U33EB dual-bay USB 3.0 and eSATA HDD/SSD dock

Key capabilities

USB 3.0 or eSATA host access

Connect the dock through USB 3.0 up to 5Gbps or eSATA / SATA III up to 6Gbps.

Dual removable SATA bays

Provides easy access to two compatible 2.5-inch or 3.5-inch SATA HDDs or SSDs.

UASP support

Supports UASP with compatible USB hosts for more efficient storage transfers.

Port multiplier support

Supports port-multiplier operation where the host eSATA controller and environment provide the required capability.

What to know before buying

  • Current exact StarTech documentation supports compatible SATA HDDs/SSDs of capacities recognised by the host.
  • The older DeviceDeal detailed table lists tested capacity limits of 4TB for 3.5-inch drives and 2TB for 2.5-inch drives; current exact StarTech documentation supersedes those older test limits.
  • eSATA dual-drive visibility requires host-side port-multiplier support.
  • USB UASP operation requires a compatible host operating system and USB controller.

Source note

The older DeviceDeal technical table lists tested limits of 4TB for 3.5-inch drives and 2TB for 2.5-inch drives. Current exact StarTech documentation states compatibility with SATA HDD/SSDs of capacities recognised by the host. The current exact StarTech position is used, while the older tested values are retained as a source note.

Australian warranty confidence

This Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SDOCK2U33EB used for?

It is a dual-bay SATA drive dock that can connect to a host through USB 3.0 or eSATA.

Which connections or interfaces does it provide?

It provides USB 3.0 Type-B and eSATA host connections plus two SATA drive bays.

What performance does it support?

USB supports up to 5Gbps and eSATA / SATA III supports up to 6Gbps.

Which drives or devices are supported?

Current exact StarTech documentation supports compatible 2.5-inch and 3.5-inch SATA HDDs and SSDs of capacities recognised by the host.

Does it require drivers or software?

No. The dock is OS independent; UASP and eSATA port-multiplier operation depend on compatible host support.

What is included in the package?

The dual-bay dock, USB 3.0 cable, eSATA cable, universal regional power adapter and instruction manual are included.

What is required to see both drives over eSATA?

The host eSATA controller and system must support port-multiplier operation.

What warranty applies to the StarTech SDOCK2U33EB in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms, eligibility requirements and product assessment. Retain the DeviceDeal tax invoice as proof of purchase.

(SDOCK2U33EB)

Features and highlights

USB 3.0 or eSATA host access

Connect the dock through USB 3.0 up to 5Gbps or eSATA / SATA III up to 6Gbps.

Dual removable SATA bays

Provides easy access to two compatible 2.5-inch or 3.5-inch SATA HDDs or SSDs.

UASP support

Supports UASP with compatible USB hosts for more efficient storage transfers.

Port multiplier support

Supports port-multiplier operation where the host eSATA controller and environment provide the required capability.

Key highlights

  • 2 ? SATA bays
  • USB 3.0 up to 5Gbps
  • eSATA / SATA III up to 6Gbps
  • UASP
  • Port multiplier
  • 2.5in and 3.5in SATA HDD/SSD
  • OS independent
  • 2-year warranty

Warranty confidence

2-Year official StarTech.com manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase.

Specifications

StarTech SDOCK2U33EB Dual-Bay USB 3.0 and eSATA HDD/SSD Dock

StarTech SDOCK2U33EB dual-bay USB 3.0 and eSATA HDD/SSD dock
Source note: The older DeviceDeal technical table lists tested limits of 4TB for 3.5-inch drives and 2TB for 2.5-inch drives. Current exact StarTech documentation states compatibility with SATA HDD/SSDs of capacities recognised by the host. The current exact StarTech position is used, while the older tested values are retained as a source note.
General
Product
Dual-bay USB 3.0 and eSATA SATA HDD/SSD dock
SKU
SDOCK2U33EB
Warranty
2-year official StarTech.com manufacturer warranty
Drive bays
2
Drive sizes
2.5in and 3.5in
Drive types
SATA HDD/SSD
Drive installation
Removable
Hardware and performance
Chipset
JMicron JMS562
USB interface
USB 3.0 / USB 3.2 Gen 1 up to 5Gbps
eSATA / drive rate
SATA III up to 6Gbps
UASP
Yes
Port multiplier
Yes
Drive insertion rating
15,000 cycles
Compatibility
Current capacity support
Compatible SATA HDDs/SSDs of capacities recognised by the host
Older DeviceDeal tested values
Up to 4TB 3.5in per bay and up to 2TB 2.5in per bay
OS compatibility
OS independent
Interfaces and power
USB host connector
1 ? USB 3.0 Type-B female
eSATA host connector
1 ? eSATA 7-pin female
Power input
100-240V AC, 1.5A
Power output
12V DC, 3A
Power rating
36W
Physical and environmental
Material
Plastic
Colour
Black
Dimensions
14.3cm L ? 13.2cm W ? 7cm H
Product weight
524g
Operating temperature
5¡C to 35¡C
Storage temperature
-20¡C to 50¡C
Humidity
20% to 80% RH
Packaging and in the box
Official package dimensions
12.3cm L ? 18.8cm W ? 21.3cm H
Official shipping package weight
1.0kg
DeviceDeal logistics shipping weight
1.000kg
Included
Dock; USB 3.0 cable; eSATA cable; universal NA/EU/UK/ANZ power adapter; instruction manual
Barcode
65030855891
SKU SDOCK2U33EB
Barcode # 65030855891
Brand Startech
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.210m
Shipping Cubic 0.001050000m3
2-Year manufacturer warranty

Official StarTech.com manufacturer warranty in Australia

This Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
