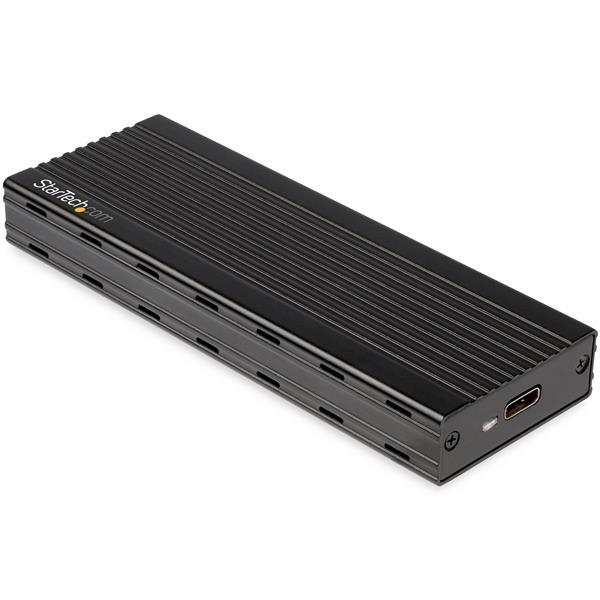

This compact M.2 NVMe SSD Enclosure for PCIe SSDs is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.

Unparalleled Performance

Leverage the high speeds of your M.2 NVMe drive, with this external SSD enclosure. It delivers USB 3.1 Gen 2 read/write speeds up to 10Gbps, which is nearly twice the capability of traditional M.2 SATA enclosures and USB 3.1 Gen 1. NVMe allows users to take full advantage of the throughput available to USB 3.1 Gen 2, which would not be possible with a SATA drive.

NVMe Speed Diagram

This fan-less aluminum enclosure features ventilation holes for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance.

maximize heat dissipation with ventilation holes specially engineered to increase air flow

Truly Portable

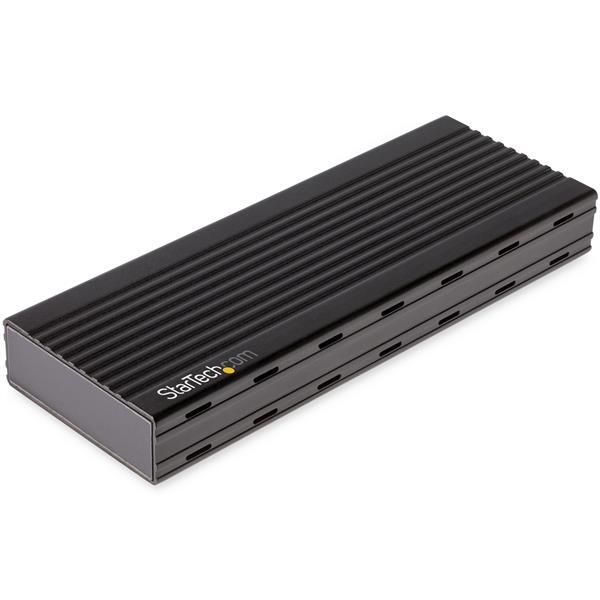

This slim, pocket-sized enclosure for PCIe based NVMe is specially designed for mobility, with a small form-factor design that fits easily into your laptop bag. Its lightweight, yet durable aluminum housing helps to ensure your drive won't be damaged while you're on the move.

M2E1BMU31C Dimensions

Broad Compatibility

The M.2 NVMe enclosure works with tablets, laptops, desktop computers and hosts that are equipped with USB Type-C and Thunderbolt 3 ports. It's also backward compatible with USB 3.1 Gen 1, making it a convenient solution for the office or other workplace environments.

Additionally, the enclosure supports plug-and-play installation, making it the perfect accessory for professionals on the go.

M2E1BMU31C is backed by a StarTech.com 2-year warranty and free lifetime technical support.

(M2E1BMU31C)

Hardware
Supported Drive Height(s)2230
2242
2260
2280
Indicators
LED IndicatorsPower & Activity
Packaging Information
Package Height35 mm [1.4 in]
Package Length15.4 cm [6.1 in]
Package Width10.6 cm [4.2 in]
Shipping (Package) Weight0.2 kg [0.3 lb]
Performance
4Kn SupportYes
General SpecificationsNot compatible with M.2 SATA or AHCI based SSDs
Maximum Data Transfer Rate10 Gbps
MTBF233,398 Hours
TRIM SupportYes
Type and RateNVMe (PCIe Gen 3)
USB 3.1 Gen 2 - 10 Gbit/s
UASP SupportYes
Physical Characteristics
ColorBlack
Enclosure TypeAluminum and Plastic
Product Height1.3 cm [0.5 in]
Product Length10.8 cm [4.3 in]
Product Width40 mm [1.6 in]
Weight of Product65 g [2.3 oz]
Power
Power SourceUSB-Powered
Prominence
Description CDW 75 - 1st LineStarTech.com M.2 NVMe SSD Enclosure for PCIe SSDs - USB 3.1 Gen 2 Type-C
Software
OS CompatibilityOS independent; No software or drivers required
Special Notes / Requirements
NoteWindows 7 and earlier Windows versions do not support TRIM with USB storage devices.
What's in the Box
Included in PackageDrive Enclosure
Quick-Start Guide
Screwdriver
Set of M.2 Mounting Hardware (Installed)
USB-C to USB-C Cable (50 cm)
Hardware
Number of Drives1
InterfaceUSB 3.1 Gen 2
Drive Size22 mm - M.2 NVMe
Drive InstallationFixed
Compatible Drive TypesM.2 (PCIe, NVMe, M-Key, NGFF)
Chipset IDASMedia - ASM2362
Bus TypeUSB 3.1 Gen 2
Environmental
Storage Temperature-10°C to 65°C (14°F to 149°F)
Operating Temperature0°C to 40°C (32°F to 104°F)
HumidityOperation Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 95% RH
Connector(s)

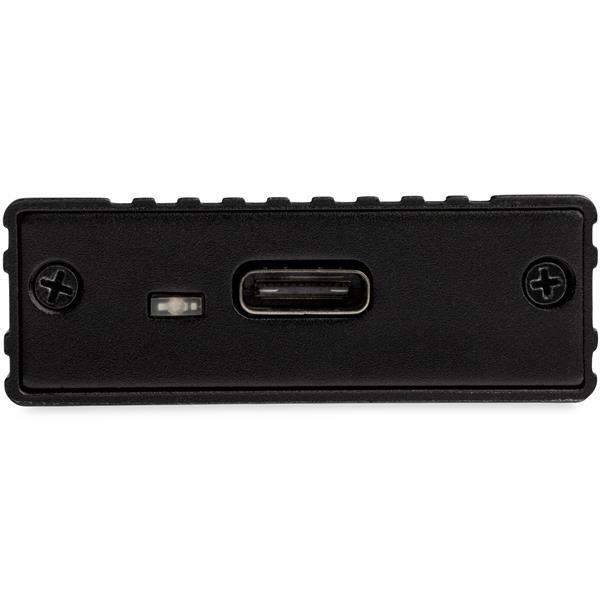

Host ConnectorsUSB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) Female
M.2 (PCIe, M-Key, NVMe, NGFF)
SKU M2E1BMU31C
Barcode # 65030875691
Brand STARTECH
Shipping Weight 0.1500kg
Shipping Width 0.110m
Shipping Height 0.040m
Shipping Length 0.156m
Shipping Cubic 0.000686000m3
