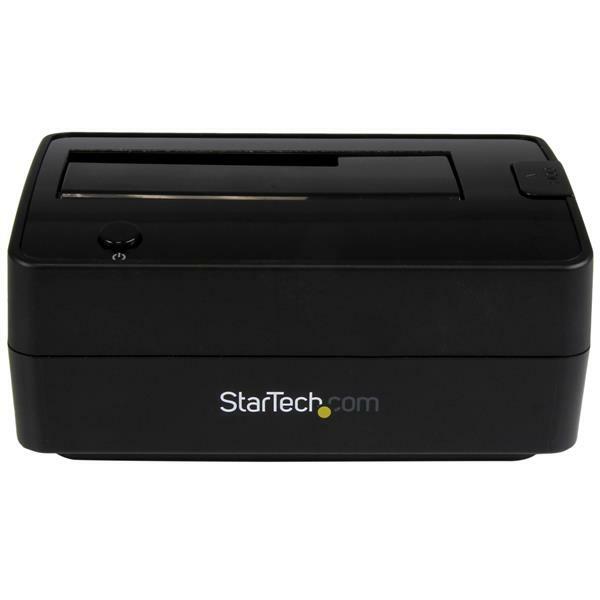

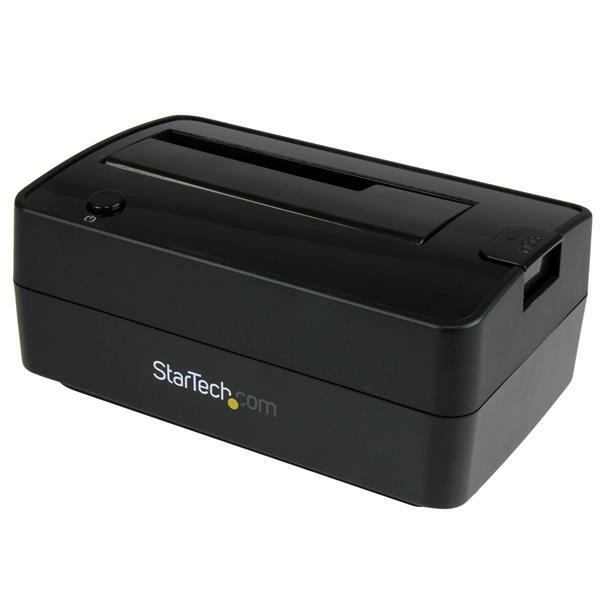

StarTech USB 3.1 (10Gbps) / eSATA Single-bay Dock - SDOCKU313E
Model # SDOCKU313E
-
SKU: SDOCKU313E
- Pick Up Available
- Australian Warranty
- Checkout Securely
Single-bay USB 10Gbps / eSATA dock for SATA HDDs and SSDs
A single-bay top-loading dock for compatible 2.5-inch and 3.5-inch SATA drives, with USB 3.2 Gen 2 up to 10Gbps, eSATA, UASP, TRIM, 4Kn and hot-swap support.
Key capabilities
USB 10Gbps or eSATA
Choose USB 3.2 Gen 2 or eSATA connectivity.

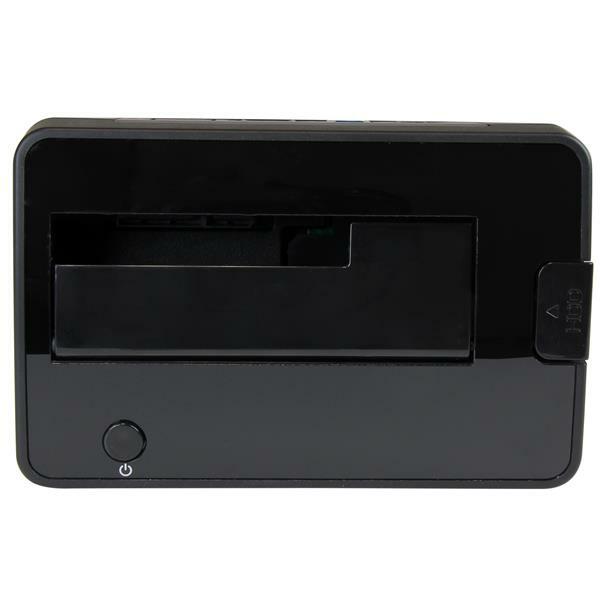

Top-loading single bay
Insert or remove a compatible 2.5-inch or 3.5-inch SATA drive.
UASP, TRIM and 4Kn
All three capabilities are listed in the exact specification.
USB-A, USB-C and eSATA cables included
All three cable types are listed in the package contents.
What to know before buying
The supplied exact technical table states testing with hard drives up to 6TB at 7200 RPM. This is retained as a tested capacity.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What drives does SDOCKU313E support?
How many drives can it dock?
What host connections are provided?
What USB speed is supported?
Does it support UASP and TRIM?
Does it support 4Kn and hot swap?
What tested capacity is listed?
What warranty applies in Australia?
(SDOCKU313E)
Features and highlights
USB 10Gbps or eSATA
Choose USB 3.2 Gen 2 or eSATA connectivity.
Top-loading single bay
Insert or remove a compatible 2.5-inch or 3.5-inch SATA drive.
UASP, TRIM and 4Kn
All three capabilities are listed in the exact specification.
USB-A, USB-C and eSATA cables included
All three cable types are listed in the package contents.
- 1 × SATA bay
- USB 10Gbps + eSATA
- UASP + TRIM + 4Kn
- 2-year warranty
Specifications
Verified specifications for StarTech SDOCKU313E.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Bus Type | USB 3.1 Gen 2 & eSATA |
|---|---|
| Chipset ID | ASMedia - ASM1351 |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Fan(s) | No |
| Interface | USB 3.1 Gen 2 |
| Interface | eSATA |
| Number of Drives | 1 |
Performance
| 4Kn Support | Yes |
|---|---|
| Hot Swap Capability | Yes |
| Max Drive Capacity | Currently tested with hard drives up to 6TB at 7200 RPM |
| TRIM Support | Yes |
| Type and Rate | USB 3.1 Gen 2 - 10 Gbit/s |
| Type and Rate | SATA III (6 Gbps) |
| UASP Support | Yes |
Connector(s)
| Drive Connectors | 1 - SATA Data & Power Combo (7+15 pin) Receptacle |
|---|---|

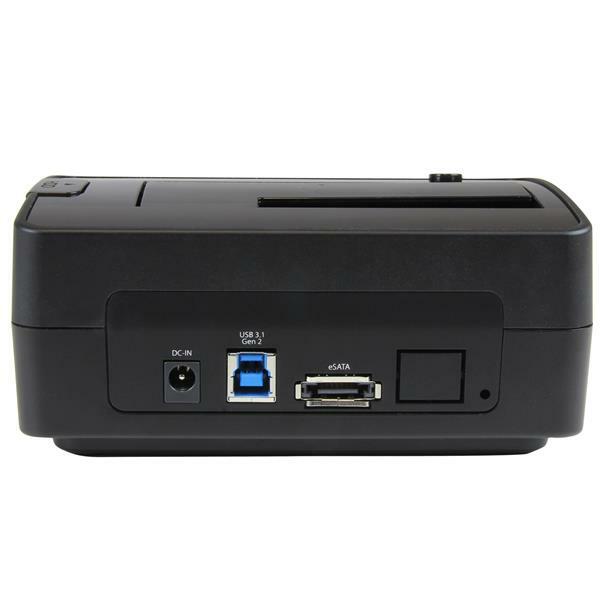

| Host Connectors | 1 - USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) Female |
| Host Connectors | 1 - eSATA (7 pin, Data) Female |
Software
| OS Compatibility | OS independent; No software or drivers required |
|---|
Indicators
| LED Indicators | 1 - Power & Activity |
|---|
Power
| Center Tip Polarity | Positive |
|---|---|
| Input Current | 0.6 A |
| Input Voltage | 100 - 240 AC |
| Output Current | 2.0 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
Environmental
| Humidity | 20% ~ 80% RH |
|---|---|
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 122°F) |
Physical Characteristics
| Color | Black |
|---|---|
| Enclosure Type | Plastic |
| Product Height | 2.5 in [6.3 cm] |
| Product Length | 5.7 in [14.5 cm] |
| Product Width | 3.7 in [93 mm] |
| Weight of Product | 14.5 oz [410 g] |
Packaging Information
| Package Height | 3.6 in [91 mm] |
|---|---|
| Package Length | 6.7 in [17.1 cm] |
| Package Width | 6.3 in [16.1 cm] |
| Shipping (Package) Weight | 30.4 oz [862 g] |
What's in the Box
| Included in Package | 1 - USB 3.1 & eSATA HDD/SSD docking station |
|---|---|
| Included in Package | 1 - universal power adapter (NA/JP, EU, UK, ANZ) |
| Included in Package | 1 - 3.3 ft. [1 m] USB-A to USB-B cable |
| Included in Package | 1 - 3.3 ft. [1 m] USB-C to USB-B cable |
| Included in Package | 1 - 3.3 ft. [1 m] eSATA cable |
| Included in Package | 1 - quick-start guide |
| SKU | SDOCKU313E |
| Barcode # | 65030863544 |
| Brand | Startech |
| Shipping Weight | 0.8500kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.090m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.002448000m3 |
