StarTech.com · CMVER20UD

StarTech 20U Vertical D-Ring Hook Rack Cable Organiser

Guide cables vertically beside rack equipment with a 2.8ft (approximately 0.86m) 20U cable organiser that uses open D-ring hooks and occupies no equipment-mounting rack units.

20U length0U equipment spaceD-ring hooks2-year warranty

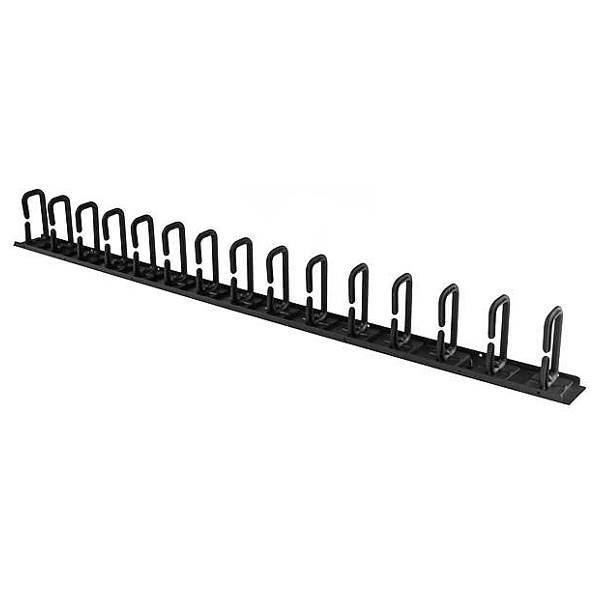

StarTech CMVER20UD 20U vertical d-ring hook rack cable organiser

Product overview

CMVER20UD mounts along the side of most racks that are 20U or larger. Its 0U installation helps organise cables between equipment at different heights without consuming front equipment space.

Features that matter

Accessible D-ring routing

Open D-rings guide vertical cable bundles while keeping them accessible for moves, additions and changes.

0U side-of-rack installation

Routes cables vertically without consuming equipment-mounting rack units.

Flexible mounting methods

Supports tool-less keyhole mounting or horizontal-rail attachment, with front and rear mounting options.

Strain and airflow management

Organised cable paths help reduce pull on connections and keep cables away from equipment airflow paths.

What to know before ordering

Rack requirement

Designed for most racks that are 20U or larger. Confirm the rack provides compatible keyholes, horizontal rails or suitable alternative mounting points.

20U length versus 0U usage

The organiser is approximately 20U tall but installs beside equipment, so it occupies 0U of equipment-mounting space.

Source comparison

Small dimensional differences exist between the supplied workbook and current exact-SKU datasheet. Both sets are retained in Specifications; current values are used for planning.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CMVER20UD?

CMVER20UD is a 20U-tall vertical d-ring hook cable organiser for routing cables along the side of a server rack.

How much rack space does it use?

It is approximately 20U tall but mounts beside the equipment area, so it occupies 0U of equipment-mounting space.

Which racks are compatible?

It is designed for most racks that are 20U or larger, subject to suitable keyholes, horizontal rails or alternative mounting points.

How does it manage cables?

It uses open D-ring hooks to guide cable bundles vertically while keeping them accessible.

Can it mount at the front or rear?

Yes. The official hardware specification lists front and rear mounting options.

Does it require a driver?

No driver or software is involved; this is passive rack cable-management hardware.

What is included in the package?

The package contains one vertical cable organiser, two M4 x 16mm screws, four M4 nuts, four 12mm washers and one instruction manual.

What warranty applies in Australia?

CMVER20UD is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CMVER20UD)

Features and highlights

CMVER20UD key capabilities

Product-specific highlights verified for this exact StarTech.com model.

Accessible D-ring routing

Open D-rings guide vertical cable bundles while keeping them accessible for moves, additions and changes.

0U side-of-rack installation

Routes cables vertically without consuming equipment-mounting rack units.

Flexible mounting methods

Supports tool-less keyhole mounting or horizontal-rail attachment, with front and rear mounting options.

Strain and airflow management

Organised cable paths help reduce pull on connections and keep cables away from equipment airflow paths.

Key highlights

For most racks 20U or larger
Vertical 0U cable route
D-ring hooks
Front or rear mounting
Official two-year StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CMVER20UD

Verified specifications and package details for the exact model.

General and Compatibility

Product type

Vertical d-ring hook cable organiser

Length class

20U

Equipment rack space used

0U when side-mounted

Recommended rack size

Most racks 20U or larger

Orientation

Vertical

Mounting options

Front and rear; tool-less keyhole or horizontal rail where supported

Warranty

2 Years

UPC

065030864817

Construction and Cable Access

Frame material

Steel

Colour

Black

Cable-management method

open D-ring hooks

Cover

No cover; open D-ring access

Current Official Physical Data

Current official dimensions (L x W x H)

50 x 863.6 x 87mm

Current official product weight

783.1g

Supplied Workbook Source Comparison

Supplied workbook dimensions / weight

50.8 x 863.6 x 86.4mm; approximately 760g

Purchase-planning value

Use current official values: 50 x 863.6 x 87mm; 783.1g

Reason retained

Supplied and current exact-SKU measurements differ slightly; both are shown for auditability

Packaging and In the Box

Package dimensions (W x D x H)

111 x 904 x 149mm

Shipping weight

1260g

Package contents

Vertical cable organiser; 2 x M4 x 16mm screws; 4 x M4 nuts; 4 x 12mm washers; instruction manual

SKU	CMVER20UD
Barcode #	65030864817
Brand	Startech
Shipping Weight	1.1900kg
Shipping Width	0.120m
Shipping Height	0.080m
Shipping Length	0.925m
Shipping Cubic	0.008880000m3
