StarTech USB 3.0 SATA Hard Drive Docking Station - SATDOCKU3S
Model # SATDOCKU3S
-
SKU: SATDOCKU3S
- Pick Up Available
- Australian Warranty
- Checkout Securely
The SATDOCKU3S USB 3.0 Hard Drive Docking Station delivers full, instant access to any 2.5in or 3.5in SATA (SATA, SATA II, SATA III) hard drive (HDD) or solid state drive (SSD), without having to mount the drive in a computer or install it in an external enclosure. Large capacity drives (tested with hard drives up to 16TB at 7200 RPM) can be used to greatly enhance your computer's storage/backup capabilities.
Connected to the host computer through a single USB 3.0 SuperSpeed 5Gbps or USB 2.0 connection, the hard drive docking station provides a convenient, plug-and-play storage solution that delivers instant access to the hard drive without requiring a reboot.
Double the value of this hard drive docking station, using a SATA to IDE hard drive adapter (SAT2IDEADP), which enables you to use any 2.5 or 3.5in IDE hard drive in a SATA hard drive dock slot.
To ensure compatibility with your computer system, the SATDOCKU3S supports all of the leading operating system platforms, including: Microsoft Windows®, Apple® OSX, Linux, and Google Chrome OS™.
(SATDOCKU3S)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Chipset ID | ASMedia - ASM1053 | |
| Compatible Drive Types | SATA | |
| Drive Size | 2.5in & 3.5in | |
| Fan(s) | No | |
| Interface | USB 3.0 | |
| Number of Drives | 1 | |
| Performance | ||
| Insertion Rating | 15,000 Cycles | |
| Max Drive Capacity | Currently tested with up to 4TB 5400 RPM 3.5" hard drives and 1TB 5400 RPM 2.5" hard drive | |
| Type and Rate | USB 2.0 - 480 Mbit/s | |
| USB 3.0 - 5 Gbit/s | ||
| SATA II (3 Gbps) | ||
| UASP Support | No | |
| Connector(s) | ||
| Drive Connectors | 1 - SATA Data & Power Combo (7+15 pin) Receptacle | |
| Host Connectors | 1 - USB Type-B (9 pin) USB 3.0 Female | |
| Software | ||
| OS Compatibility | OS independent; No software or drivers required | |
| Indicators | ||
| LED Indicators | 1 - Power and Activity (Solid - Power, Blinking - Activity) | |
| Power | ||
| Center Tip Polarity | Positive | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 2.5A | |
| Output Voltage | 12 DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 30 | |
| Power Source | AC Adapter Included | |
| Environmental | ||
| Humidity | 8~80% RH | |
| Operating Temperature | 5°C to 80° (41°F to 176°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Plastic | |
| Product Height | 2.6 in [6.5 cm] | |
| Product Length | 5.7 in [14.5 cm] | |
| Product Width | 3.7 in [93 mm] | |
| Weight of Product | 13.8 oz [392 g] | |
| Packaging Information | ||
| Package Height | 3.6 in [91 mm] | |
| Package Length | 6.8 in [17.2 cm] | |
| Package Width | 6.4 in [16.2 cm] | |
| Shipping (Package) Weight | 25.7 oz [728 g] | |
| What's in the Box | ||

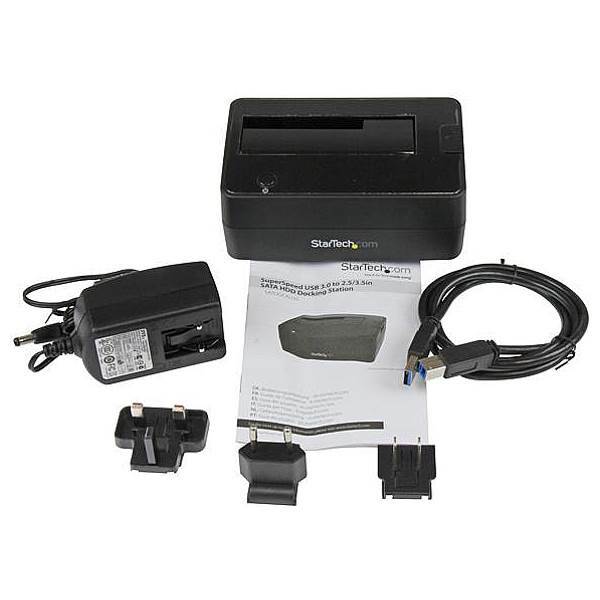

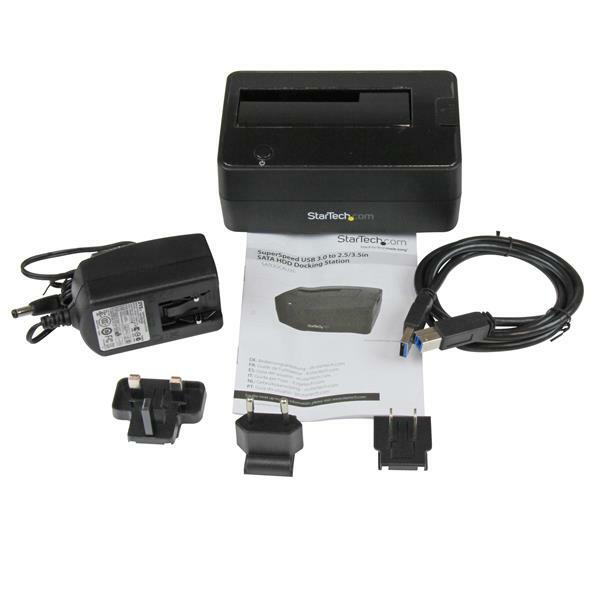

| Included in Package | 1 - USB 3.0 HDD Dock | |
| 1 - USB 3.0 Cable | ||
| 1 - Universal Power Adapter (NA,EU,UK,ANZ) | ||
| 1 - Instruction Manual | ||
| SKU | SATDOCKU3S |
| Barcode # | 65030838160 |
| Brand | STARTECH |
| Shipping Weight | 0.7500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
