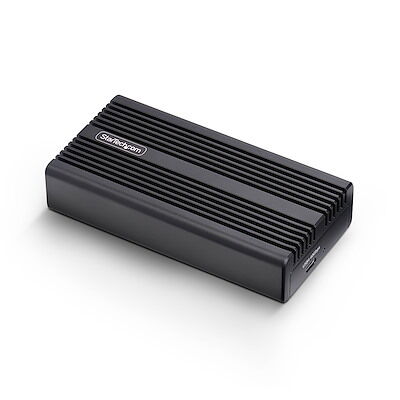

Turn your PCIe M.2 NVMe SSD into a fast and highly portable USB-C external storage solution. This NVMe enclosure supports USB4 (40Gbps), delivering read/write speeds up to 3,800 MB/s. Ideal for power users handling large media files, managing data across devices, or performing OS imaging, data recovery, and disk management.

Versatile USB-C & Thunderbolt Support

Built for current and next-gen storage, this USB4 enclosure connects M-Key or B+M Key M.2 NVMe SSDs (2230/2242/2260/2280) to USB4, Thunderbolt 5/4/3, or USB 3.2 hosts. It supports PCIe Gen 4x4 NVMe drives and offers native, driverless compatibility with Windows, macOS, and Linux. Seamless interoperability with USB-C and Thunderbolt systems makes it ideal for fast backups and high-volume data transfers.

Robust Heat Dissipation

The anodized aluminum housing features a heatsink-style cover design with a high-efficiency thermal pad to enable passive cooling during sustained workloads. The fanless construction allows for silent operation while maintaining consistent transfer rates during intensive tasks such as disk imaging or data capture.

Compact and Durable

The USB4 NVMe Enclosure's compact footprint fits comfortably in a technician's toolkit or laptop bag. The rugged aluminum housing not only helps with heat dissipation but also protects the SSD from physical damage during transport or deployment in demanding environments.

(1USB4-NVME-ENCLOSURE)

Warranty Information
Warranty
2 Years
Connector(s)
Drive Connectors
1 - M.2 (PCIe, M-Key, NVMe, NGFF)
Host Connectors
1 - USB4 (40Gbps)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
Up to 90% RH
Hardware
Fan(s)
No
Interface
USB4 (40Gbps)
Bus Type
USB4 (40Gbps)
Number of Drives
1
Drive Size
22 mm - M.2 NVMe
Compatible Drive Types
M.2 (PCIe, NVMe, M-Key, NGFF)
Supported Drive Height(s)
2230
2242
2260
2280
Chipset ID
ASMedia - ASM2464PD
Indicators
LED Indicators
1 - Solid LED: Drive detected
Quick-Flashing LED: Read/Write Activity
Packaging Information
Package Height
1.4 in [3.5 cm]
Package Length
4.5 in [11.4 cm]
Shipping (Package) Weight
15.2 oz [430.0 g]
Package Width
7.5 in [19.0 cm]
Performance
Maximum Data Transfer Rate
40Gbps
Type and Rate
USB4 (40Gbps)
UASP Support
Yes
TRIM Support
Yes
4Kn Support
Yes
S.M.A.R.T. Support
Yes
Type and Rate
NVMe (PCIe Gen 4)
Hardware Raid Supported
No
MTBF
112000 Hours
Physical Characteristics
Color
Black
Material
Aluminum
Cable Length
1.0 ft [0.3 m]
Product Length
4.9 in [124.8 mm]
Product Width
2.6 in [65 mm]
Product Height
1.1 in [28.8 mm]
Weight of Product
12.0 oz [340 g]
Power
Power Source
Bus Powered
Software
OS Compatibility
OS independent; No software or drivers required
What's in the Box
Included in Package
1 - M.2 NVMe Enclosure
1 - Thermal Pad (Pre-installed)
1 - USB4 Cable
1 - Philips Head Screwdriver
1 - Product Documentation
SKU 1USB4-NVME-ENCLOSURE
Barcode # 65030907248
Brand STARTECH
Shipping Weight 0.4800kg
Manufacturer Warranty
