1U universal rack fit
Fits standard 19-inch racks and cabinets using a front-mounted fixed design.
StarTech 1U 7" Depth Fixed Rack Mount Shelf - CABSHELF1U
Model # CABSHELF1U
-
SKU: CABSHELF1U
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CABSHELF1U

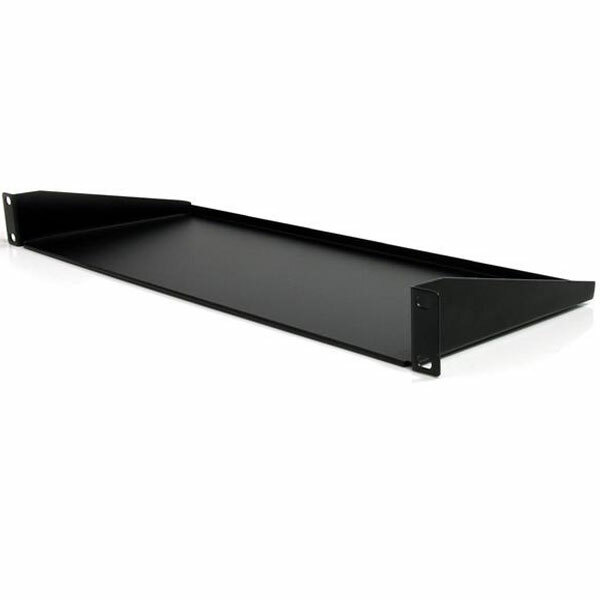

StarTech 1U Universal 19-inch Rack Shelf - 7-inch Deep
Support compact non-rackmount equipment in a standard 19-inch rack with a shallow 1U fixed shelf. The 7-inch-deep steel platform carries up to 15kg.
1U7-inch deep15kg (33lb) capacitylifetime warranty
Product overview
CABSHELF1U adds a compact front-mounted surface for small routers, modems, peripherals and tools. Its shallow, non-vented SPCC steel design is useful where equipment does not require a full-depth shelf.
Features that matter
Equipment support
Supports compact non-rackmount equipment weighing up to 15kg (33lb).
Durable steel construction
Black SPCC cold-rolled steel construction with a solid, non-vented shelf plate.
Installation hardware included

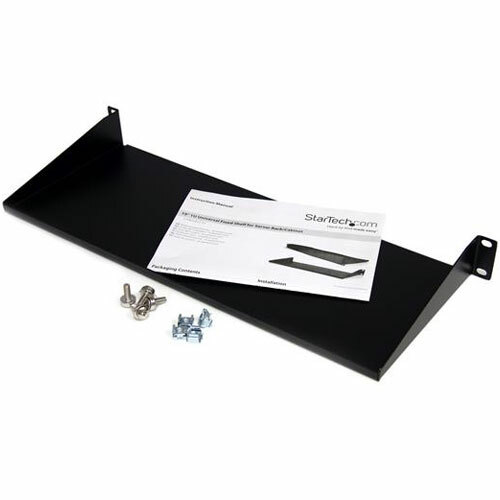

Includes one rack shelf, four M6 screws and four M6 cage nuts.
What to know before ordering
Choose it for
Supporting compact routers, modems, peripherals, tools and other shallow non-rackmount devices.
Check the depth
The shelf is 178mm (7 inches) deep; confirm the equipment base fits safely on the platform.
Mounting note
This is a shallow front-mounted shelf. Check load balance, rack stability and cable clearance.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CABSHELF1U?
CABSHELF1U is a shallow fixed 1U shelf for compact non-rackmount equipment in a 19-inch rack.
How much rack space does CABSHELF1U use?
CABSHELF1U occupies 1U in a standard 19-inch rack or cabinet.
What is the shelf depth?
The shelf is 178mm (7 inches) deep.
How much weight can it support?
CABSHELF1U supports up to 15kg (33lb) when installed in accordance with StarTech.com instructions and rack requirements.
Is the shelf vented?
No. CABSHELF1U uses a solid, non-vented shelf plate.
Which racks can use it?
Fits standard 19-inch racks and cabinets using a front-mounted fixed design.
What is included in the package?
Includes one rack shelf, four M6 screws and four M6 cage nuts.
What warranty applies in Australia?
CABSHELF1U is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CABSHELF1U)
Features and highlights
CABSHELF1U key capabilities
Product-specific highlights verified for this exact StarTech.com model.
1U universal rack fit
Fits standard 19-inch racks and cabinets using a front-mounted fixed design.
Equipment support
Supports compact non-rackmount equipment weighing up to 15kg (33lb).
Durable steel construction
Black SPCC cold-rolled steel construction with a solid, non-vented shelf plate.
Installation hardware included
Includes one rack shelf, four M6 screws and four M6 cage nuts.
Key highlights
- Fits standard 19-inch racks and cabinets using a front-mounted fixed design.
- Supports compact non-rackmount equipment weighing up to 15kg (33lb).
- Black SPCC cold-rolled steel construction with a solid, non-vented shelf plate.
- Includes one rack shelf, four M6 screws and four M6 cage nuts.
- Official lifetime StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CABSHELF1U
Verified specifications and package details for the exact model.
General
Product type
Fixed rack shelf
Rack units
1U
Rack width
19 inches
Mounting style
Front mount
Shelf type
Non-vented
Weight capacity
15kg (33lb)
Warranty
Lifetime
Physical Characteristics
Material
SPCC cold-rolled steel
Colour
Black
Product dimensions (L x W x H)
178 x 443 x 45mm
Product weight
1202.5g
Packaging and In the Box
Package dimensions (L x W x H)
502 x 200 x 76mm
Shipping weight
1522g
Package contents
Rack shelf; 4 x M6 screws; 4 x M6 cage nuts
| SKU | CABSHELF1U |
| Barcode # | 65030844154 |
| Brand | STARTECH |
| Shipping Weight | 1.5400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.490m |
| Shipping Cubic | 0.002450000m3 |
Official StarTech.com manufacturer warranty
Lifetime
This item is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CABSHELF1U.
