Universal rack fit
Designed for front mounting in standard 19-inch racks and cabinets.
StarTech 2U 115cm Universal Rack Mount Shelf - CABSHELFV
Model # CABSHELFV
-
SKU: CABSHELFV
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CABSHELFV

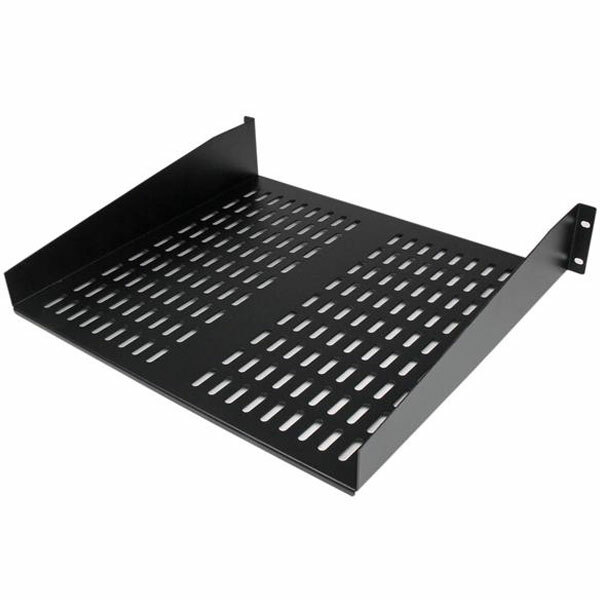

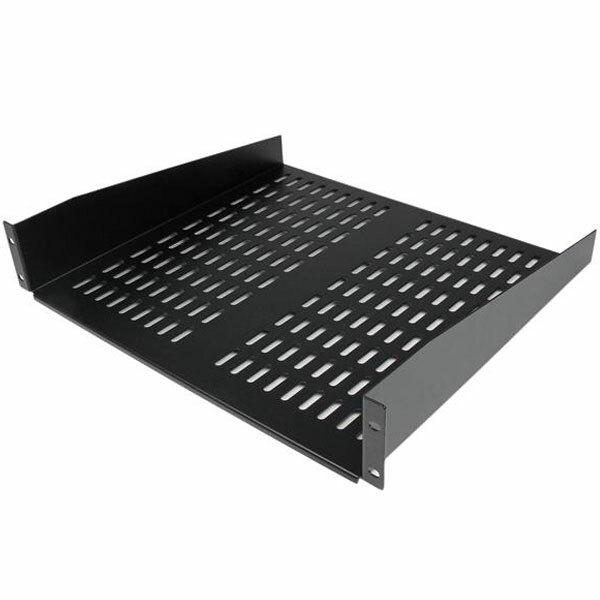

StarTech 2U Vented 19-inch Rack Shelf - 16-inch Deep
Add a heavy-duty vented platform for non-rackmount equipment to a standard 19-inch rack or cabinet. The 2U front-mounted shelf is 16 inches deep and supports up to 23kg.
2U16-inch deep23kg (50lb) capacitylifetime warranty
Product overview
CABSHELFV provides accessible rack storage for network, server, AV, tools and peripheral equipment without rack ears. Its perforated SPCC cold-rolled steel platform supports airflow and a stationary load up to 23kg.
Features that matter
Vented equipment support
The vented platform supports non-rackmount equipment weighing up to 23kg (50lb).
Durable steel construction
Black SPCC cold-rolled steel construction for durable rack storage.
Installation hardware included

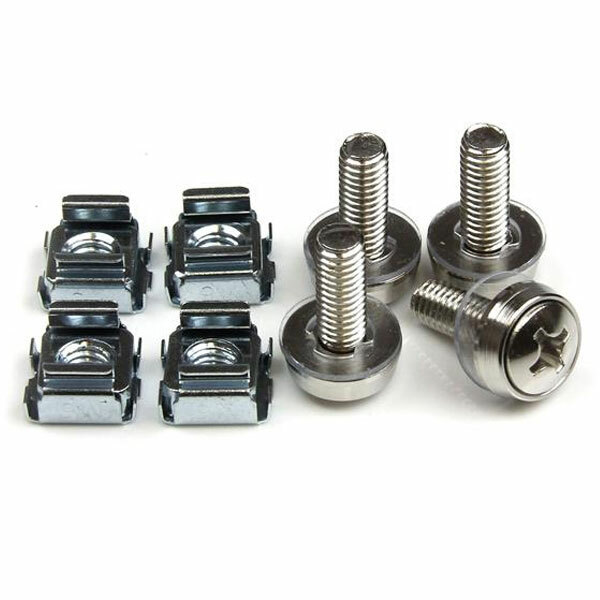

Includes one 2U fixed shelf, four M5 cage nuts, four M5 screws and an instruction manual.
What to know before ordering
Choose it for
Supporting network, server, AV, tools and other non-rackmount equipment in an accessible rack position.
Check equipment depth
The platform is 406mm deep; confirm equipment footprint, cable clearance and rack-door clearance.
Mounting note
This cantilever shelf mounts at the front only and occupies 2U. Observe rack stability and loading requirements.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CABSHELFV?
CABSHELFV is a front-mounted, vented 2U shelf for non-rackmount equipment in a 19-inch rack.
How much rack space does it use?
CABSHELFV occupies 2U in a standard 19-inch rack or cabinet.
What is the shelf depth?
The shelf platform is 406mm (16 inches) deep.
How much weight can the shelf support?
CABSHELFV supports up to 23kg (50lb) when installed according to StarTech.com instructions and rack requirements.
Is the shelf vented?
Yes. The perforated shelf plate is designed to support passive airflow around installed equipment.
Which racks can use it?
Designed for front mounting in standard 19-inch racks and cabinets.
What is included with CABSHELFV?
Includes one 2U fixed shelf, four M5 cage nuts, four M5 screws and an instruction manual.
What warranty applies in Australia?
CABSHELFV is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CABSHELFV)
Features and highlights
CABSHELFV key capabilities
Product-specific highlights verified for this exact StarTech.com model.
Universal rack fit
Designed for front mounting in standard 19-inch racks and cabinets.
Vented equipment support
The vented platform supports non-rackmount equipment weighing up to 23kg (50lb).
Durable steel construction
Black SPCC cold-rolled steel construction for durable rack storage.
Installation hardware included
Includes one 2U fixed shelf, four M5 cage nuts, four M5 screws and an instruction manual.
Key highlights
- Designed for front mounting in standard 19-inch racks and cabinets.
- The vented platform supports non-rackmount equipment weighing up to 23kg (50lb).
- Black SPCC cold-rolled steel construction for durable rack storage.
- Includes one 2U fixed shelf, four M5 cage nuts, four M5 screws and an instruction manual.
- Official lifetime StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CABSHELFV
Verified specifications and package details for the exact model.
General
Product type
Fixed vented rack shelf
Rack units
2U
Rack width
19 inches
Mounting option
Front mount (front only)
Weight capacity (stationary)
23kg (50lb)
Cable management
No
TAA compliant
Yes
Warranty
Lifetime
UPC
065030848084
Physical Characteristics
Material
SPCC cold-rolled steel
Colour
Black
Product dimensions (L x W x H)
483 x 406 x 88mm
Product weight
2539g
Packaging and In the Box
Package dimensions (W x D x H)
479 x 562 x 106mm
Shipping weight
3194g
Package contents
2U fixed shelf; 4 x M5 cage nuts; 4 x M5 screws; instruction manual
| SKU | CABSHELFV |
| Barcode # | 65030848084 |
| Brand | STARTECH |
| Shipping Weight | 3.6600kg |
| Shipping Width | 0.440m |
| Shipping Height | 0.120m |
| Shipping Length | 0.510m |
| Shipping Cubic | 0.026928000m3 |
Official StarTech.com manufacturer warranty
Lifetime
This item is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CABSHELFV.
