StarTech.com SM2NGFFMBU33

USB 3.0 enclosure for M.2 SATA SSDs with UASP

A compact aluminium USB 3.0 enclosure for one M.2 SATA B-key/NGFF SSD, with up to 5Gbps host bandwidth, UASP and USB bus power.

1 × M.2 SATAUSB 3.0 / 5GbpsUASP2-year warranty

StarTech SM2NGFFMBU33 USB 3.0 M.2 SATA SSD enclosure

Key capabilities

M.2 SATA support

Supports compatible M.2 SATA B-key and B+M-key SSDs.

USB 3.0 5Gbps

Connects through USB 3.0 with up to 5Gbps host bandwidth.

UASP support

UASP is supported with compatible hosts for improved transfer efficiency.

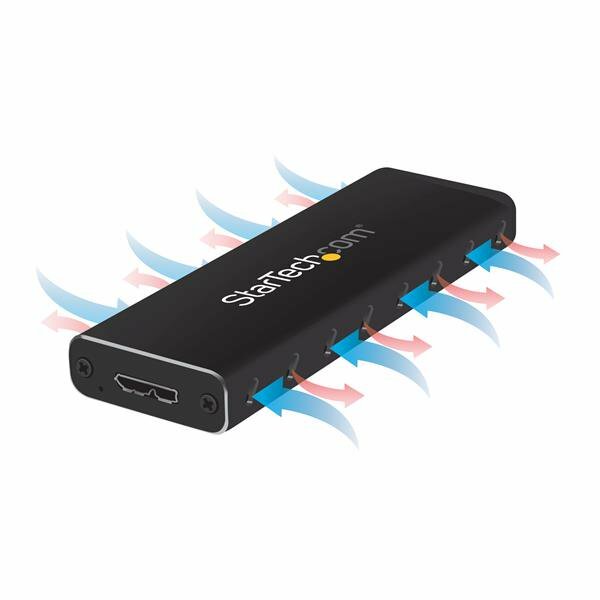

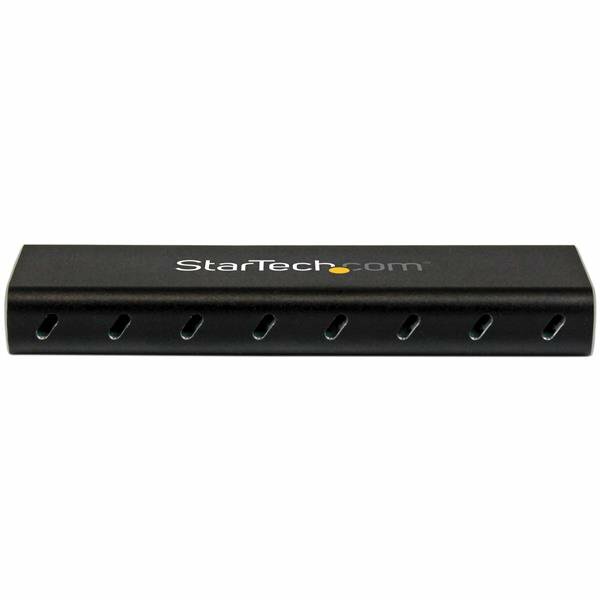

Portable aluminium enclosure

USB-powered aluminium construction with ventilation supports mobile use.

What to know before buying

This enclosure is for M.2 SATA SSDs only. It is explicitly not compatible with M.2 NVMe or AHCI PCIe SSDs.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What drives does SM2NGFFMBU33 support?

One compatible M.2 SATA B-key or B+M-key SSD.

Does it support NVMe?

No.

What USB speed is supported?

Up to 5Gbps.

Does it support UASP?

Yes.

Which M.2 lengths are supported?

The source description lists common 2242, 2260 and 2280 lengths, while current product support also includes 2230 mounting.

Does it require an external power adapter?

No. It is USB-powered.

What enclosure material is used?

Aluminium.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SM2NGFFMBU33)

Features and highlights

M.2 SATA support

Supports compatible M.2 SATA B-key and B+M-key SSDs.

USB 3.0 5Gbps

Connects through USB 3.0 with up to 5Gbps host bandwidth.

UASP support

UASP is supported with compatible hosts for improved transfer efficiency.

Portable aluminium enclosure

USB-powered aluminium construction with ventilation supports mobile use.

1 × M.2 SATA
USB 3.0 / 5Gbps
UASP
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SM2NGFFMBU33.

Warranty Information

Warranty	2 Years

Hardware

Bus Type	USB 3.0
Chipset ID	ASMedia - ASM1153E
Compatible Drive Types	M.2 (SATA, B-Key, NGFF)
Compatible Drive Types	M.2 SATA (NGFF, B+M-Key)
Drive Installation	Fixed
Interface	USB 3.0
Number of Drives	1

Performance

4Kn Support	Yes
General Specifications	Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
Maximum Data Transfer Rate	5 Gbps
TRIM Support	No
Type and Rate	USB 3.0 - 5 Gbit/s
Type and Rate	SATA III (6 Gbps)
UASP Support	Yes

Connector(s)

Drive Connectors	1 - M.2 (SATA, B-Key, NGFF) Receptacle

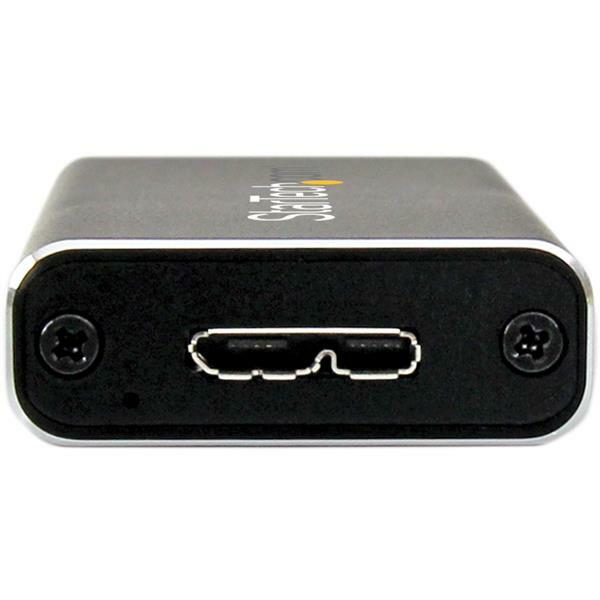

Host Connectors	1 - USB 3.0 Micro-B (10 pin, SuperSpeed) Female

Software

OS Compatibility	OS independent; No software or drivers required

Power

Power Source	USB-Powered

Environmental

Humidity	5% to 95% RH
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-10°C to 85°C (14°F to 185°F)

Physical Characteristics

Color	Black
Enclosure Type	Aluminum
Product Height	0.6 in [1.5 cm]
Product Length	3.9 in [10 cm]
Product Width	1.4 in [35 mm]
Weight of Product	1.8 oz [50 g]

Packaging Information

Package Height	1.2 in [31 mm]
Package Length	5.2 in [13.1 cm]
Package Width	6.4 in [16.3 cm]
Shipping (Package) Weight	4.4 oz [125 g]

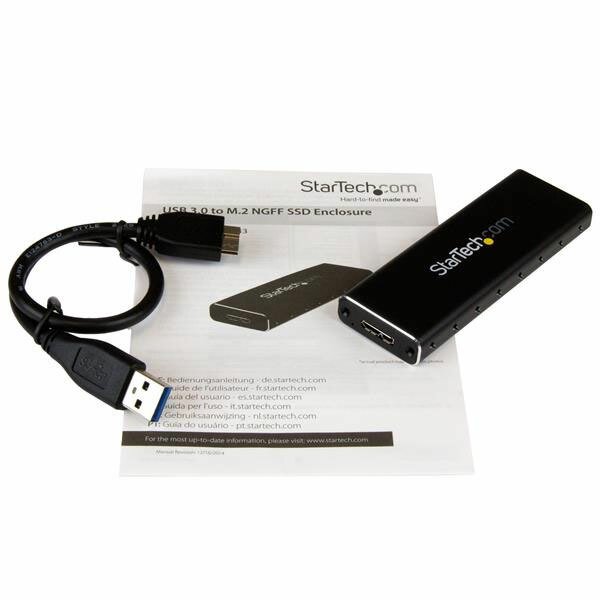

What's in the Box

Included in Package	1 - USB 3.0 to M.2 NGFF SSD Enclosure
Included in Package	1 - USB 3.0 Cable
Included in Package	1 - SSD screw kit
Included in Package	1 - Mini screw driver
Included in Package	1 - Instruction manual

SKU	SM2NGFFMBU33
Barcode #	65030859684
Brand	Startech
Shipping Weight	0.1300kg
Shipping Width	0.130m
Shipping Height	0.030m
Shipping Length	0.162m
Shipping Cubic	0.000632000m3
