StarTech.com · CMDUCT2U

StarTech 2U Horizontal Finger Duct Rack Cable Manager

Organise higher cable volumes across a 19-inch rack with a 2U horizontal finger duct, rear pass-through openings and a removable front cover.

2UFinger ductRemovable cover2-year warranty

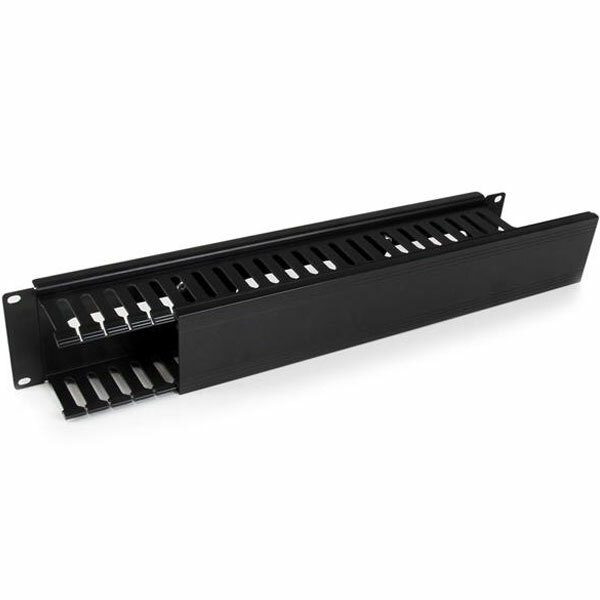

StarTech CMDUCT2U two U horizontal finger duct rack cable manager

Product overview

CMDUCT2U is a front-mount horizontal cable manager for 2-post and 4-post 19-inch racks. Its 2U height provides more routing space than a 1U duct while keeping patch leads accessible and covered.

Features that matter

Higher-capacity 2U duct

The two-rack-unit design provides additional routing space for larger groups of patch leads.

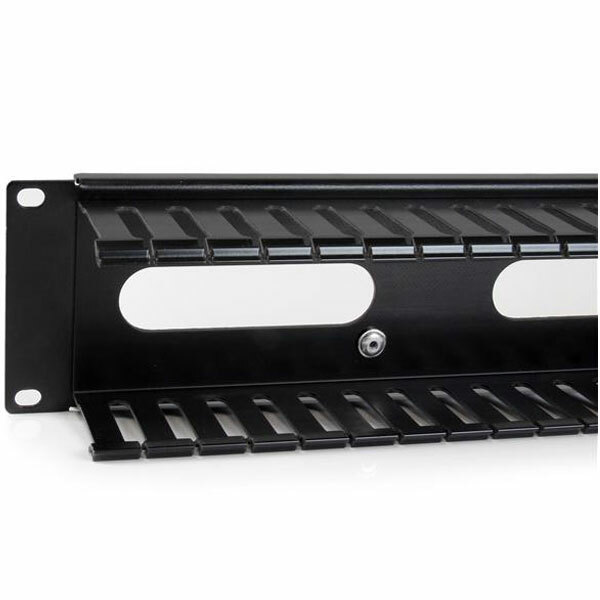

Side routing fingers

Individual fingers help separate and guide cables into the horizontal duct.

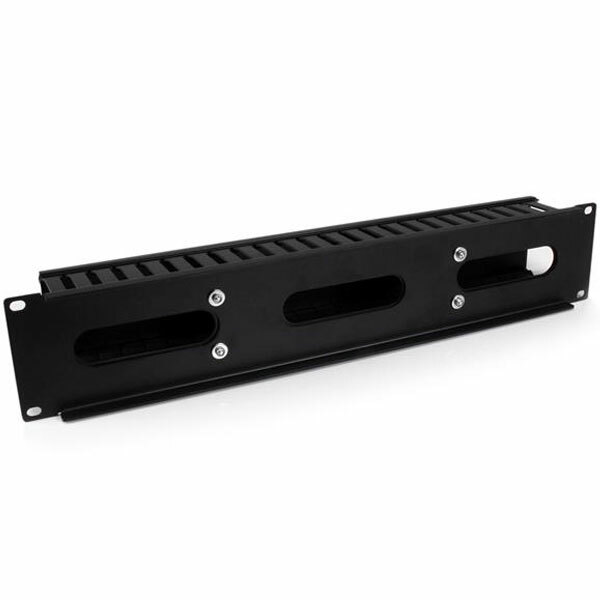

Rear pass-through openings

Back-panel openings let cables enter or exit toward equipment and vertical management paths.

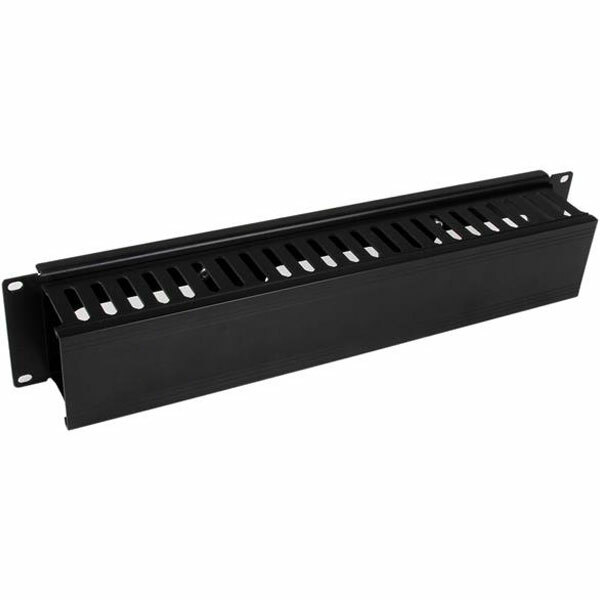

Removable front cover

The cover conceals routed cables and removes for easier installation, changes and maintenance.

What to know before ordering

Rack compatibility

Confirm a free 2U position in a standard 19-inch 2-post or 4-post rack.

Cable planning

Capacity depends on cable diameter, connector size and required bend radius; avoid overfilling the duct.

Front clearance

The duct projects forward from the rack rails, so allow sufficient clearance inside any rack door.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CMDUCT2U?

CMDUCT2U is a 2U horizontal finger duct cable manager for organising larger cable groups across a 19-inch rack.

Which racks are compatible?

It is designed for standard 19-inch 2-post or 4-post racks that follow EIA RS310-D dimensions.

How much rack space does it use?

It occupies 2U of rack height.

Can cables enter from the rear?

Yes. Rear pass-through openings support routing between the duct and rack equipment.

Is the cover removable?

Yes. The front cover removes to simplify cable installation and maintenance.

Does it require a driver?

No driver or software is involved; this is passive rack cable-management hardware.

What is included in the package?

The package contains one horizontal cable duct, four M6 x 12 screws, four M6 cage nuts, four plastic washers and one quick-start guide.

What warranty applies in Australia?

CMDUCT2U is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CMDUCT2U)

Features and highlights

CMDUCT2U key capabilities

Product-specific highlights verified for this exact StarTech.com model.

Higher-capacity 2U duct

The two-rack-unit design provides additional routing space for larger groups of patch leads.

Side routing fingers

Individual fingers help separate and guide cables into the horizontal duct.

Rear pass-through openings

Back-panel openings let cables enter or exit toward equipment and vertical management paths.

Removable front cover

The cover conceals routed cables and removes for easier installation, changes and maintenance.

Key highlights

2U horizontal cable duct
Side routing fingers
Rear cable pass-throughs
Removable front cover
Official two-year StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CMDUCT2U

Verified specifications and package details for the exact model.

General and Compatibility

Product type

Horizontal finger duct cable manager

Rack height

Rack width

19-inch

Rack type

2-post or 4-post

Mounting position

Front horizontal

Standards

EIA RS310-D

Warranty

2 Years

Construction and Routing

Material

Steel and plastic

Colour

Black

Cable access

Side fingers and rear pass-through openings

Cover

Removable front cover

Physical and Packaging

Product dimensions (W x D x H)

482.6 x 71.6 x 88.4mm

Product weight

970g

Package dimensions (W x D x H)

150 x 545 x 145mm

Shipping weight

1500g

Package contents

Horizontal duct; 4 x M6 x 12 screws; 4 x M6 cage nuts; 4 x plastic washers; quick-start guide

SKU	CMDUCT2U
Barcode #	65030859103
Brand	STARTECH
Shipping Weight	1.2900kg
Shipping Width	0.130m
Shipping Height	0.100m
Shipping Length	0.542m
Shipping Cubic	0.007046000m3
