StarTech.com RK8OD

8U two-post open-frame desktop rack

A compact freestanding 8U steel rack for mounting smaller 19-inch AV, networking and IT equipment on a desk, workbench or other suitable flat surface.

8U50 kg capacity2-post open frameLifetime warranty

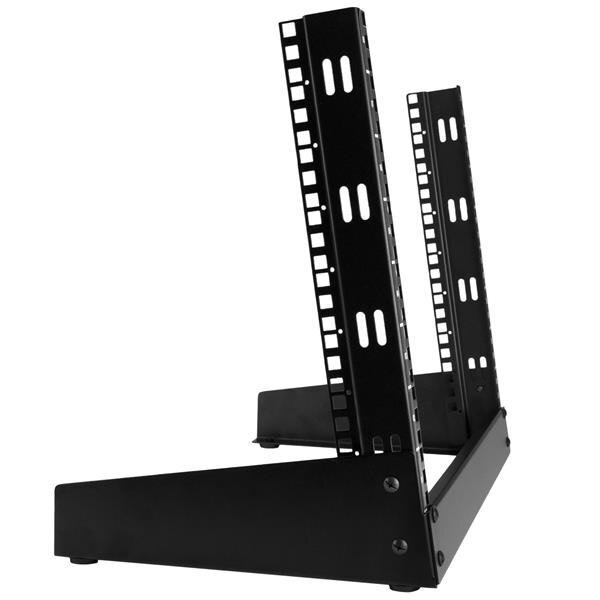

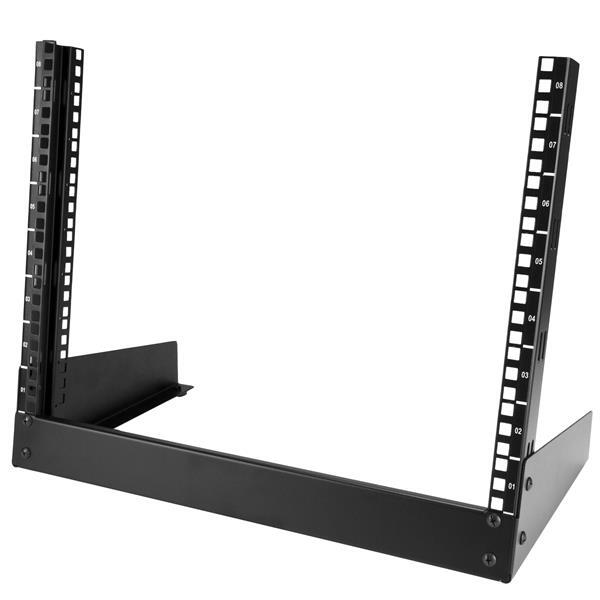

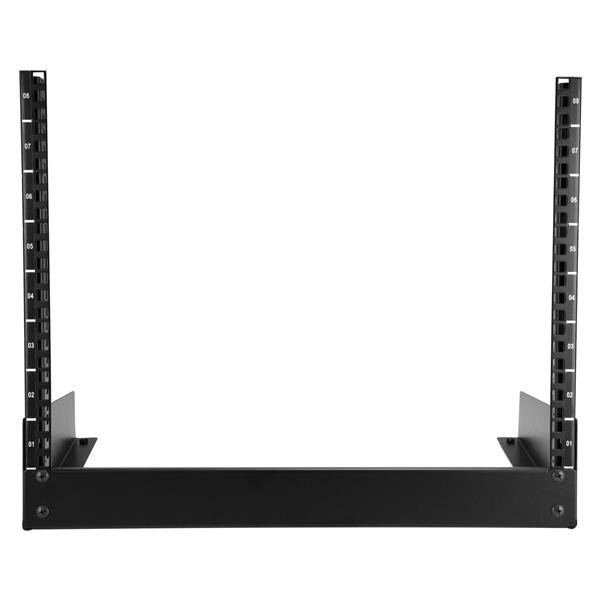

StarTech RK8OD 8U two-post desktop open-frame rack

Key capabilities

8U desktop rack

Provides eight rack units in a freestanding two-post design for compatible 19-inch equipment.

50 kg capacity

The supplied exact-SKU specification lists a maximum equipment load of 110.5 lb (50 kg).

Open-frame accessibility

Keeps installed equipment accessible from the front and rear while using a compact desktop footprint.

Assembly hardware included

Includes frame pieces, rubber feet, assembly screws, 20 M5 screws and 20 M5 cage nuts.

What to know before buying

This is a freestanding desktop rack and is not specified as wall-mountable. It ships flat-packed and requires assembly. Confirm the equipment depth and total load are suitable for the rack and supporting surface.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech RK8OD designed for?

It provides 8U of freestanding two-post rack space for compatible 19-inch AV, networking and IT equipment.

Can the RK8OD be wall mounted?

No. The exact specification lists it as not wall-mountable.

How much weight can it support?

The supplied exact-SKU specification lists a 110.5 lb (50 kg) capacity.

Does it require assembly?

Yes. It ships flat-packed and requires assembly.

What rack standard does it use?

It follows EIA/ECA-310-E with square cage-nut mounting holes and a G-shaped rail profile.

What are the product dimensions?

The supplied specification lists approximately 11.5 x 19.8 x 16.1 inches (29.2 x 50.4 x 41 cm), length x width x height.

What hardware is included?

The package includes the rack frame parts, four rubber feet, eight assembly screws, 20 M5 screws, 20 M5 cage nuts and an instruction manual.

What warranty applies to the StarTech RK8OD in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(RK8OD)

Features and highlights

8U desktop rack

Provides eight rack units in a freestanding two-post design for compatible 19-inch equipment.

50 kg capacity

The supplied exact-SKU specification lists a maximum equipment load of 110.5 lb (50 kg).

Open-frame accessibility

Keeps installed equipment accessible from the front and rear while using a compact desktop footprint.

Assembly hardware included

Includes frame pieces, rubber feet, assembly screws, 20 M5 screws and 20 M5 cage nuts.

8U
50 kg capacity
2-post open frame
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com warranty terms and assessment.

Specifications

Verified specifications for StarTech RK8OD.

Hardware

Warranty	Lifetime
Frame type	Open Frame
Industry standard	EIA/ECA-310-E
Mounting hole type	Square (For Cage Nut)
Mounting rail profile	G-Shape
Rack type	2-Post
Special features	Easy Assembly; U-Markings
U height	8U
Wallmountable	No

Performance

Weight capacity	110.5 lb [50 kg]

Physical Characteristics

Colour	Black
Construction material	Steel
Product height	16.1 in [41 cm]
Product length	11.5 in [29.2 cm]
Product width	19.8 in [50.4 cm]
Weight of product	4.8 lb [2.2 kg]

Packaging

Flat pack / assembly required	Yes
Package height	3.2 in [81 mm]
Package length	21.7 in [55 cm]
Package width	4.4 in [11.2 cm]
Shipping weight	5.8 lb [2.6 kg]

What's in the Box

Left base bracket	1
Right base bracket	1
Left vertical rail	1
Right vertical rail	1
Front base bracket	1
Rubber feet	4
Assembly screws	8
M5 screws	20
M5 cage nuts	20
Instruction manual	1

SKU	RK8OD
Barcode #	65030866408
Brand	STARTECH
Shipping Weight	2.8200kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.550m
Shipping Cubic	0.002750000m3

Lifetime official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
