StarTech.com · M2E4SFF8643

StarTech M2E4SFF8643 M.2 PCIe to U.2 NVMe Host Adapter

M.2 PCIe to U.2 NVMe Host Adapter designed for professional IT, electronics, security or workstation use.

Quick answer: M2E4SFF8643 connects one 2.5in U.2 PCIe NVMe SSD to an M-Key M.2 PCIe x4 host slot.

Best forDesktop and server upgrades that need a U.2 NVMe SSD connected through an available motherboard M.2 PCIe x4 interface.

Check before orderingRequires an M-Key M.2 PCIe x4 host slot and a compatible U.2 NVMe drive/cable; it does not convert SATA.

Answers before you buy

What is StarTech M2E4SFF8643?

It is a internal M.2 PCIe x4 to U.2 SFF-8643 drive adapter that connects one 2.5in U.2 PCIe NVMe SSD to an M-Key M.2 PCIe x4 host slot.

Which connections or mounting method are provided?

M.2 M-Key PCIe x4 host connector to one SFF-8643 36-pin U.2 drive connector

What performance is specified?

PCI Express 3.0 x4 path for one U.2 PCIe NVMe SSD

How is the product constructed?

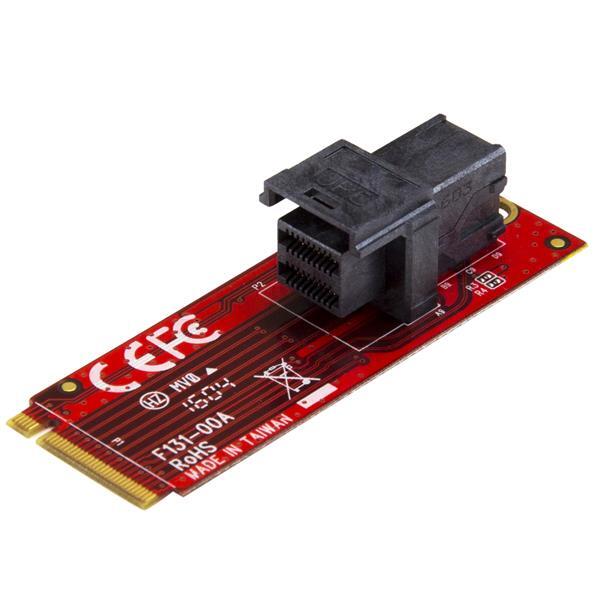

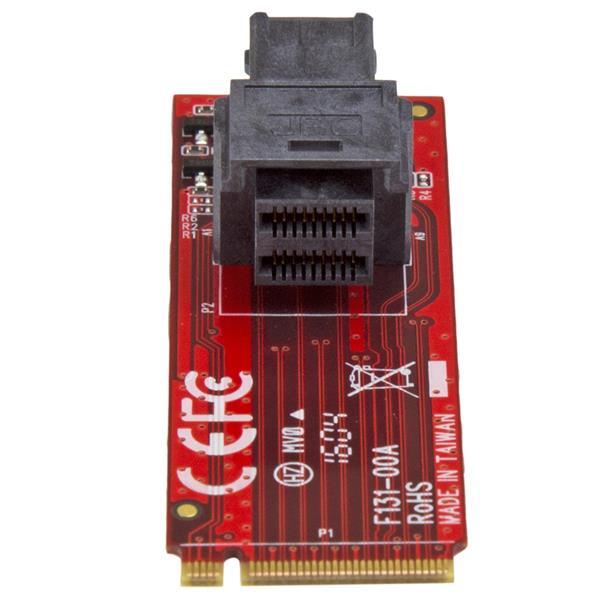

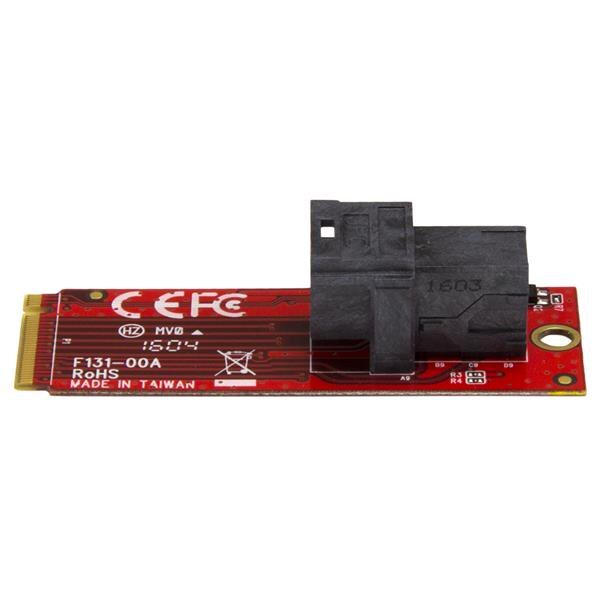

Compact red fixed-installation adapter card supplied with mounting screw

Which host slot is required?

The computer must provide an M-Key M.2 PCIe x4 slot.

Does it support SATA drives?

No. It is intended for U.2 PCIe NVMe drives using an SFF-8643 connection.

What should be checked before ordering?

Requires an M-Key M.2 PCIe x4 host slot and a compatible U.2 NVMe drive/cable; it does not convert SATA.

What warranty applies?

M2E4SFF8643 carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(M2E4SFF8643)

Features & highlights

Why choose M2E4SFF8643?

?Purpose-built designM.2 M-Key PCIe x4 host connector to one SFF-8643 36-pin U.2 drive connector

?Specified performancePCI Express 3.0 x4 path for one U.2 PCIe NVMe SSD

?Professional constructionCompact red fixed-installation adapter card supplied with mounting screw

?Key capabilityAdds a U.2 NVMe connection without replacing a compatible motherboard.

?Deployment advantageOS-independent passive adapter requires no drivers or software.

?Order with confidenceRequires an M-Key M.2 PCIe x4 host slot and a compatible U.2 NVMe drive/cable; it does not convert SATA.

Compatibility reminder: Requires an M-Key M.2 PCIe x4 host slot and a compatible U.2 NVMe drive/cable; it does not convert SATA.

Technical specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Host Interface	M.2 PCIe x4, M-Key
Drive Type	U.2 PCIe NVMe
Number of Drives	1
Installation	Fixed
Connectors
Drive Connector	1 × SFF-8643, 36-pin, PCIe Gen 3 x4
Host Connector	1 × M.2 M-Key PCIe
Software
OS Compatibility	OS independent; no drivers required
Physical Characteristics
Colour	Red
Dimensions	63 × 21 × 15mm
Product Weight	8g
What's in the Box
Included	Drive adapter card; mounting screw; quick-start guide

Sources: https://www.devicedeal.com.au/startech-u.2-sff-8643-to-m.2-pci-express-3.0-x4-ho and https://www.startech.com/

Manufacturer warranty

2 Years

This Australian-version product is supplied by DeviceDeal and is covered by the 2-year manufacturer warranty term listed for this exact product.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
