StarTech 6U 12in Deep Wall Mounting Bracket - WALLMOUNT6
Model # WALLMOUNT6
-
SKU: WALLMOUNT6
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com 6U 35cm-Deep Wall-Mount Network Rack
A fully assembled 6U, 2-post open-frame wall-mount bracket for shallow 19-inch patch panels, switches and IT equipment, built from cold-rolled steel and rated for up to 20kg.
Why choose WALLMOUNT6?
6U 2-post open-frame rack for shallow 19-inch equipment.
Maximum mounting depth of 35cm.
Cold-rolled steel construction supports up to 20kg.
Best-fit applications
- Wall-mount patch panels and shallow network switches
- Create an accessible small-office or communications-room rack
- Free desk and floor space where a full-depth cabinet is unnecessary
Australian warranty assurance
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for lifetime. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Information verified against the supplied DeviceDeal source workbook, the exact DeviceDeal product page and exact-SKU official StarTech.com product data.
Read DeviceDeal buying guidesFrequently asked questions
What does StarTech.com WALLMOUNT6 do?
A fully assembled 6U, 2-post open-frame wall-mount bracket for shallow 19-inch patch panels, switches and IT equipment, built from cold-rolled steel and rated for up to 20kg.
Which equipment works with WALLMOUNT6?
It accepts standard 19-inch equipment within 6U, a maximum mounting depth of 35cm and the 20kg total load limit.
What inputs and outputs does WALLMOUNT6 provide?
This is a mechanical 19-inch rack with square cage-nut holes; it has no electronic inputs or outputs.
What performance does WALLMOUNT6 support?
The rack provides 6U, supports up to 20kg and has a maximum mounting depth of 35cm.
How is WALLMOUNT6 installed or controlled?
The bracket ships fully assembled and is secured to a suitable wall. U-markings aid equipment alignment.
What is included with WALLMOUNT6?

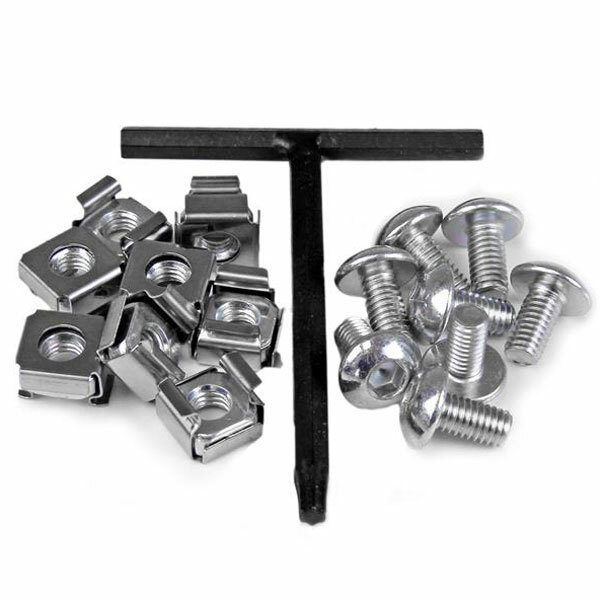

6U wall rack, 12 M6 screws, 12 M6 cage nuts, 12 plastic washers, four M5-25 screws, four wall anchors and instruction manual.
What should I check before buying WALLMOUNT6?
Confirm equipment depth and keep the combined load within 20kg. The wall and fasteners must safely support the rack and equipment; select anchors appropriate for the wall construction.
What warranty applies to WALLMOUNT6 in Australia?
This Australian version supplied by DeviceDeal carries the official StarTech.com lifetime manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; eligibility and assessment are subject to StarTech terms.
(WALLMOUNT6)
Features and highlights
- 6U 2-post open-frame rack for shallow 19-inch equipment
- Maximum mounting depth of 35cm
- Cold-rolled steel construction supports up to 20kg
- Square mounting holes accept the supplied M6 cage nuts
- Ships fully assembled with U-markings for easier equipment placement
StarTech.com 6U 35cm-Deep Wall-Mount Network Rack
Product ID: WALLMOUNT6
Rack design
| Rack height | 6U |
|---|---|
| Rack type | 2-post open frame |
| Equipment width | Standard 19-inch |
| Mounting holes | Square, for cage nuts |
| Standard | EIA/ECA-310-E |
Capacity and dimensions
| Maximum mounting depth | 35cm (13.8in) |
|---|---|
| Weight capacity | 20kg |
| Product dimensions | 35 x 49.8 x 27.3cm |
| Product weight | 4.8kg |
| Construction | Black cold-rolled steel |
Installation and warranty
| Assembly | Ships fully assembled |
|---|---|
| Mounting hardware | M6 screws and cage nuts included |
| Warranty | Lifetime |
| SKU | WALLMOUNT6 |
| Barcode # | 65030822831 |
| Brand | STARTECH |
| Shipping Weight | 6.4400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.530m |
| Shipping Cubic | 0.002650000m3 |
Lifetime StarTech.com warranty
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for lifetime. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Keep your proof of purchase: retain the DeviceDeal tax invoice supplied with your order.
