StarTech 1-port PCI Express RS232 Serial Adapter Card, PCIe Serial DB9 - PEX1S953LP
Model # PEX1S953LP
-
SKU: PEX1S953LP
- Pick Up Available
- Australian Warranty
- Checkout Securely

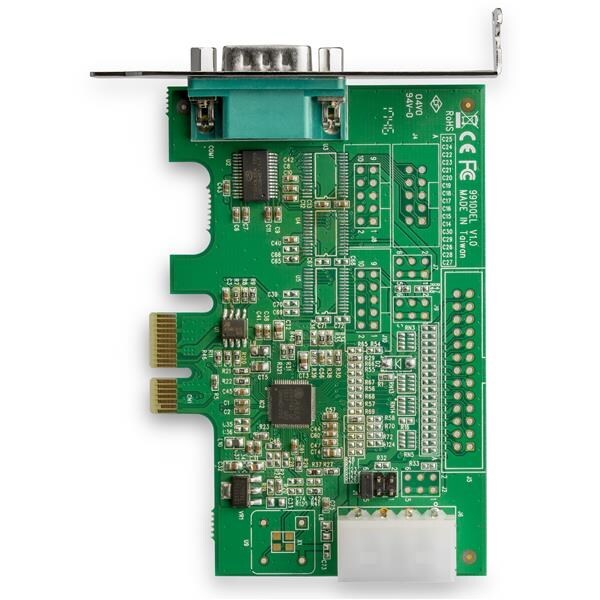

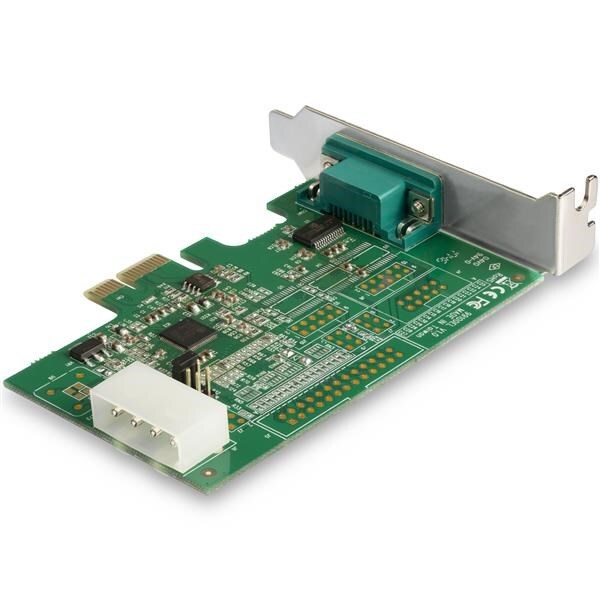

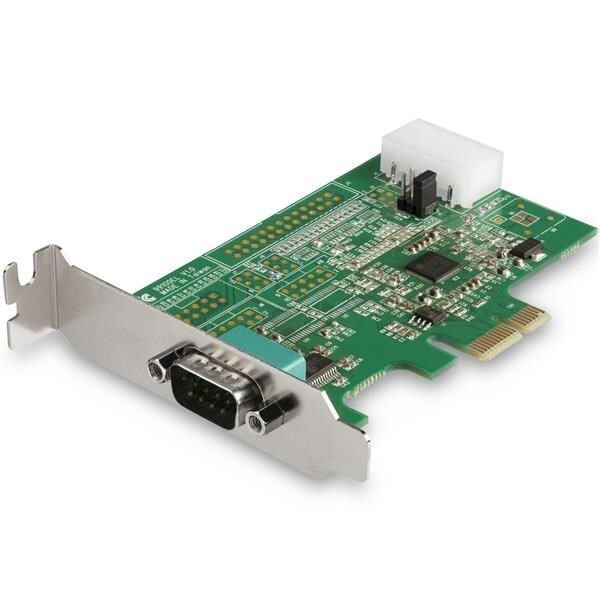

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
- Compatible with industry standard 16950 UART
- Supports max baud rate of up-to 921.4Kbps
- Provides 5/12V power output on Pin 9 when external power is connected
- 128-byte depth FIFO per transmitter and receiver
- Supports 9, 8, 7, 6, 5 data bits
- Asix AX99100 chipset
- PCI Express 1.1 compliant
PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
(PEX1S953LP)
Specifications
| Warranty Information | Warranty | Lifetime |
|---|---|---|
| Connector(s) | 1 - Connector Type(s) | PCI Express x1 |
| 1 - Internal Ports | LP4 (4 pin; Large Drive Power) | |

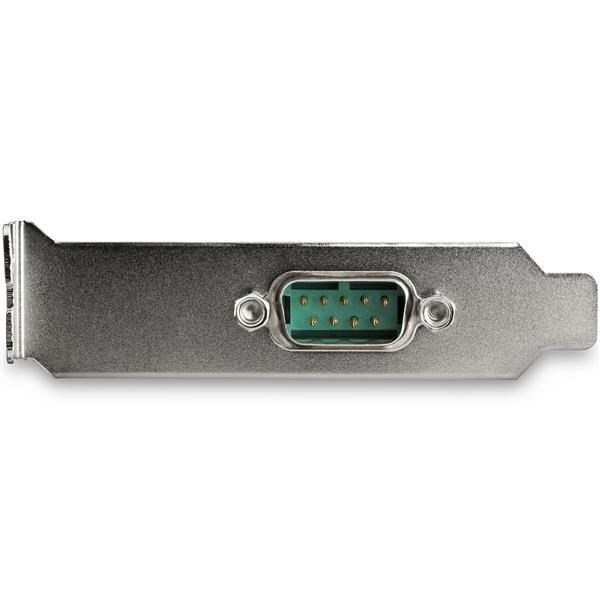

| 1 - External Ports | DB-9 (9 pin, D-Sub) | |
| Environmental | Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) | |
| Humidity | 20~80% RH | |
| Hardware | Ports | 1 |
| Interface | Serial | |
| Bus Type | PCI Express | |
| Card Type | Low Profile (SP bracket incl.) | |
| Port Style | Integrated on Card | |
| Chipset ID | Asix AX99100 | |
| Packaging Information | Package Height | 1.2 in [30.0 mm] |
| Package Length | 6.7 in [17.0 cm] | |
| Shipping (Package) Weight | 4.0 oz [112.0 g] | |
| Package Width | 5.6 in [14.2 cm] | |
| Performance | Serial Protocol | RS-232 |
| Max Baud Rate | 921.6 Kbps | |
| Data Bits | 5, 6, 7, 8, 9 | |
| FIFO | 256 Bytes | |
| Flow Control | None, Xon/Xoff, RTS/CTS | |
| Parity | None, Odd, Even, Space, Mark | |
| Stop Bits | 1, 1.5, 2 | |
| MTBF | 277,385 hours | |
| Physical Characteristics | Product Height | 5.9 in [15.0 cm] |
| Product Length | 3.9 in [98.0 mm] | |
| Weight of Product | 1.6 oz [44.0 g] | |
| Product Width | 2.6 in [67.0 mm] | |
| Material | Steel | |
| Software | OS Compatibility | Windows® 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Linux 2.4.x to 2.6.x LTS Versions only |
| Microsoft WHQL Certified | Yes | |
| Special Notes / Requirements | Note | Selectable power output on pin 9 of the serial port |
| What's in the Box | 1 - Included in Package | PCIe Serial Card |
| Full-Profile Bracket | ||
| User Manual |
| SKU | PEX1S953LP |
| Barcode # | 65030881159 |
| Brand | STARTECH |
| Shipping Weight | 0.1100kg |
| Shipping Width | 0.003m |
| Shipping Height | 0.017m |
| Shipping Length | 0.015m |
