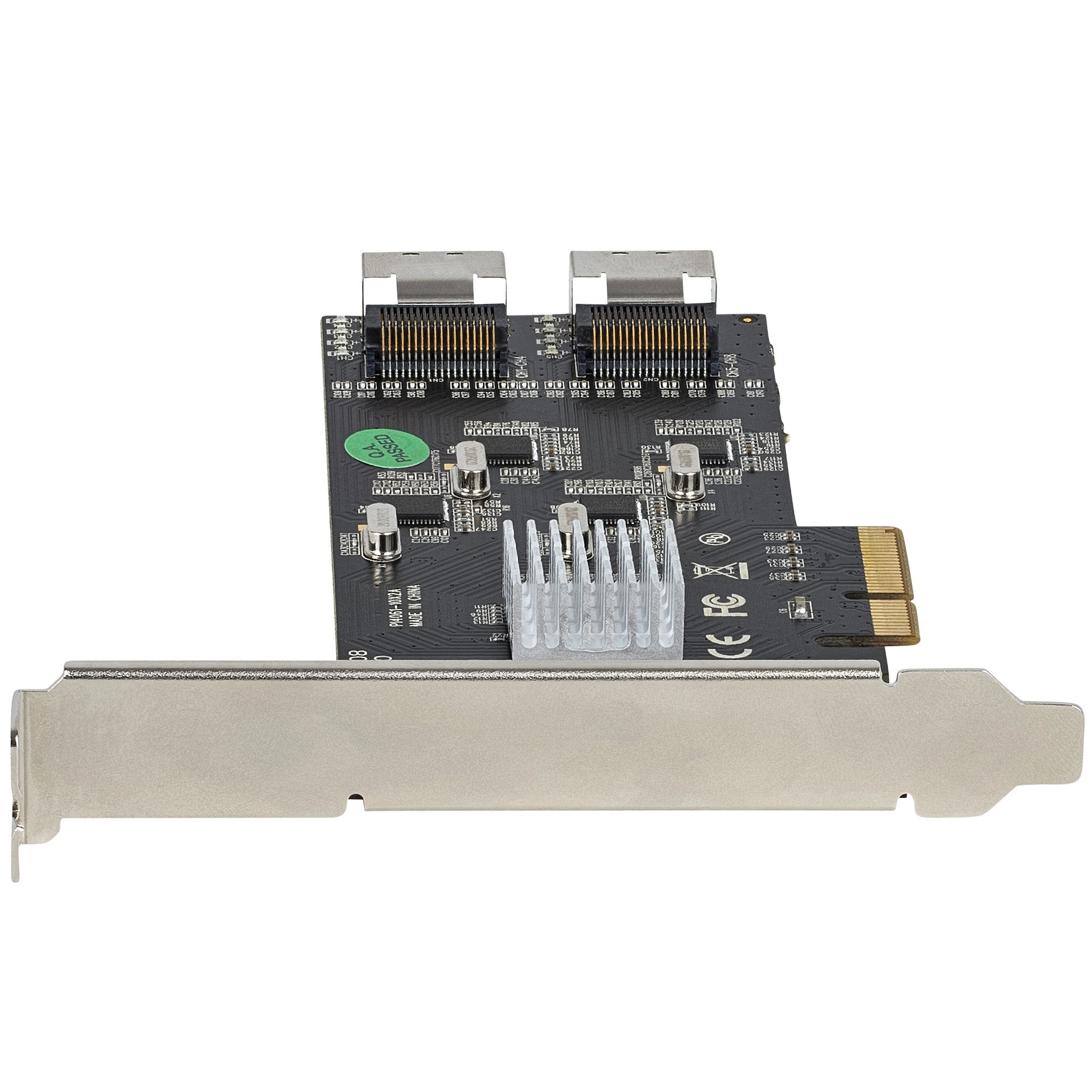

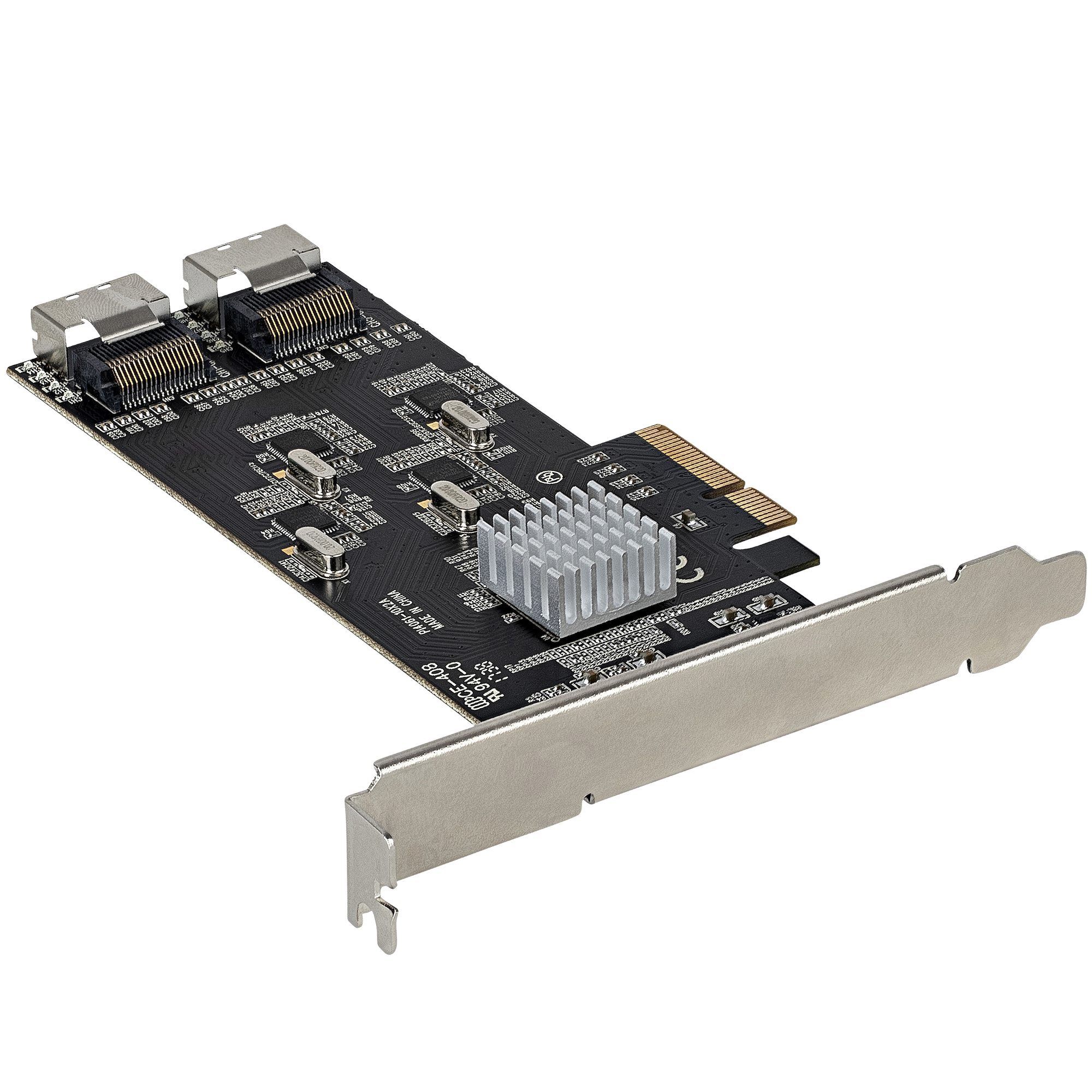

8-Port SATA III PCIe Controller Card
Add eight internal SATA 6Gbps connections through two Mini-SAS ports on a PCIe x4 controller card, with breakout cables and both bracket profiles included.
Key features
Eight SATA III connections
Two internal SFF-8087 ports connect up to eight SATA drives through the included locking breakout cables.
Up to 16Gbps combined
Four ASMedia ASM1061 controllers and the PCIe Gen 2 x4 host link provide up to 16Gbps combined throughput.
Flexible storage features
Supports TRIM, SMART, 4Kn, port multiplier, bootable and ATAPI devices plus software RAID without hardware RAID.
Installation kit included

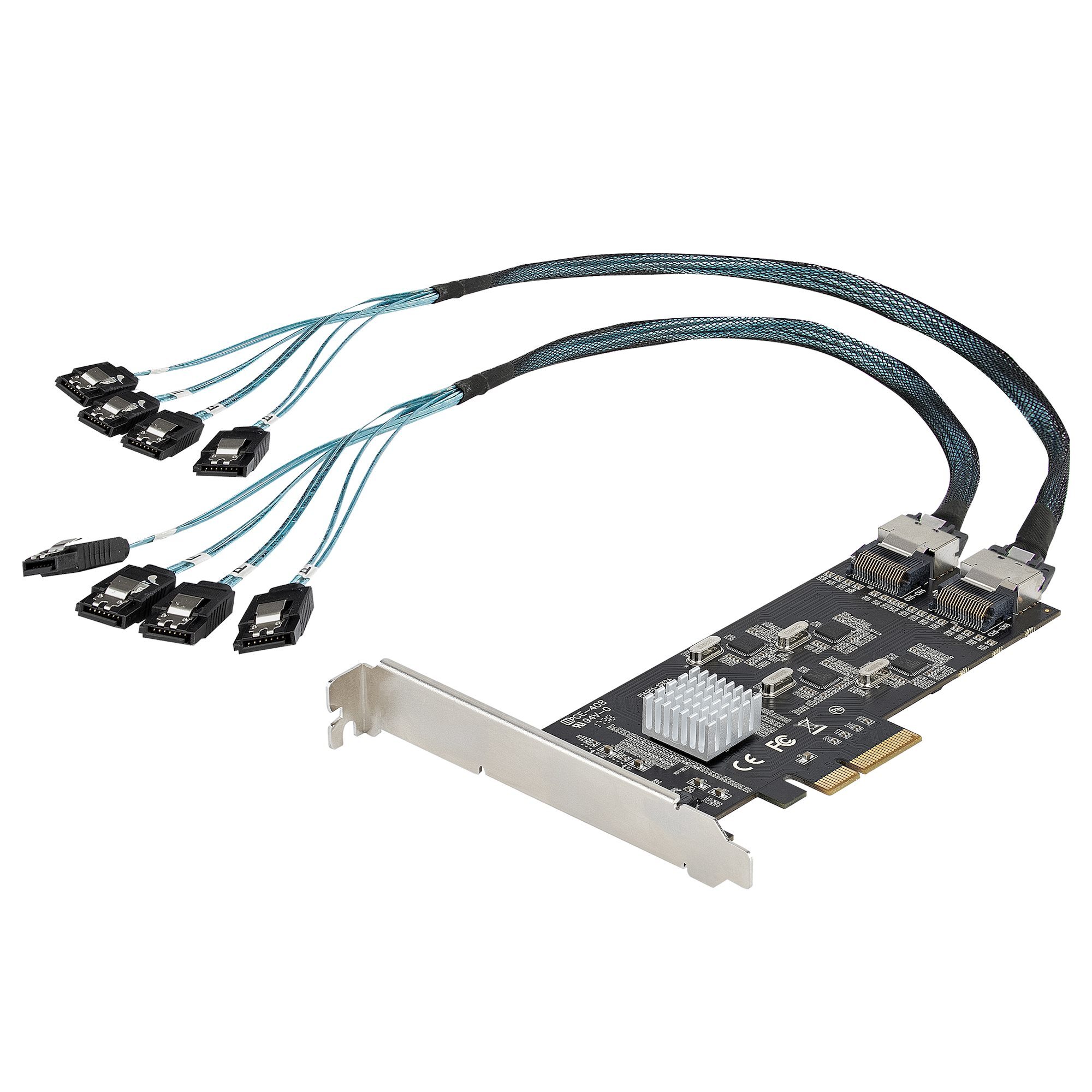

Includes two 50cm Mini-SAS-to-four-SATA cables plus installed full-profile and separate low-profile brackets.
What to know
One card for eight drives
Expand a compatible desktop, workstation or server with eight SATA data connections while using a single PCIe slot.
Plan performance and power
The 16Gbps host bandwidth is shared across active drives. Confirm PCIe compatibility, drive power, airflow, OS support and any boot or software-RAID requirements.
StarTech 8P6G-PCIE-SATA-CARD Product Video
Australian version with official StarTech.com warranty
2 Years manufacturer warranty
This is the Australian version supplied by DeviceDeal and is covered by an official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility and product assessment.
StarTech 8P6G-PCIE-SATA-CARD FAQ
What is the StarTech 8P6G-PCIE-SATA-CARD?
It is a eight-port SATA controller card: Add eight internal SATA 6Gbps connections through two Mini-SAS ports on a PCIe x4 controller card, with breakout cables and both bracket profiles included.
What are the main features of 8P6G-PCIE-SATA-CARD?
Eight SATA III connections: Two internal SFF-8087 ports connect up to eight SATA drives through the included locking breakout cables. Up to 16Gbps combined: Four ASMedia ASM1061 controllers and the PCIe Gen 2 x4 host link provide up to 16Gbps combined throughput. Flexible storage features: Supports TRIM, SMART, 4Kn, port multiplier, bootable and ATAPI devices plus software RAID without hardware RAID.
What must I check before buying 8P6G-PCIE-SATA-CARD?
Confirm a compatible PCIe x4-or-larger slot, drive power, chassis bracket and OS support. Bandwidth is shared, and the card relies on software rather than hardware RAID.
What is included with 8P6G-PCIE-SATA-CARD?
Controller card, 2 x 50cm SFF-8087-to-4x locking SATA cables, full-profile and low-profile brackets, quick-start guide
Does 8P6G-PCIE-SATA-CARD require compatible equipment?
Yes. Connector type, interface standard, system support and the complete installation must match the product requirements shown in the specifications.
Is 8P6G-PCIE-SATA-CARD the Australian version?
Yes. DeviceDeal supplies the Australian version, backed by the official StarTech.com 2 years manufacturer warranty in Australia.
Do I need to keep my DeviceDeal invoice?
Yes. Keep the DeviceDeal tax invoice as proof of purchase if manufacturer warranty support is required.
What warranty covers 8P6G-PCIE-SATA-CARD?
8P6G-PCIE-SATA-CARD carries an official StarTech.com 2 years manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
