STARTECH.COM | GC98MF

DB9 Male to RJ45 Female Modular Adapter

Configure a custom serial pinout between a DB9 male port and an RJ45 female connector using a compact passive modular adapter.

Custom serial pinout

The modular design lets an installer arrange the internal leads for the required RS-232, RS-422 or RS-485 wiring scheme.

DB9 male to RJ45 female

Joins equipment with a 9-pin male D-sub interface to structured cabling terminated with an RJ45 plug.

Compact passive design

Requires no external power, software or drivers and fits neatly into service kits or equipment cabinets.

Built for repeatable installs

Useful when deploying a known serial pinout across multiple devices or replacing a purpose-wired adapter.

Why this model fits the job

Configure a custom serial pinout between a DB9 male port and an RJ45 female connector using a compact passive modular adapter. The design focuses on the exact connector, signalling and compatibility requirements shown in the current StarTech.com specification, helping buyers select the right part without relying on broad compatibility claims.

Compatibility checklist

Map the required pinout before terminating the internal leads.
Confirm that the equipment uses compatible electrical signalling; the adapter does not convert between RS-232, RS-422 and RS-485.
Use this model only when a DB9 male and RJ45 female connector arrangement is required.

Common applications

Create a purpose-wired serial console or control lead
Adapt installed RJ45 cabling to a DB9-equipped device
Standardise repeatable serial pinouts for service deployments

DeviceDeal purchase confidence

Supplied by DeviceDeal for Australian customers with local purchasing support, a tax invoice and the verified Lifetime StarTech.com manufacturer warranty.

Frequently asked questions

What connectors does GC98MF provide?

It has one DB9 male connector and one RJ45 female modular jack.

Can I choose the pinout?

Yes. Its internal leads can be arranged to match the pinout required by the connected equipment.

Does it convert RS-232 to RS-422 or RS-485?

No. It is a passive wiring adapter and does not convert electrical signalling standards.

Does it require drivers or power?

No. It is passive and needs neither drivers nor external power.

Can it be used for console cabling?

It can be used when the console equipment, connector genders and required pinout match. Verify the pin assignment first.

What are its dimensions?

The current manufacturer specification lists 85 × 34 × 16mm (L × W × H).

What is included?

One DB9 male to RJ45 female modular adapter is supplied.

What warranty applies?

StarTech.com backs GC98MF with a lifetime manufacturer warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(GC98MF)

Features and highlights

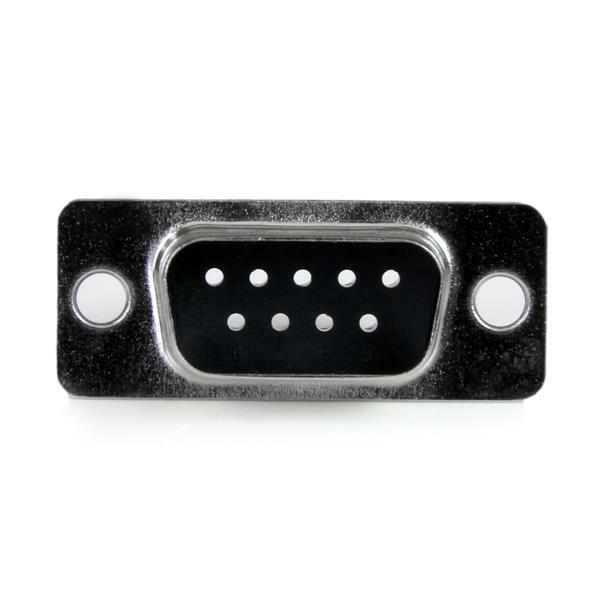

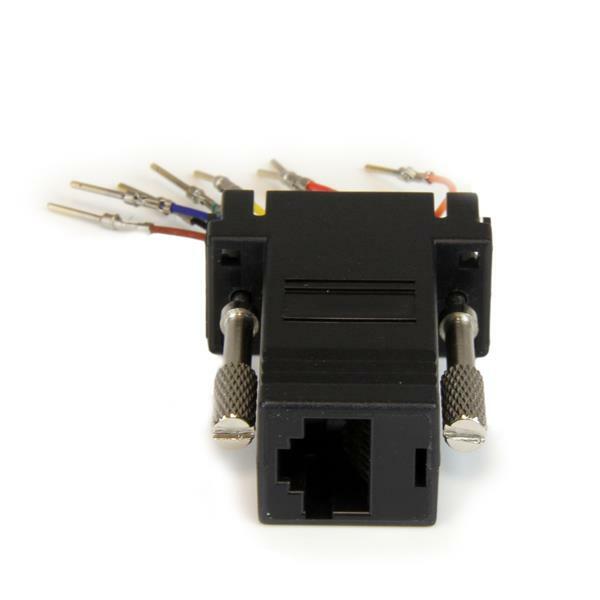

DB9 male connector to RJ45 female modular jack
Reconfigurable internal leads support custom serial pinouts
Suitable for RS-232, RS-422 and RS-485 wiring when pinned correctly
Passive adapter: no power supply, software or drivers required
Black compact housing
Product dimensions: 85 × 34 × 16mm (L × W × H)
Product weight: 17.5g
One modular adapter supplied
Lifetime StarTech.com manufacturer warranty

Compatibility check: Map the required pinout before terminating the internal leads.

Specifications

Product type	Modular serial adapter
Connector A	1 × DB9 male
Connector B	1 × RJ45 female
Supported use	Custom RS-232, RS-422 or RS-485 pinout
Signal conversion	None; passive pinout adapter
Colour	Black
Dimensions	85 × 34 × 16mm (L × W × H)
Product weight	17.5g
Power / drivers	Not required
Package quantity	1 adapter
Warranty	Lifetime

SKU	GC98MF
Barcode #	65030773515
Brand	Startech
Shipping Weight	0.0200kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.080m
Shipping Cubic	0.000400000m3
