StarTech.com · ICUSB2322F

StarTech ICUSB2322F 2-Port FTDI USB-to-RS232 Adapter with COM Retention

2-Port FTDI USB-to-RS232 Adapter with COM Retention for connecting compatible legacy and industrial RS232 equipment to a modern USB-equipped computer.

Quick answer: ICUSB2322F adds two DB9 RS232 ports through one USB connection with FTDI hardware and COM-port retention.

Best forService benches, industrial controls, POS installations and computers that must manage two RS232 devices.

Check before orderingConfirm driver support and that both attached serial devices use compatible DB9 RS232 pin assignments.

Answers before you buy

Frequently asked questions

What is StarTech ICUSB2322F?

It is a dual-port adapter that adds two DB9 RS232 ports through one USB connection with FTDI hardware and COM-port retention.

How many RS232 ports are provided?

It provides 2 RS232 serial ports.

Which connectors are fitted?

The host side uses USB Type-A male; the serial side provides 2 × DB9 male RS232.

What is the maximum baud rate?

The specified maximum baud rate is 921.6Kbps.

Which chipset is used?

It uses the FTDI FT2232D chipset.

Does it need an external power adapter?

No. It is powered through USB.

Are both COM-port values retained?

Yes. The adapter is designed to retain the assigned COM-port values for its two serial interfaces.

What warranty applies?

ICUSB2322F carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSB2322F)

Features & highlights

Why choose ICUSB2322F?

?Adds RS232 connectivityConnect up to 2 compatible serial devices through a USB-equipped computer.

?Purpose-matched connectorsUSB Type-A male host connection with 2 × DB9 male RS232.

?Specified serial performanceSupports RS232 communication at baud rates up to 921.6Kbps.

?Defined hardware platformFTDI FT2232D chipset supports the adapters stated serial feature set.

?Power and constructionUSB powered; plastic enclosure construction.

?Installation advantageCOM retention helps restore consistent serial port numbers after reconnection or reboot.

Compatibility reminder: Confirm driver support and that both attached serial devices use compatible DB9 RS232 pin assignments.

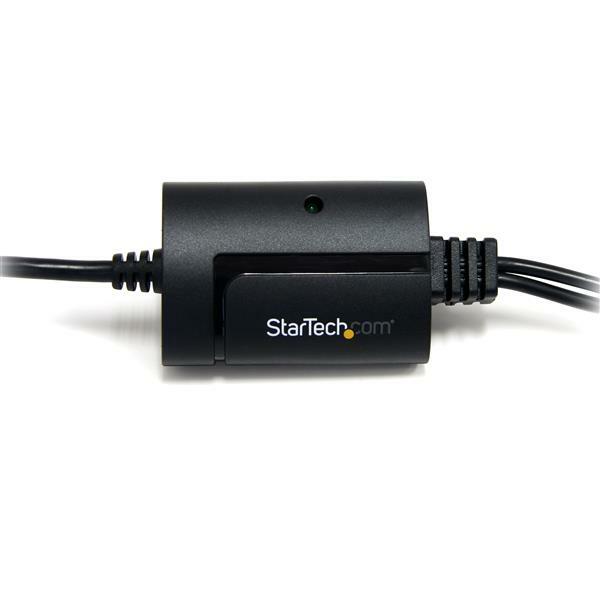

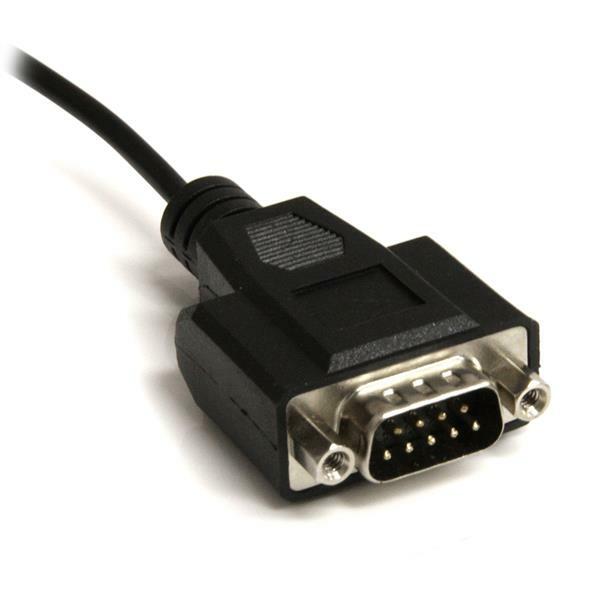

StarTech ICUSB2322F 2-Port FTDI USB-to-RS232 Adapter with COM Retention product image

Technical specifications

ICUSB2322F specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Product Type	dual-port adapter
Ports	2
Bus / Host Interface	USB Type-A male
Serial Protocol	RS-232
Chipset	FTDI FT2232D
Enclosure	Plastic
Performance
Maximum Baud Rate	921.6Kbps
Serial Ports	2 × DB9 male RS232
Power
Power Source	USB powered
Physical Characteristics
Length	1.8m (6ft) host cable; 2.1m overall
Dimensions / Weight	Overall length 2.1m; 156g
Colour	Black unless otherwise specified
Special Feature
Details	COM retention helps restore consistent serial port numbers after reconnection or reboot.
What's in the Box
Included	2-Port FTDI USB-to-RS232 Adapter with COM Retention and model-specific supplied accessories

Sources: https://www.devicedeal.com.au/startech-ftdi-usb-to-serial-adapter-cable-w-com~152935 and https://www.startech.com/

SKU	ICUSB2322F
Barcode #	65030843492
Brand	Startech
Shipping Weight	0.2800kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.170m
Shipping Cubic	0.000850000m3

Manufacturer warranty

2 Years

This Australian-version product is supplied by DeviceDeal and is covered by the 2-year manufacturer warranty term listed for this exact product.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
