StarTech SATA to 2.5/3.5 IDE Hard Drive Adapter - SAT2IDEADP
Model # SAT2IDEADP
-
SKU: SAT2IDEADP
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely

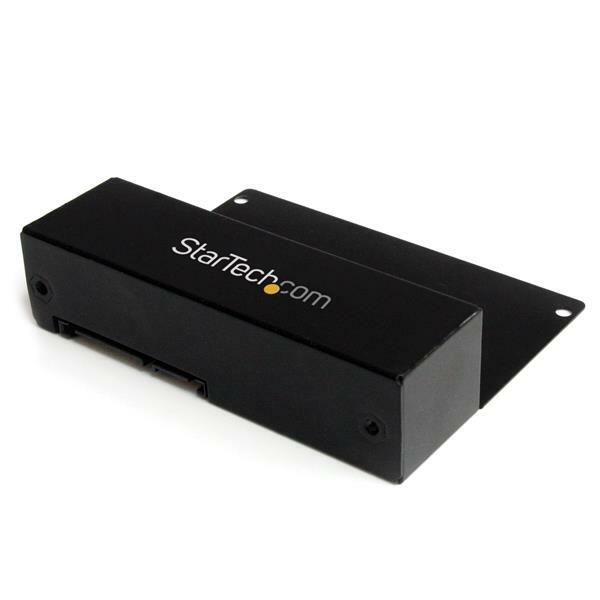

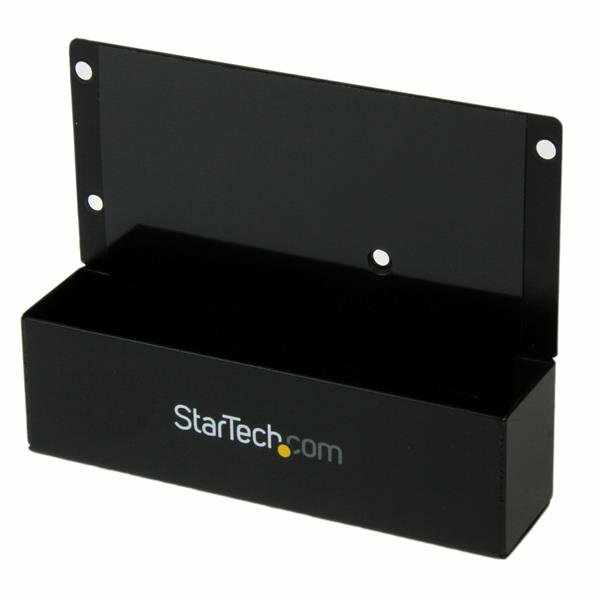

SATA to 2.5-inch / 3.5-inch IDE hard drive adapter
A steel adapter for connecting one 2.5-inch or 3.5-inch IDE/PATA hard drive through SATA, including the IDE and power cabling required for compatible docks, duplicators and desktop installations.
Key capabilities
Legacy IDE drive access
Connects one 2.5-inch or 3.5-inch IDE/PATA drive through a SATA host interface.
ATA-133 compatibility
Supports IDE drives up to ATA-133 / 133MBps.
Dock and desktop use
Useful with compatible SATA-based HDD docks, duplicators and desktop SATA installations.
Steel construction
All-metal construction with IDE and power cabling included.
What to know before buying
This adapter is for connecting IDE/PATA drives through SATA. Confirm the target drive uses 40-pin or 44-pin IDE/PATA.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is the StarTech SAT2IDEADP used for?
Which IDE drive sizes are supported?
What IDE performance is supported?
What host connection is used?
Does it require drivers?
What chipset is used?
What is included?
What warranty applies in Australia?
(SAT2IDEADP)
Features and highlights
Legacy IDE drive access
Connects one 2.5-inch or 3.5-inch IDE/PATA drive through a SATA host interface.
ATA-133 compatibility
Supports IDE drives up to ATA-133 / 133MBps.
Dock and desktop use
Useful with compatible SATA-based HDD docks, duplicators and desktop SATA installations.
Steel construction
All-metal construction with IDE and power cabling included.
- 2.5in & 3.5in IDE/PATA
- ATA-133 / 133MBps
- SATA host connection
- 2-year warranty
Specifications
Verified specifications for StarTech SAT2IDEADP.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Chipset ID | JMicron - JM20330 |
|---|---|
| Compatible Drive Types | IDE (ATA) |
| Drive Installation | Fixed |
| Drive Size | 2.5in & 3.5in |
| Fan(s) | No |
| LBA support | 48-bit |
| Number of Drives | 1 |
Connector(s)
| Connector Type(s) | 1 - SP4 (4 pin, Small Drive Power) Male |
|---|---|
| Drive Connectors | 1 - IDE (40 Pin, EIDE/PATA) Female |
| Drive Connectors | 1 - IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female |
| Drive Connectors | 1 - LP4 (4 pin; Large Drive Power) Female |
| Host Connectors | 1 - SATA (7 pin, Data) Plug |
| Host Connectors | 1 - SATA Power (15 pin) Plug |
Software
| OS Compatibility | OS independent; No software or drivers required |
|---|
Environmental
| Humidity | 8% ~ 90% RH |
|---|---|
| Operating Temperature | 5°C to 80°C (41°F to 176°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Physical Characteristics
| Color | Black |
|---|---|
| Enclosure Type | Steel |
| Product Height | 1 in [2.6 cm] |
| Product Length | 4 in [10.1 cm] |
| Product Width | 3.1 in [78 mm] |
| Weight of Product | 3.7 oz [104 g] |
Packaging Information
| Package Height | 2 in [52 mm] |
|---|---|
| Package Length | 5.8 in [14.7 cm] |
| Package Width | 4.3 in [11 cm] |
| Shipping (Package) Weight | 7.7 oz [218 g] |
What's in the Box
| Included in Package | 1 - SATA to IDE adapter |
|---|---|
| Included in Package | 1 - 40-pin IDE cable |
| Included in Package | 1 - 40-pin to 44-pin IDE cable with power |
| Included in Package | 1 - SP4 to LP4 Power cable |
| Included in Package | 1 - Package of mounting screws |
| Included in Package | 1 - Instruction Manual |
| SKU | SAT2IDEADP |
| Barcode # | 65030843393 |
| Brand | Startech |
| Shipping Weight | 0.2100kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.050m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.000840000m3 |
StarTech.com warranty in Australia
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
