StarTech 3 Port 2b 1a PCI Express FireWire Card - PEX1394B3
Model # PEX1394B3
-
SKU: PEX1394B3
- Pick Up Available
- Australian Warranty
- Checkout Securely

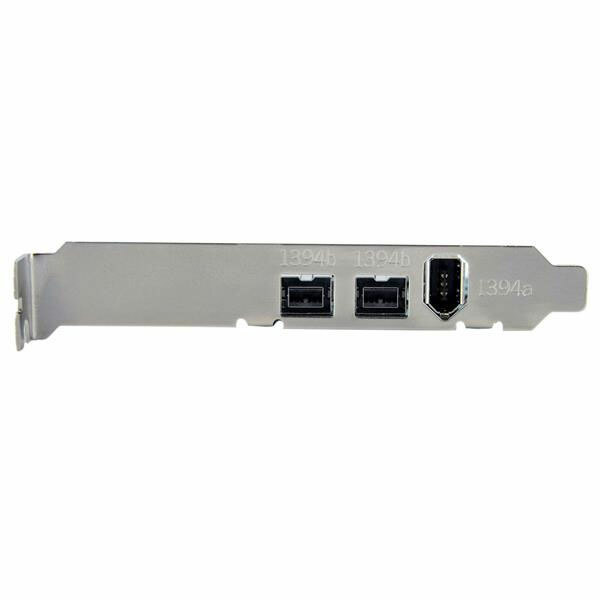

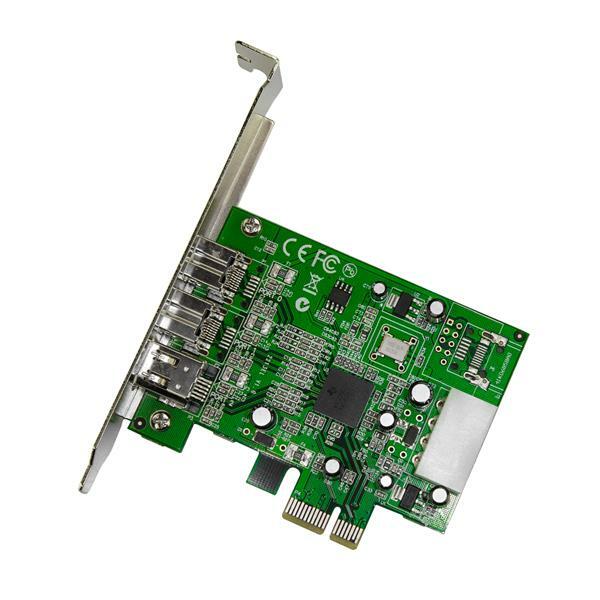

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.
(PEX1394B3)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Chipset ID | Texas Instruments - XIO2213B | |
| Industry Standards | IEEE-1394/1394A/1394B OHCI PCI Express 1.1 | |
| Interface | FireWire 800 (1394b) | |
| FireWire 400 (1394a) | ||
| Ports | 3 | |
| Performance | ||
| Maximum Data Transfer Rate | 800 Mbps 400 Mbps | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI Express x1 Male | |
| External Ports | 1 - FireWire 400 (6 pin, IEEE 1394a) Female | |
| 2 - FireWire 800 (9 pin, IEEE 1394b) Female | ||
| Internal Ports | 1 - LP4 (4 pin; Large Drive Power) Male | |
| Software | ||
| OS Compatibility | Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2016, 2019 Mac OS® 10.6 to 10.14 Linux 3.5.x to 4.4.x LTS Versions Only | |
| Special Notes / Requirements | ||
| Note | The software included with this product supports a "typical" driver install only. Custom driver setup requires software purchase from a 3rd party | |
| System and Cable Requirements | PCI Express enabled computer with an available PCI Express x1 slot or higher | |
| Environmental | ||
| Humidity | 0~90% RH | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |
| Storage Temperature | -20°C to 90°C (-4°F to 194°F) | |
| Physical Characteristics | ||
| Product Height | 4.7 in [12 cm] | |
| Product Length | 3.3 in [85 mm] | |
| Product Width | 0.7 in [18 mm] | |
| Weight of Product | 1.7 oz [48 g] | |
| Packaging Information | ||
| Package Height | 1.6 in [41 mm] | |
| Package Length | 8.4 in [21.3 cm] | |
| Package Width | 5.8 in [14.8 cm] | |
| Shipping (Package) Weight | 7.5 oz [212 g] | |
| What's in the Box | ||

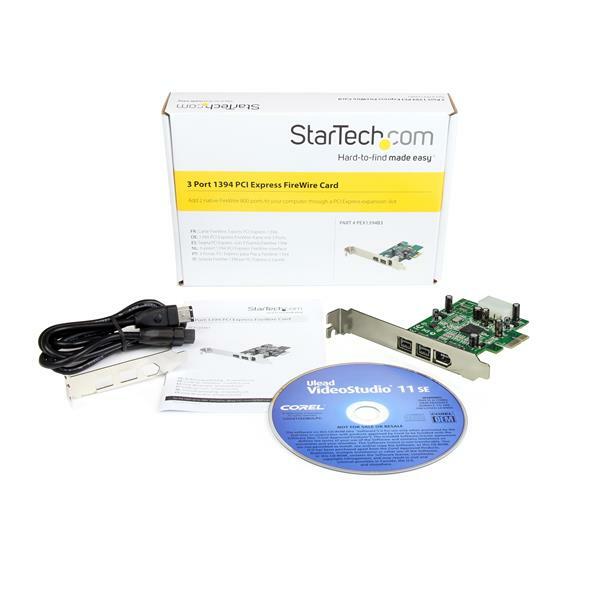

| Included in Package | 1 - PCI Express FireWire Card | |
| 1 - FireWire cable | ||
| 1 - Low Profile Bracket | ||
| 1 - Software CD | ||
| 1 - Instruction Manual | ||
| SKU | PEX1394B3 |
| Barcode # | 65030825139 |
| Brand | STARTECH |
| Shipping Weight | 0.2100kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
Manufacturer Warranty: Limited Product Lifetime Warranty
