Standard 2.5-inch form factor
The enclosed adapter mounts like a 2.5-inch SATA drive in compatible systems and enclosures.

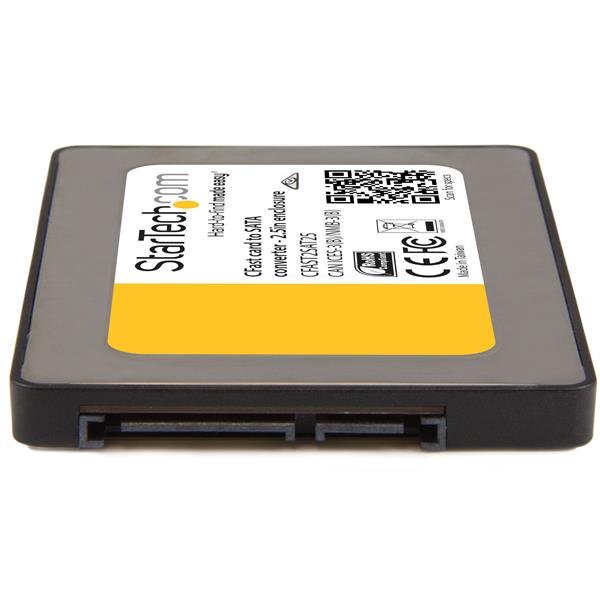

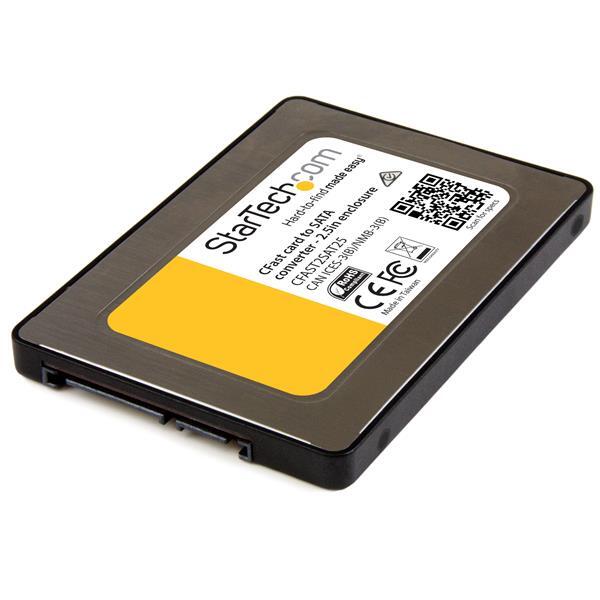

StarTech CFast Card to SATA Adapter with 2.5" Housing CFAST2SAT25
Model # CFAST2SAT25
-
SKU: CFAST2SAT25
$56.00
Stock Availability
🟢Live
In Stock · Call to confirm
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CFAST2SAT25
StarTech CFast Card to 2.5in SATA Adapter
Install one CFast 1.0 or 2.0 card in a standard 2.5-inch SATA drive bay with a protective steel housing and SATA III interface.
CFast 1.0 / 2.02.5in SATAUp to 6Gbps2-year warranty
Product overview
CFAST2SAT25 turns a compatible CFast card into a 2.5-inch SATA storage device for embedded, industrial and desktop applications. It is OS-independent and requires no software driver.
Features that matter
CFast 1.0 and 2.0 support

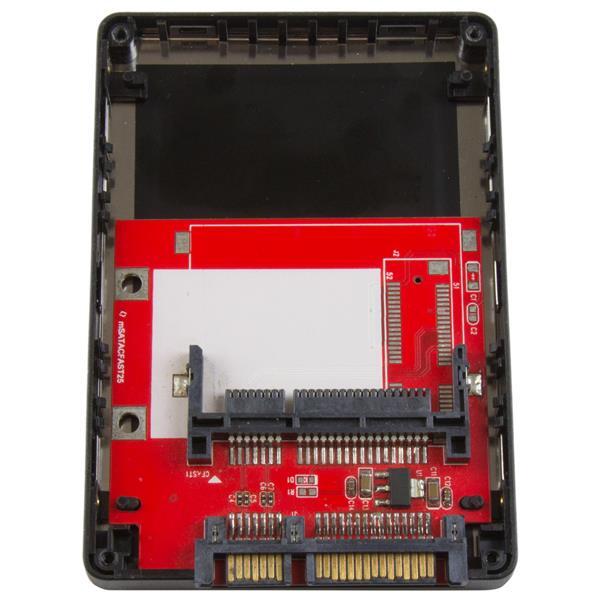

Accepts one 3.3mm or 5mm CFast I/II card using the 7+17-pin CFast connector.
SATA III interface
Supports SATA data rates up to 6Gbps, subject to the CFast media and host system.
Driverless storage conversion
Works as a SATA storage device without a dedicated operating-system driver.
What to know before ordering
Media not included
A CFast card is required and is sold separately. Performance and capacity depend on the installed card.
CFast only
This adapter does not accept CompactFlash cards; CFast uses a different SATA-based connector.
Installation planning
The host needs an available 2.5-inch SATA bay or enclosure with a 7+15-pin SATA connection and 5V power.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CFAST2SAT25?
CFAST2SAT25 is an enclosed adapter that presents one CFast card as a standard 2.5-inch SATA storage device.
Which memory cards are supported?
It supports one CFast 1.0 or 2.0 card in 3.3mm or 5mm height. It does not support CompactFlash cards.
What connection does the host need?
The host or enclosure needs a standard 7+15-pin SATA data-and-power connection with 5V power.
What is the maximum interface speed?
The SATA III interface supports up to 6Gbps. Actual performance depends on the installed CFast card and host.
Is a CFast card included?
No. The CFast card is sold separately.
Does it require a driver?
No dedicated driver is required; the adapter is operating-system independent.
What is included in the package?
The package contains one CFast-to-SATA converter, one assembly screw kit and one quick-install guide.
What warranty applies in Australia?
CFAST2SAT25 is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CFAST2SAT25)
Features and highlights
CFAST2SAT25 key capabilities
Product-specific highlights verified for this exact StarTech.com model.
Standard 2.5-inch form factor
The enclosed adapter mounts like a 2.5-inch SATA drive in compatible systems and enclosures.
CFast 1.0 and 2.0 support
Accepts one 3.3mm or 5mm CFast I/II card using the 7+17-pin CFast connector.
SATA III interface
Supports SATA data rates up to 6Gbps, subject to the CFast media and host system.
Driverless storage conversion
Works as a SATA storage device without a dedicated operating-system driver.
Key highlights
- One CFast I/II card
- CFast 1.0 / 2.0
- SATA III up to 6Gbps
- 2.5-inch enclosed adapter
- Official two-year StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CFAST2SAT25
Verified specifications and package details for the exact model.
General and Connectivity
Product type
CFast card to 2.5-inch SATA adapter
Card connector
CFast 7+17-pin
Host connector
SATA 7+15-pin combo
Cards supported
1
Supported card height
3.3mm and 5mm
Colour / material
Black and silver steel / plastic
Warranty
2 Years
Compliance
TAA
Performance and Power
Media support
CFast 1.0 / 2.0; CFast I / II
SATA interface
SATA III up to 6Gbps
Actual performance
Limited by CFast card and host
RAID support
No
Power input
5V DC through SATA power
Requirements
Host requirement
Available 2.5-inch SATA bay or compatible enclosure
Driver requirement
None; OS-independent
Not compatible with
CompactFlash cards
Physical and Packaging
Product dimensions (L x W x H)
99 x 69 x 10mm
Product weight
54g
Operating temperature
075°C
Storage temperature
-4085°C
Humidity
595% RH
Package dimensions (W x D x H)
163 x 131 x 33mm
Shipping weight
106g
Package contents
Converter; assembly screw kit; quick-install guide
| SKU | CFAST2SAT25 |
| Barcode # | 65030861212 |
| Brand | Startech |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
Official StarTech.com manufacturer warranty
2 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CFAST2SAT25.
