StarTech.com · PEXUSB312A2C2V

Startech PEXUSB312A2C2V 4-Port USB PCIe Card - 10Gbps 2x USB-C 2

PCI Express USB expansion card adding two 10Gbps USB-A and two 10Gbps USB-C ports with data rates up to 10Gbps per port for compatible desktop and server systems.

Quick answer: Adds four external USB ports through one PCIe expansion slot, with support for compatible USB storage, peripherals and backward-compatible devices.

Best forDesktop upgrades, high-speed external storage, backup, video-editing and data-recovery workflows that need more USB connectivity.

Check before orderingRequires a full-height PCIe x4 or larger slot. USB-C ports are data only and do not support DisplayPort Alt Mode or USB Power Delivery.

Answers before you buy

Frequently asked questions

What does PEXUSB312A2C2V do?

Adds four external USB ports through one PCIe expansion slot, with support for compatible USB storage, peripherals and backward-compatible devices.

Who is this product best for?

Desktop upgrades, high-speed external storage, backup, video-editing and data-recovery workflows that need more USB connectivity.

What should I check before ordering?

Requires a full-height PCIe x4 or larger slot. USB-C ports are data only and do not support DisplayPort Alt Mode or USB Power Delivery.

Does it require drivers or software?

Supports the Windows, Windows Server, macOS and Linux versions listed in the specifications; newer systems may install drivers automatically.

What is included in the package?

PCIe USB card, applicable installation bracket or brackets, and product documentation.

What is the key installation requirement?

Install in a PCIe x4 or larger slot, fit the correct bracket and connect SATA power when optional or required for the intended USB power load.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PEXUSB312A2C2V carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PEXUSB312A2C2V)

Features & highlights

Why choose PEXUSB312A2C2V?

?two 10Gbps USB-A and two 10Gbps USB-C portsExpands a compatible computer with additional high-speed USB connectivity.

?Up to 10Gbps per portDual-controller design provides up to 20Gbps total bandwidth shared across the four ports.

?UASP supportOptimises compatible storage transfers by allowing more efficient command processing.

?Backward-compatible USBWorks with supported earlier-generation USB devices at their negotiated speeds.

?Professional host controllerPurpose-built PCIe architecture supports dependable peripheral and storage access.

?full-profile installationDesigned for the chassis format stated in the specifications.

Compatibility reminder: Requires a full-height PCIe x4 or larger slot. USB-C ports are data only and do not support DisplayPort Alt Mode or USB Power Delivery.

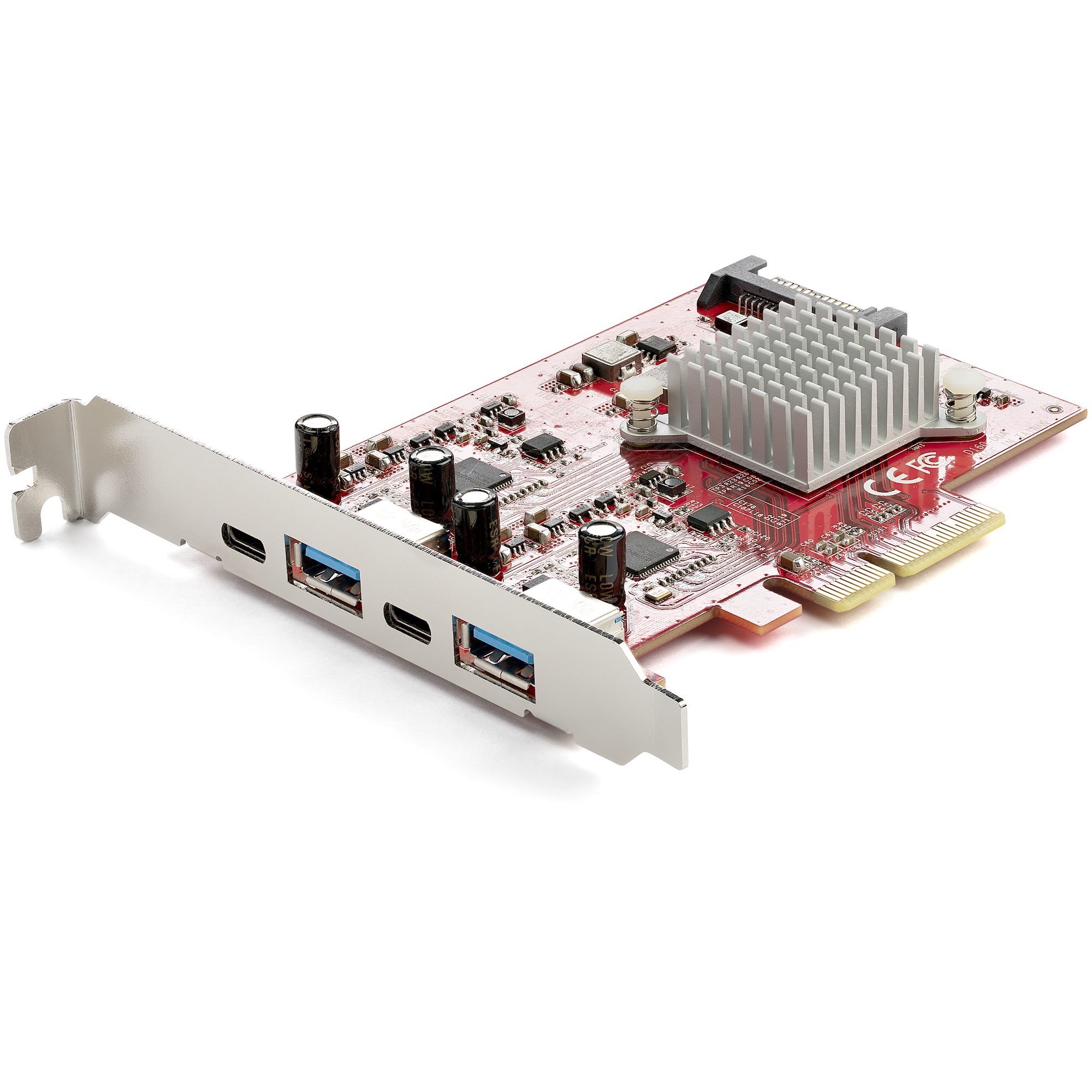

Startech PEXUSB312A2C2V 4-Port USB PCIe Card - 10Gbps 2x USB-C 2 product image

Technical specifications

PEXUSB312A2C2V specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Connector(s)
Host Connector	1 - PCI Express x4
External Ports	2 - USB 3.2 Type-A (10Gbps); 2 - USB 3.2 Type-C (10Gbps)
Internal Ports	1 - SATA Power (15 pin)
Hardware
Ports	4
Interface	USB
Bus Type	PCI Express
Card Type	Standard Profile
Port Style	Integrated on card
Chipset ID	ASMedia ASM3142; ASMedia ASM2806
Performance
Maximum Data Transfer Rate	10Gbps per port; up to 20Gbps total bandwidth shared across four ports
UASP Support	Yes
USB Power Output	USB-C: up to 15W per port; USB-A: up to 4.5W per port
Software
OS Compatibility	Windows 7/8/8.1/10/11; Windows Server; macOS; Linux LTS
Special Notes / Requirements
Display Support	Data only; does not support DisplayPort Alternate Mode
Power Delivery	Does not negotiate USB Power Delivery
What's in the Box
Included	1 - PCI Express USB card; 1 - installed full-profile bracket; product documentation

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	PEXUSB312A2C2V
Barcode #	65030887076
Brand	Startech
Shipping Weight	0.1400kg
Shipping Width	0.003m
Shipping Height	0.018m
Shipping Length	0.014m
