StarTech.com · PEX1P2

Startech PEX1P2 1-Port Parallel PCIe Card/Printer LPT

Single-port PCI Express parallel controller card for adding a DB25 LPT connection to modern desktop systems.

Quick answer: Adds one IEEE 1284 DB25 parallel port through a PCIe x1 or larger slot, supporting SPP, Nibble, Byte and ECP modes at up to 2.5Mbps.

Best forConnecting compatible printers, scanners, plotters, POS terminals, PLCs, scientific instruments and other legacy parallel equipment.

Check before orderingConfirm the peripheral uses a DB25 IEEE 1284 parallel interface and that the computer has a free PCIe slot and a supported operating system.

Answers before you buy

Frequently asked questions

What does PEX1P2 do?

Adds one IEEE 1284 DB25 parallel port through a PCIe x1 or larger slot, supporting SPP, Nibble, Byte and ECP modes at up to 2.5Mbps.

Who is this product best for?

Connecting compatible printers, scanners, plotters, POS terminals, PLCs, scientific instruments and other legacy parallel equipment.

What should I check before ordering?

Confirm the peripheral uses a DB25 IEEE 1284 parallel interface and that the computer has a free PCIe slot and a supported operating system.

Does it require drivers or software?

Drivers support the Windows, Windows Server and Linux versions listed in the specifications; verify any legacy application requirements.

What is included in the package?

PCI Express parallel card, installed full-profile bracket, low-profile bracket and quick-start guide.

What is the key installation requirement?

Install in a PCIe x1 or larger slot and select the correct bracket for the chassis before connecting the DB25 peripheral.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PEX1P2 carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PEX1P2)

Features & highlights

Why choose PEX1P2?

?One DB25 parallel portAdds an LPT connection to a PCI Express-equipped desktop.

?Up to 2.5MbpsSupports compatible parallel devices at the cards maximum transfer rate.

?Multiple parallel modesWorks with SPP, Nibble, Byte and ECP communication modes.

?IEEE 1284 compatibleDesigned for supported printers, scanners, plotters and industrial devices.

?Asix AX99100A controllerPCIe 2.0 controller supports reliable parallel connectivity.

?Dual-profile installationFull-profile and low-profile brackets are included.

Compatibility reminder: Confirm the peripheral uses a DB25 IEEE 1284 parallel interface and that the computer has a free PCIe slot and a supported operating system.

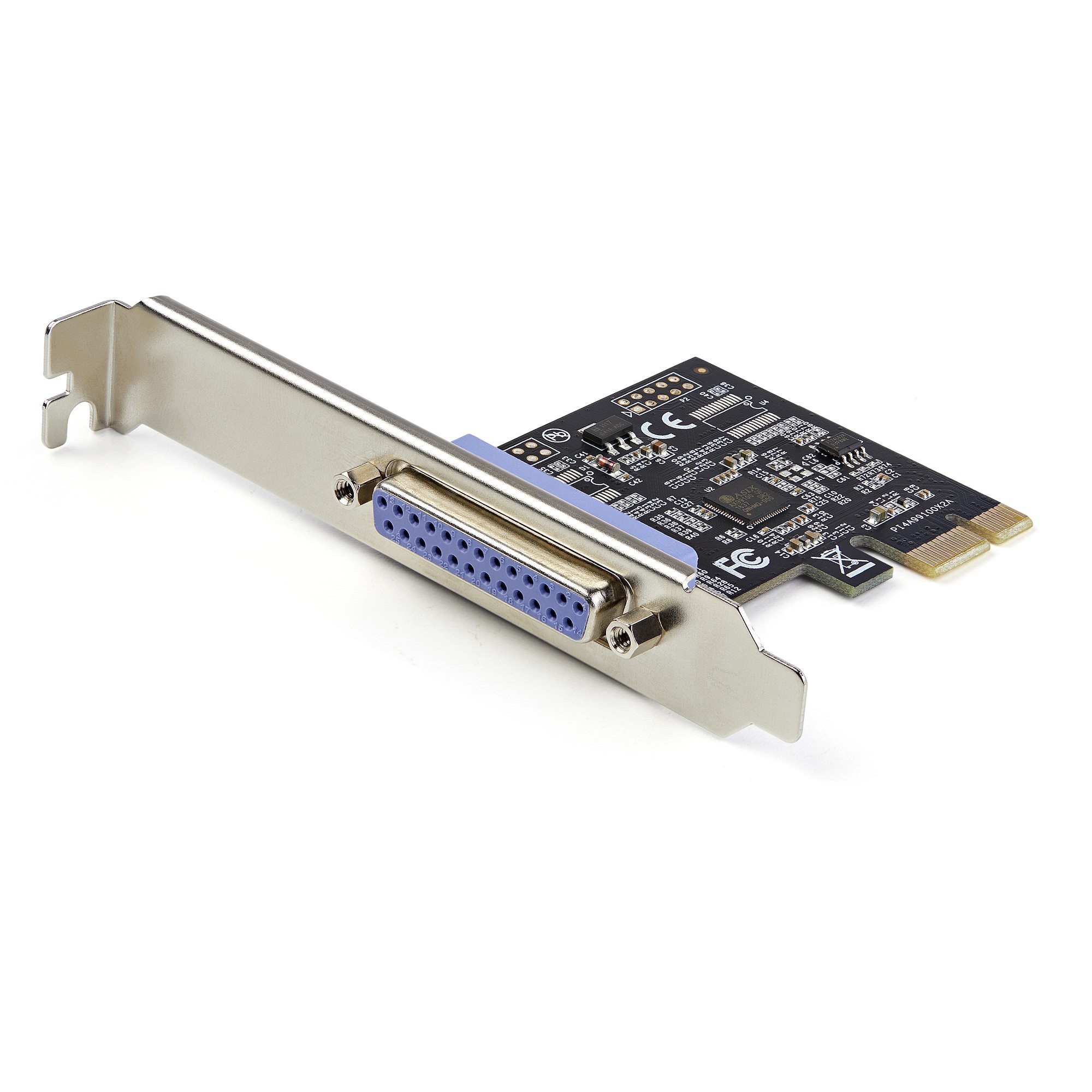

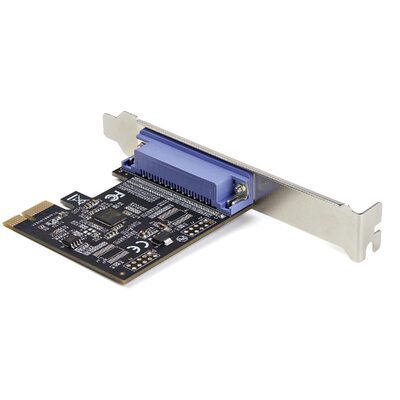

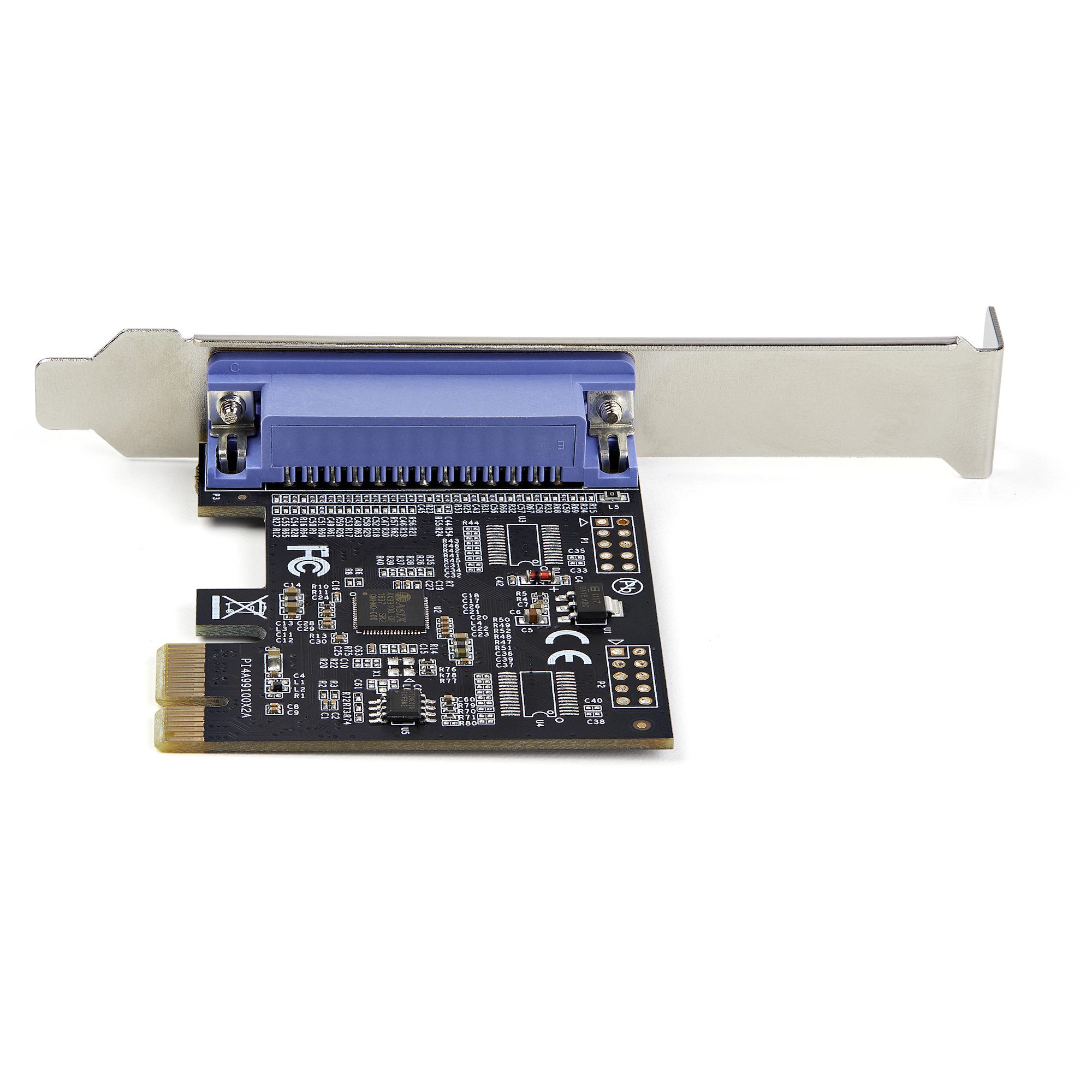

Startech PEX1P2 1-Port Parallel PCIe Card/Printer LPT product image

Technical specifications

PEX1P2 specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Connectors
Host Connector	1 - PCI Express x1
External Port	1 - DB-25 (25 pin, D-Sub)
Hardware
Ports	1
Interface	Parallel
Bus Type	PCI Express
Card Type	Standard Profile (low-profile bracket included)
Industry Standards	PCI Express 2.0; IEEE 1284
Chipset ID	Asix - AX99100A
Performance
Maximum Data Transfer Rate	2.5 Mbps
Parallel Modes	SPP, Nibble, Byte and ECP
MTBF	958,000 hours
Software
OS Compatibility	Windows 7/8/8.1/10/11; Windows Server 20032019; Linux 2.6.x and later LTS versions
Environmental
Operating Temperature	5°C to 50°C
Storage Temperature	20°C to 60°C
Humidity	40% to 80% RH
Physical Characteristics
Colour	Black
Dimensions	12.0 x 7.3 x 1.8cm
Product Weight	45g
What's in the Box
Included	1 - PCI Express parallel card; 1 - full-profile bracket (installed); 1 - low-profile bracket; 1 - quick-start guide

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	PEX1P2
Barcode #	65030891400
Brand	Startech
Shipping Weight	0.1200kg
Shipping Width	0.003m
Shipping Height	0.021m
Shipping Length	0.015m

Manufacturer warranty

2 Years

This Australian-version product is supplied by DeviceDeal and is covered by the official StarTech.com 2 years manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
