Startech PEXUSB321C USB 3.2 GEN 2X2 PCIE CARD - USB-C 20GBPS

PCI Express USB expansion card adding one USB-C 3.2 Gen 2x2 port with data rates up to 20Gbps for compatible desktop and server systems.

Quick answer: Adds one USB-C port through one PCIe expansion slot, with support for compatible USB storage, peripherals and backward-compatible devices.

Best forDesktop upgrades, high-speed external storage, backup, video-editing and data-recovery workflows that need more USB connectivity.

Check before orderingThe device, cable and host must all support USB 3.2 Gen 2x2 for 20Gbps. The USB-C port is data only and does not provide DP Alt Mode or USB PD.

Answers before you buy

Frequently asked questions

What does PEXUSB321C do?

Adds one USB-C port through one PCIe expansion slot, with support for compatible USB storage, peripherals and backward-compatible devices.

Who is this product best for?

Desktop upgrades, high-speed external storage, backup, video-editing and data-recovery workflows that need more USB connectivity.

What should I check before ordering?

The device, cable and host must all support USB 3.2 Gen 2x2 for 20Gbps. The USB-C port is data only and does not provide DP Alt Mode or USB PD.

Does it require drivers or software?

Supports the Windows, Windows Server, macOS and Linux versions listed in the specifications; newer systems may install drivers automatically.

What is included in the package?

PCIe USB card, applicable installation bracket or brackets, and product documentation.

What is the key installation requirement?

Install in a PCIe x4 or larger slot, fit the correct bracket and connect SATA power when optional or required for the intended USB power load.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PEXUSB321C carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PEXUSB321C)

Features & highlights

Why choose PEXUSB321C?

?one USB-C 3.2 Gen 2x2 portExpands a compatible computer with additional high-speed USB connectivity.

?Up to 20GbpsSupports fast transfers with compatible host systems, cables and devices.

?UASP supportOptimises compatible storage transfers by allowing more efficient command processing.

?Backward-compatible USBWorks with supported earlier-generation USB devices at their negotiated speeds.

?Professional host controllerPurpose-built PCIe architecture supports dependable peripheral and storage access.

?full- and low-profile installationDesigned for the chassis format stated in the specifications.

Compatibility reminder: The device, cable and host must all support USB 3.2 Gen 2x2 for 20Gbps. The USB-C port is data only and does not provide DP Alt Mode or USB PD.

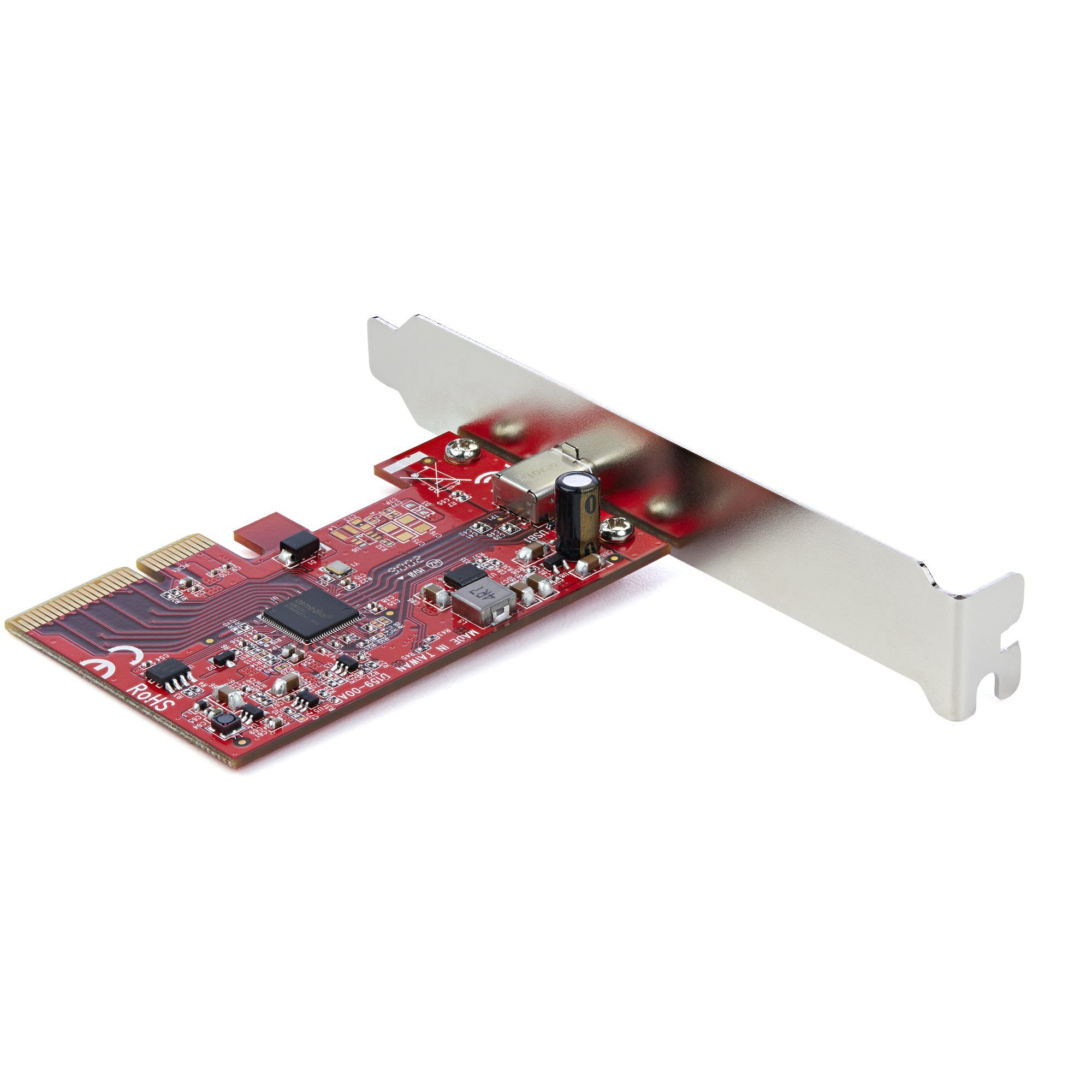

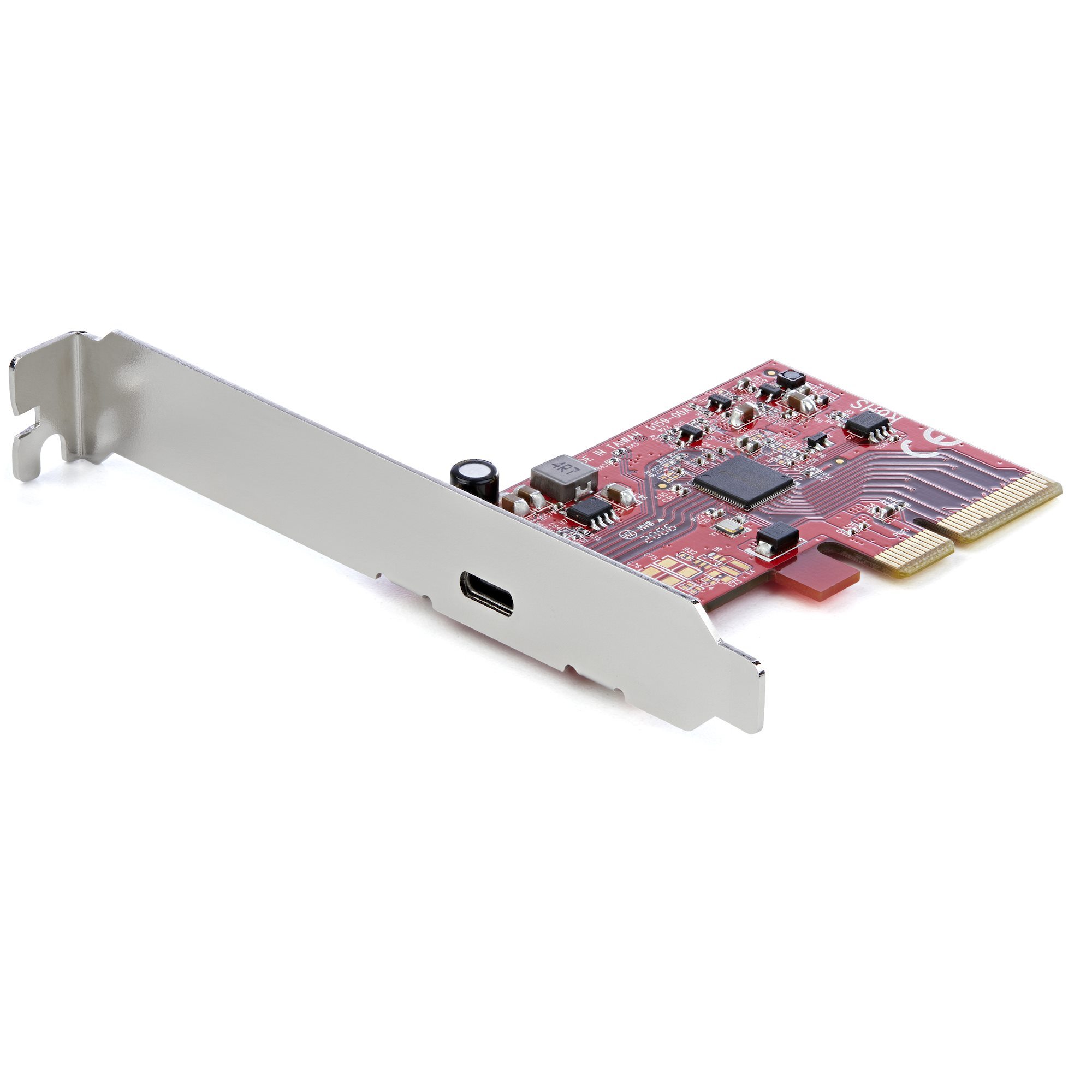

Startech PEXUSB321C USB 3.2 GEN 2X2 PCIE CARD - USB-C 20GBPS product image

Technical specifications

PEXUSB321C specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Connector(s)
Host Connector	1 - PCI Express x4
External Ports	1 - USB Type-C (24 pin, Gen 2x2, 20Gbps)
Hardware
Ports	1
Interface	USB
Bus Type	PCI Express
Card Type	Standard Profile (low-profile bracket included)
Port Style	Integrated on card
Chipset ID	ASMedia ASM3242
Performance
Maximum Data Transfer Rate	20Gbps
UASP Support	Yes
USB Power Output	Up to 15W (5V/3A)
Software
OS Compatibility	Windows 8/8.1/10/11; Windows Server 2012 R22022; macOS 10.13 and later; Linux 3.5 and later LTS versions
Special Notes / Requirements
Display Support	Data only; does not support DisplayPort Alternate Mode
Power Delivery	Does not negotiate USB Power Delivery
What's in the Box
Included	1 - USB-C PCIe card; 1 - installed full-profile bracket; 1 - low-profile bracket; 1 - quick-start guide

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	PEXUSB321C
Barcode #	65030891264
Brand	Startech
Shipping Weight	0.1200kg
Shipping Width	0.003m
Shipping Height	0.017m
Shipping Length	0.004m
