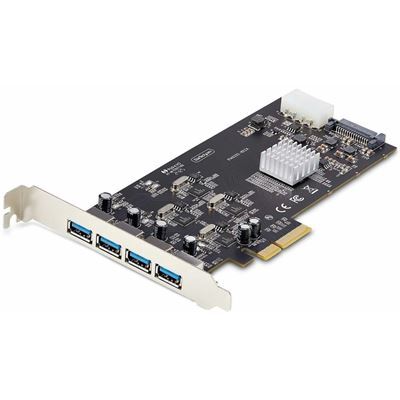

STARTECH P5Q4A-USB-CARD 4-Port USB-A PCIe Card USB 3.2 5Gbps

Four-port USB-A PCIe card with four independent 5Gbps controllers, up to 20Gbps aggregate bandwidth and optional power.

Quick answer: Adds four USB-A 5Gbps ports, each on an independent channel, with SATA or LP4 supplemental power support.

Best forExternal storage, capture, imaging and other USB devices that benefit from dedicated bandwidth per port.

Check before orderingRequires a PCIe x4, x8 or x16 slot. Use SATA or LP4 power when higher USB power output is needed.

Answers before you buy

What does P5Q4A-USB-CARD do?

Adds four USB-A 5Gbps ports, each on an independent channel, with SATA or LP4 supplemental power support.

Who is this product best for?

External storage, capture, imaging and other USB devices that benefit from dedicated bandwidth per port.

What should I check before ordering?

Requires a PCIe x4, x8 or x16 slot. Use SATA or LP4 power when higher USB power output is needed.

Does it require drivers or software?

Supported operating systems may install drivers automatically or use StarTech drivers; confirm the target OS in the specifications.

What is included in the package?

The product and the accessories listed in the specifications are included; connected devices and installation components may be separate.

What is the key installation requirement?

Requires a PCIe x4, x8 or x16 slot. Use SATA or LP4 power when higher USB power output is needed.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

P5Q4A-USB-CARD carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

(P5Q4A-USB-CARD)

Features & highlights

Why choose P5Q4A-USB-CARD?

?Four independent portsEach USB-A port uses its own 5Gbps controller channel.

?Up to 20Gbps aggregateReduces the bottleneck of traditional single-controller USB cards.

?USB Battery Charging 1.2Supports charging for compatible devices.

?Up to 10W per portSupplemental SATA or LP4 power supports higher output.

?UASP supportHelps compatible storage devices perform efficiently.

?Horizontal port layoutDesigned to improve cable and chassis clearance.

Compatibility reminder: Requires a PCIe x4, x8 or x16 slot. Use SATA or LP4 power when higher USB power output is needed.

Technical specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Connectors
External Ports	4 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
Internal Power	1 - SATA power (15 pin); 1 - 4-pin LP4 male
Host Connector	1 - PCI Express x4
Hardware
Ports	4
Interface / Bus	PCI Express
Card Type	Standard Profile
Industry Standard	PCI Express 2.0
Chipset ID	4 x Renesas UPD720202; Diodes Incorporated PI7C9X2G608
Performance
Maximum Data Rate	5Gbps per port; up to 20Gbps aggregate
USB Power Output	10W maximum per USB-A port
Charging	USB Battery Charging 1.2
UASP Support	Yes
Software
OS Compatibility	Windows 7/8/8.1/10/11; Windows Server 2008 R22025; Linux 2.6.31+ LTS
Power
Power Source	Bus powered; optional SATA or LP4 supplemental power
Environmental
Operating Temperature	0°C to 50°C
Storage Temperature	-10°C to 70°C
Humidity	5% to 90% RH, non-condensing
Physical Characteristics
Colour	Black
Dimensions	16.9 x 12.0 x 1.9cm
Weight	100g
What's in the Box
Included	1 - PCIe USB card; 1 - quick-start guide
