StarTech 4 Port PCIe Serial Adapter Card w/ 16550 - PEX4S553
Model # PEX4S553
-
SKU: PEX4S553
- Pick Up Available
- Australian Warranty
- Checkout Securely

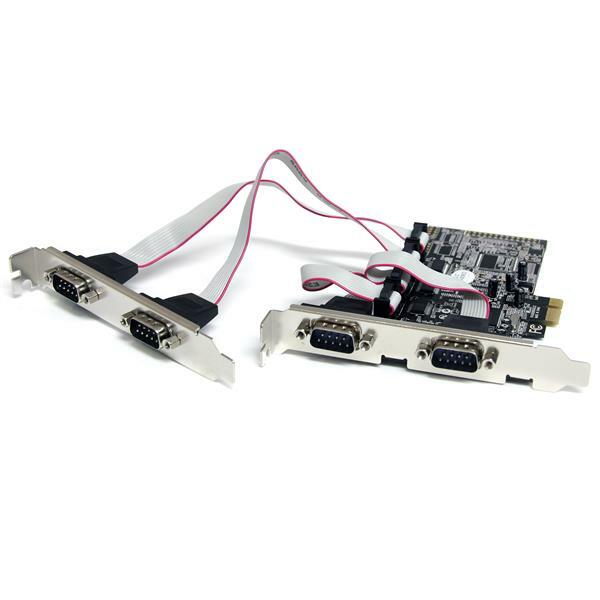

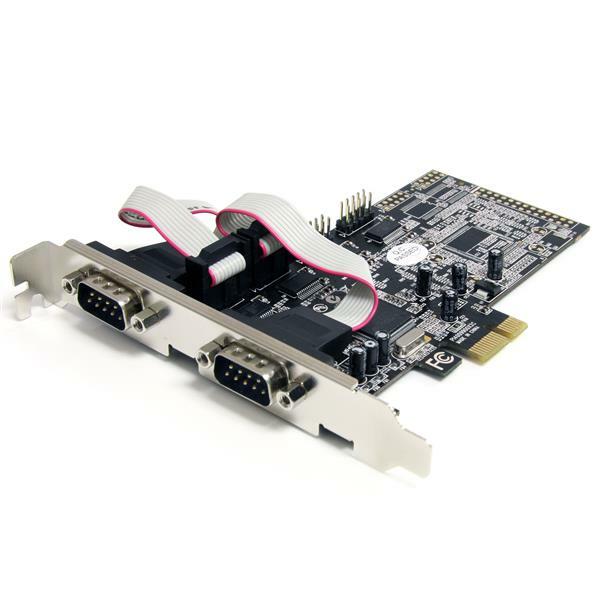

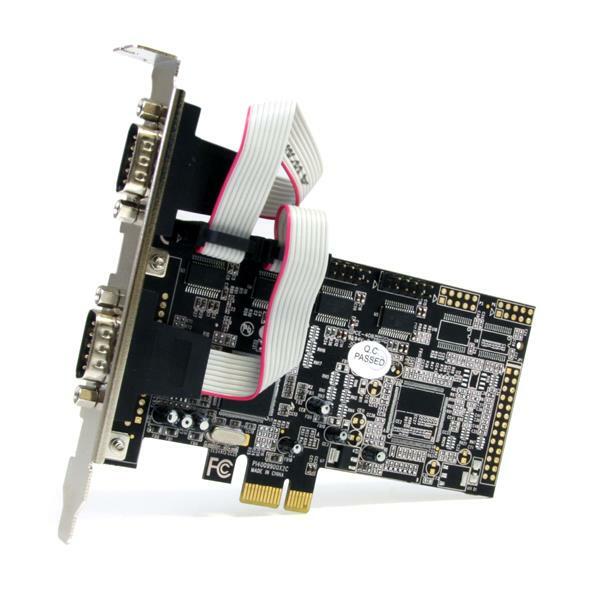

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.
The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
(PEX4S553)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Chipset ID | ASIX - MCS9904CV-AA | |
| Interface | Serial | |
| Port Style | Integrated on Card | |
| Ports | 4 | |
| Performance | ||
| Data Bits | 5, 6, 7, 8 | |
| FIFO | 256 bytes | |
| Max Baud Rate | 128 Kbps | |
| MTBF | 26,280 Hours | |
| Parity | 5, 6, 7, 8 | |
| Serial Protocol | RS-232 | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI Express x1 Male | |
| External Ports | 4 - DB-9 (9 pin, D-Sub) Male | |
| Software | ||
| Microsoft WHQL Certified | Yes | |
| OS Compatibility | Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS® 10.4 to 10.10 Linux 3.5.x to 4.11.x LTS Versions Only | |
| Environmental | ||
| Humidity | 5~85% RH | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature | -20°C to 60°C (4°F to 140°F) | |
| Physical Characteristics | ||
| Color | Green | |
| Product Height | 0.7 in [1.9 cm] | |
| Product Length | 4.7 in [12 cm] | |
| Product Width | 5.1 in [13 cm] | |
| Weight of Product | 2.6 oz [74 g] | |
| Packaging Information | ||
| Package Height | 1.2 in [30 mm] | |
| Package Length | 6.7 in [17 cm] | |
| Package Width | 5.6 in [14.1 cm] | |
| Shipping (Package) Weight | 8.1 oz [230 g] | |
| What's in the Box | ||
| Included in Package | 1 - 4 Port PCI-Express RS-232 Serial Card | |

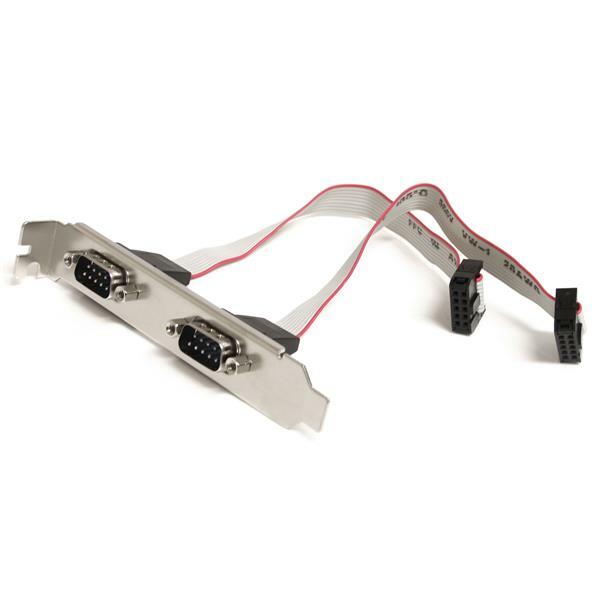

| 1 - Bracket with 2 DB9 male ports | ||
| 4 - Low Profile Brackets | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | PEX4S553 |
| Barcode # | 65030843553 |
| Brand | STARTECH |
| Shipping Weight | 0.2400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
