StarTech.com · IN-CAT6-COUPLER-U5

StarTech IN-CAT6-COUPLER-U5 Cat6 RJ45 Inline Coupler 5-Pack

Cat6 RJ45 Inline Coupler 5-Pack for professional IT, AV or industrial connectivity applications.

Quick answer: IN-CAT6-COUPLER-U5 joins pairs of RJ45 network cables using five female-to-female Cat6 couplers.

Best forOffices, server rooms and LAN installations extending multiple Cat6 or compatible Cat5e patch-cable runs.

Check before orderingUse suitable cable category and keep the complete channel within its supported length; these couplers are unshielded.

Answers before you buy

Frequently asked questions

What is StarTech IN-CAT6-COUPLER-U5?

It is a unshielded Cat6 inline network coupler pack that joins pairs of RJ45 network cables using five female-to-female Cat6 couplers.

Which connectors are provided?

Each coupler: 2 × RJ45 female, 8P8C, straight-through T568B

What performance is specified?

Supports 10/100/1000Mbps and 2.5/5/10Gbps networks; passive PoE pass-through

How is it powered?

Passive coupler; no external power required

How many couplers are included?

The package contains five unshielded female-to-female RJ45 inline couplers.

Does it support 10Gbps and PoE?

Yes. The official model information lists 10Gbps network compatibility and passive PoE support when used in a suitable channel.

What should be checked before ordering?

Use suitable cable category and keep the complete channel within its supported length; these couplers are unshielded.

What warranty applies?

IN-CAT6-COUPLER-U5 carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(IN-CAT6-COUPLER-U5)

Features & highlights

Why choose IN-CAT6-COUPLER-U5?

?Purpose-built connectivityEach coupler: 2 × RJ45 female, 8P8C, straight-through T568B

?Specified performanceSupports 10/100/1000Mbps and 2.5/5/10Gbps networks; passive PoE pass-through

?Power arrangementPassive coupler; no external power required

?Construction and deploymentFive white polycarbonate couplers with gold-plated phosphor-bronze contacts

?Key capabilityFive-pack supports multiple installations under one SKU.

?Installation advantageTool-free passive design requires no drivers, software or configuration.

Compatibility reminder: Use suitable cable category and keep the complete channel within its supported length; these couplers are unshielded.

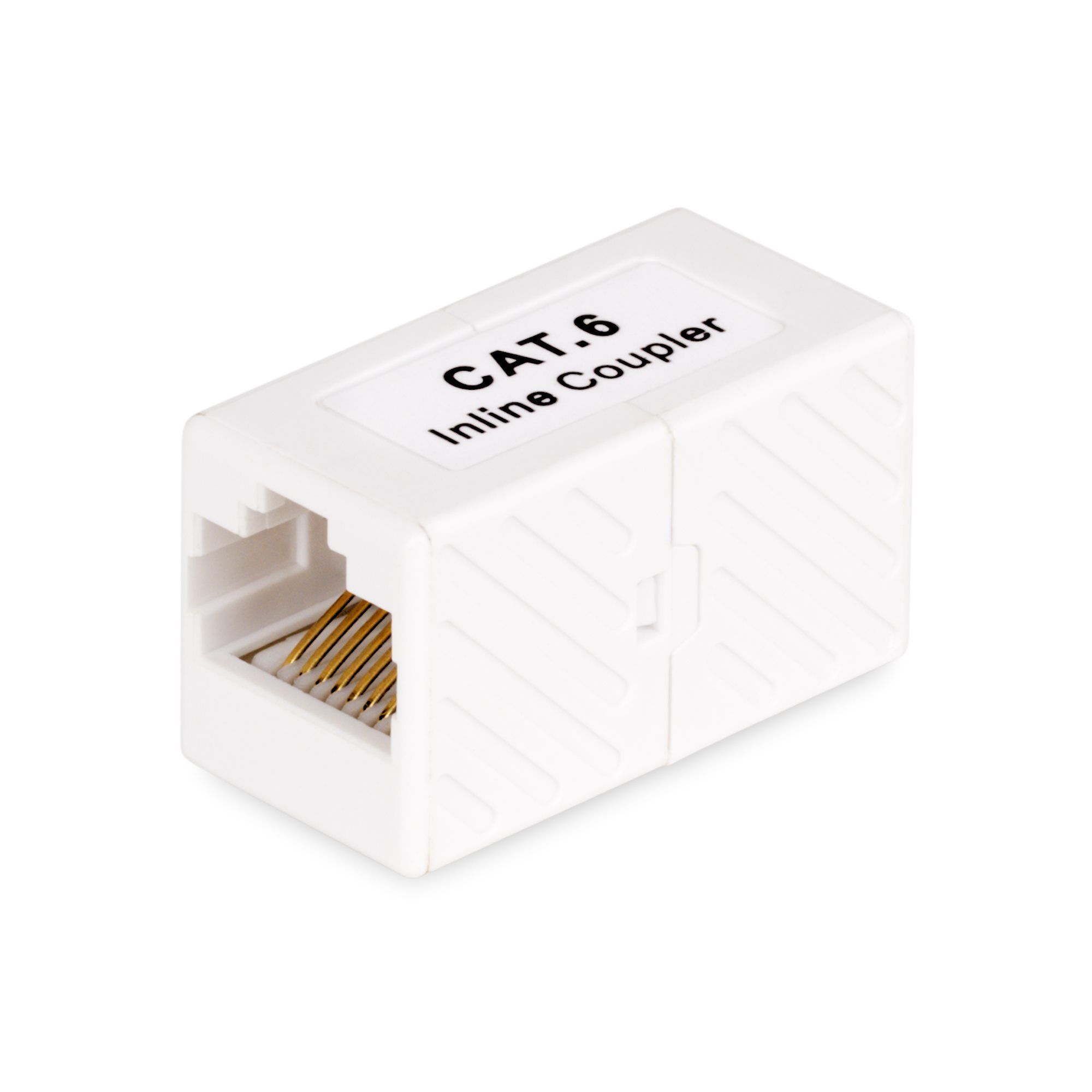

StarTech IN-CAT6-COUPLER-U5 Cat6 RJ45 Inline Coupler 5-Pack product image

Technical specifications

IN-CAT6-COUPLER-U5 specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Adapter Type	Passive
Quantity	5 couplers
Ports per Coupler	2
Conductors	8P8C
Wiring Standard	TIA/EIA-T568B
Shielding	Unshielded
Network Compatibility
Supported Speeds	10/100/1000Mbps; 2.5/5/10Gbps
Standards	IEEE 802.3, 802.3bz and 10GBASE-T
Power over Ethernet	Passive pass-through supported
Connectors
Connector A	RJ45 female
Connector B	RJ45 female
Environmental
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Humidity	1565%
Physical Characteristics
Dimensions per Coupler	30 × 15 × 17mm
Pack Weight	20g
Material	Polycarbonate
Colour	White
What's in the Box
Included	5 × unshielded RJ45 modular inline couplers

Sources: https://www.devicedeal.com.au/startech-in-cat6-coupler-u5-rj45-inline-cat6-coupl and https://www.startech.com/

SKU	IN-CAT6-COUPLER-U5
Barcode #	65030907170
Brand	Startech
Shipping Weight	0.0200kg
Shipping Width	0.002m
Shipping Height	0.009m
Shipping Length	0.007m
