Direct 2.5in drive access
Connect one compatible 2.5-inch SATA HDD or SSD without installing it in an enclosure.
StarTech USB 3.1 Adapter Cable for 2.5" SATA Drives - USB31CSAT3CB
Model # USB31CSAT3CB
-
SKU: USB31CSAT3CB
$42.00
Stock Availability
🟢Live
In Stock · 10+ available
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | USB31CSAT3CB
StarTech USB-C 10Gbps to 2.5in SATA Drive Adapter
Connect one compatible 2.5-inch SATA HDD or SSD directly to a USB-C computer for portable data access, migration, cloning, backup or recovery at up to USB 10Gbps.
USB-C 10Gbps2.5in SATA drivesUSB bus-powered
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
USB 10Gbps with UASP
Use USB 3.2 Gen 2 bandwidth up to 10Gbps and UASP with compatible drives, hosts and operating systems.
Portable USB-powered design
Power the connected 2.5-inch drive through USB without carrying a separate power adapter.
Storage-management support
Use TRIM, 4Kn and hot-swap functions with compatible drives and operating systems; no RAID capability is provided.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Still comparing options? Visit the DeviceDeal Buying Guides for practical product-selection help.
Product videos
Verified videos shown on this exact DeviceDeal product page.
Product video USB to SATA Drive Cables
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech USB31CSAT3CB do?
It connects one compatible 2.5-inch SATA HDD or SSD directly to a USB-C computer for data access, migration, cloning, backup or recovery.
Which drives are supported?
It supports one 2.5-inch SATA HDD or SSD. It is not compatible with 3.5-inch drives.
What is the maximum data-transfer rate?
It supports USB 10Gbps and UASP; actual performance depends on the host, drive and workload.
What is the current official chipset?
The current official StarTech technical specification lists the ASMedia ASM235CM chipset.
Does it need an external power adapter?
No. It is USB bus-powered for compatible 2.5-inch drives.
Does it support TRIM, 4Kn and hot swap?
Yes, with compatible drives and operating systems. Windows 7 and earlier do not support TRIM with USB-to-SATA devices.
Does it require a driver?
No. StarTech lists operating-system-independent operation with no software or driver installation required.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(USB31CSAT3CB)
Features and highlights
StarTech USB31CSAT3CB
Direct 2.5in drive access
Connect one compatible 2.5-inch SATA HDD or SSD without installing it in an enclosure.
USB 10Gbps with UASP
Use USB 3.2 Gen 2 bandwidth up to 10Gbps and UASP with compatible drives, hosts and operating systems.
Portable USB-powered design
Power the connected 2.5-inch drive through USB without carrying a separate power adapter.
Storage-management support
Use TRIM, 4Kn and hot-swap functions with compatible drives and operating systems; no RAID capability is provided.
- Current official chipset: ASMedia ASM235CM
- Tested with hard drives up to 2TB at 7200 RPM
- OS-independent plug-and-play operation
- Not compatible with 3.5-inch drives
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech USB31CSAT3CB specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Bus Type | USB 3.2 Gen 2 |
|---|---|
| Interface | USB 3.2 Gen 2 |
| Chipset ID | ASMedia - ASM235CM |
| Compatible Drive Types | SATA |
| Drive Size | 2.5in |
| Number of Drives | 1 |
Performance
| Maximum Data Transfer Rate | 10Gbps |
|---|---|
| UASP Support | Yes |
| TRIM Support | Yes |
| 4Kn Support | Yes |
| Hot Swap Capability | Yes |
| Hardware RAID Supported | No |
| Maximum Tested Drive Capacity | Hard drives up to 2TB at 7200 RPM |
| MTBF | 1,665,032 hours |
Connector(s)

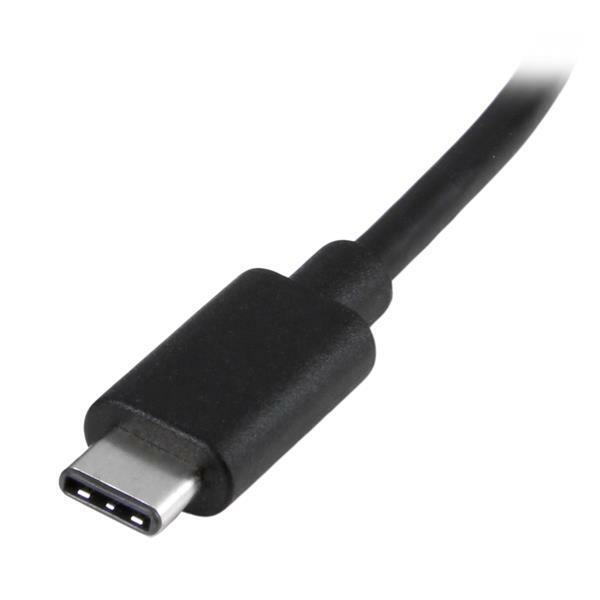

| Host Connector | 1 × USB-C male |
|---|---|

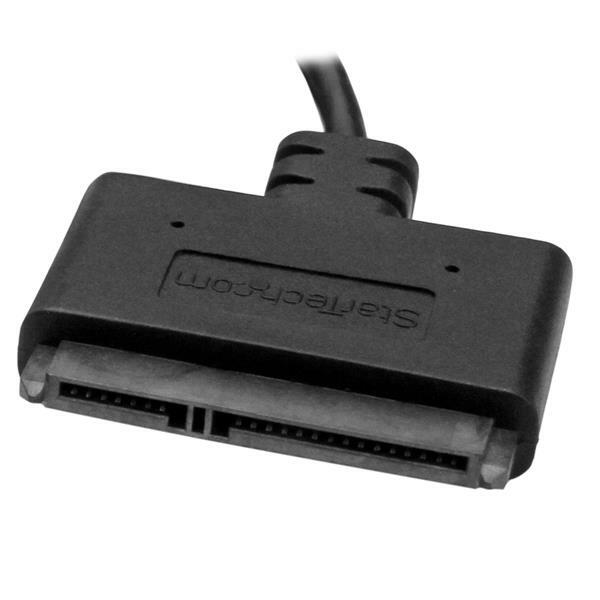

| Drive Connector | 1 × SATA data and power combo (7+15 pin) receptacle |
Software
| OS Compatibility | Operating-system independent; no software or drivers required |
|---|
Special Notes / Requirements
| Drive Limitation | 2.5-inch SATA drives only; not compatible with 3.5-inch drives |
|---|---|
| TRIM Note | Windows 7 and earlier do not support TRIM with USB-to-SATA devices |
Environmental
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
|---|---|
| Storage Temperature | -10°C to 55°C (14°F to 131°F) |
| Humidity | 40% to 50% RH |
Physical Characteristics
| Color | Black |
|---|---|
| Material | Plastic |
| Product Length | 20.0 in [50.8cm] |
| Product Width | 1.7 in [4.3cm] |
| Product Height | 0.2 in [5.0mm] |
| Weight of Product | 1.0 oz [29.2g] |
Packaging Information
| Package Quantity | 1 |
|---|---|
| Package Length | 6.4 in [16.2cm] |
| Package Width | 7.9 in [20.0cm] |
| Package Height | 0.6 in [1.5cm] |
| Shipping (Package) Weight | 1.7 oz [48g] |
What's in the Box

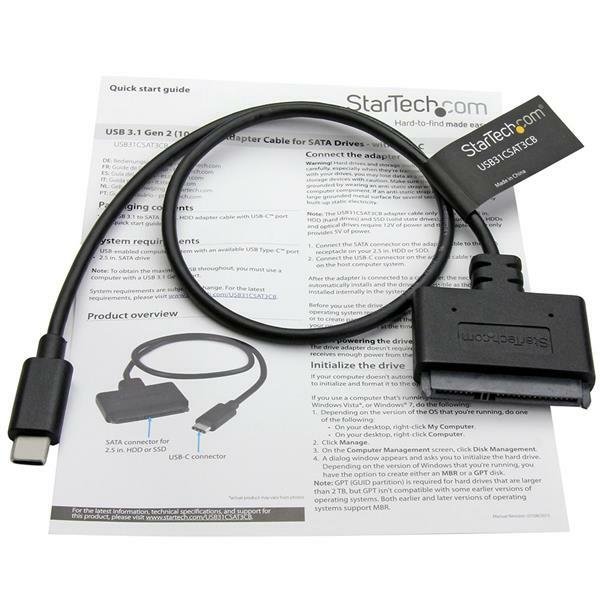

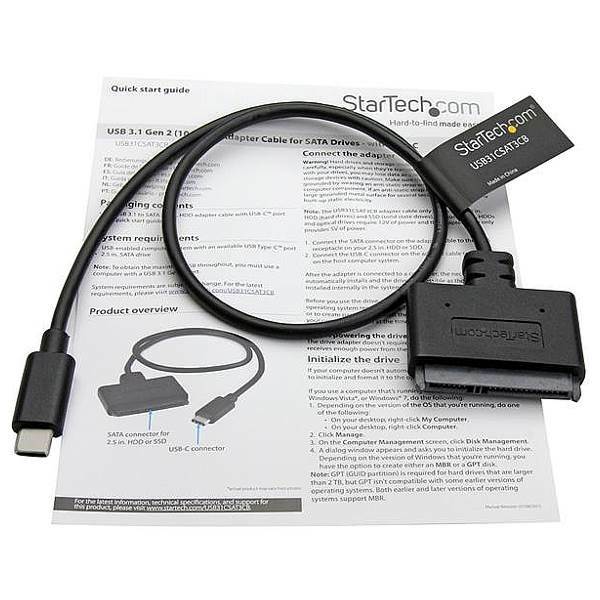

| Included in Package | 1 × USB-C to 2.5in SATA adapter cable; 1 × quick-start guide |
|---|
| SKU | USB31CSAT3CB |
| Barcode # | 65030863032 |
| Brand | Startech |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.010m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.000180000m3 |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
