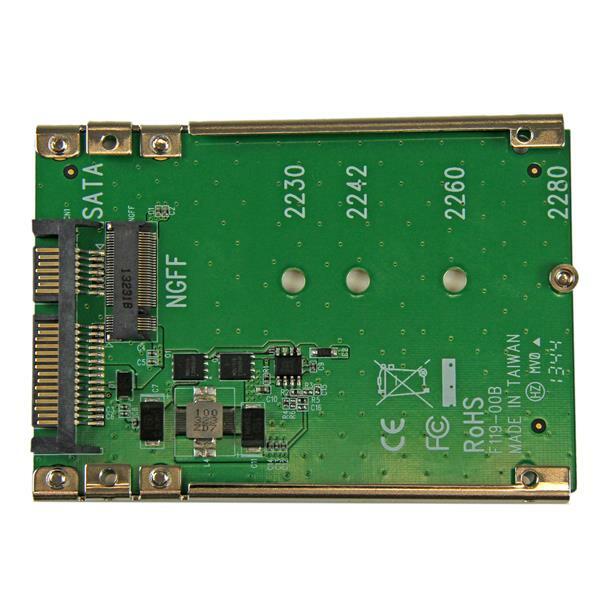

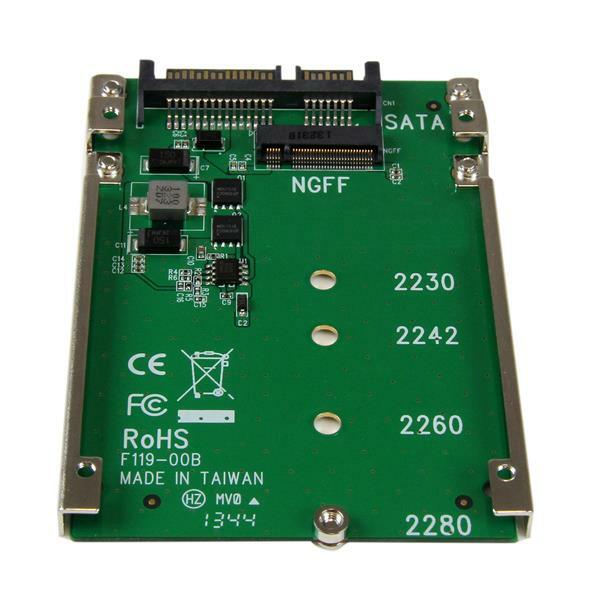

StarTech.com SAT32M225

M.2 SATA NGFF SSD to 2.5-inch SATA adapter

A 7mm-high adapter that converts one M.2 SATA B-key/NGFF SSD into a 2.5-inch SATA drive form factor with SATA III speeds up to 6Gbps.

M.2 SATA B-key/NGFF2230 / 2242 / 2260 / 2280SATA III 6Gbps2-year warranty

StarTech SAT32M225 M.2 SATA NGFF to 2.5-inch SATA adapter

Key capabilities

M.2 SATA to 2.5-inch SATA

Installs one M.2 SATA B-key/NGFF SSD into a 2.5-inch SATA application.

Four M.2 lengths

Supports 2230, 2242, 2260 and 2280.

SATA III 6Gbps

Supports up to 6Gbps.

Driver-free installation

OS independent with no additional software or drivers.

What to know before buying

This adapter supports M.2 SATA B-key/NGFF SSDs only. M.2 NVMe and AHCI PCI Express SSDs are not compatible.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What drives does SAT32M225 support?

One M.2 SATA B-key/NGFF SSD.

Which M.2 lengths are supported?

2230, 2242, 2260 and 2280.

Does it support NVMe?

No. NVMe and AHCI PCIe M.2 SSDs are not compatible.

What is the maximum data rate?

SATA III up to 6Gbps.

Does it support hot swap?

No.

Does it require drivers?

No.

What is included?

The converter, mounting screw kit and installation manual.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SAT32M225)

Features and highlights

M.2 SATA to 2.5-inch SATA

Installs one M.2 SATA B-key/NGFF SSD into a 2.5-inch SATA application.

Four M.2 lengths

Supports 2230, 2242, 2260 and 2280.

SATA III 6Gbps

Supports up to 6Gbps.

Driver-free installation

OS independent with no additional software or drivers.

M.2 SATA B-key/NGFF
2230 / 2242 / 2260 / 2280
SATA III 6Gbps
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms and assessment.

Specifications

Verified specifications for StarTech SAT32M225.

Warranty Information

Warranty	2 Years

Hardware

Compatible Drive Types	M.2 (SATA, B-Key, NGFF)
Drive Installation	Fixed
Interface	SATA
Number of Drives	1
Supported Drive Height(s)	2230
Supported Drive Height(s)	2242
Supported Drive Height(s)	2260
Supported Drive Height(s)	2280

Performance

General Specifications	Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
Hot Swap Capability	No
Maximum Data Transfer Rate	6 Gbps
Type and Rate	SATA III (6 Gbps)

Connector(s)

Drive Connectors	1 - M.2 (SATA, B-Key, NGFF) Receptacle
Host Connectors	1 - SATA Data & Power Combo (7+15 pin) Receptacle

Software

OS Compatibility	OS independent; No software or drivers required

Environmental

Operating Temperature	-40°C to 85°C (-40°F to 185°F)

Physical Characteristics

Product Height	0.3 in [0.7 cm]
Product Length	3.9 in [10 cm]
Product Width	2.8 in [70 mm]
Weight of Product	1.3 oz [36 g]

Packaging Information

Package Height	1.3 in [32 mm]
Package Length	5.7 in [14.5 cm]
Package Width	6.9 in [17.5 cm]
Shipping (Package) Weight	3.6 oz [102 g]

What's in the Box

Included in Package	1 - M.2 NGFF SSD to 2.5in SATA SSD Converter
Included in Package	1 - Mounting screw kit
Included in Package	1 - Installation manual

SKU	SAT32M225
Barcode #	65030855600
Brand	Startech
Shipping Weight	0.1000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.170m
Shipping Cubic	0.000850000m3
