StarTech.com · IDE2SAT2

StarTech IDE2SAT2 40-Pin IDE to SATA Drive Adapter Converter

40-Pin IDE to SATA Drive Adapter Converter for professional IT, AV or industrial connectivity applications.

Quick answer: IDE2SAT2 connects one SATA I, II or III drive to a 40-pin IDE/ATA motherboard port.

Best forUpgrading an older IDE-equipped computer with a SATA hard drive, SSD or supported optical drive.

Check before orderingThis adapter is for an IDE motherboard host to a SATA drive. Confirm the 40-pin IDE direction, drive clearance and available power.

Answers before you buy

Frequently asked questions

What is StarTech IDE2SAT2?

It is a IDE-host to SATA-drive adapter that connects one SATA I, II or III drive to a 40-pin IDE/ATA motherboard port.

Which connectors are provided?

40-pin IDE host; SATA data/power combo; SP4 power input

What performance is specified?

Up to 133MB/s; supports IDE/ATA 33/66/100/133

How is it powered?

Includes LP4 Molex-to-SP4 power cable; requires suitable system power

Which conversion direction does it support?

It connects a SATA drive to an IDE/ATA motherboard controller; it is not described as a bidirectional adapter.

Can it be used with an optical drive?

Yes. The source describes support for compatible SATA Blu-ray, DVD and CD-ROM optical drives.

What should be checked before ordering?

This adapter is for an IDE motherboard host to a SATA drive. Confirm the 40-pin IDE direction, drive clearance and available power.

What warranty applies?

IDE2SAT2 carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(IDE2SAT2)

Features & highlights

Why choose IDE2SAT2?

?Purpose-built connectivity40-pin IDE host; SATA data/power combo; SP4 power input

?Specified performanceUp to 133MB/s; supports IDE/ATA 33/66/100/133

?Power arrangementIncludes LP4 Molex-to-SP4 power cable; requires suitable system power

?Construction and deploymentCompact steel-and-plastic adapter board

?Key capabilitySupports one 2.5-inch or 3.5-inch SATA drive and source-described 5.25-inch SATA optical drive applications.

?Installation advantageOS-independent design requires no software or drivers.

Compatibility reminder: This adapter is for an IDE motherboard host to a SATA drive. Confirm the 40-pin IDE direction, drive clearance and available power.

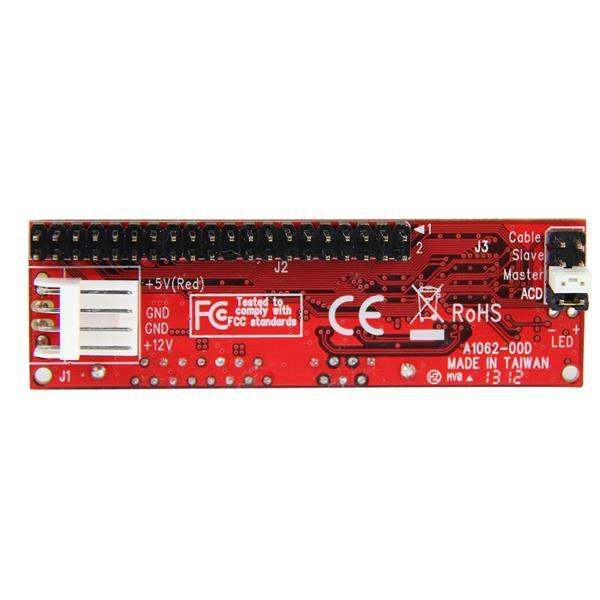

StarTech IDE2SAT2 40-Pin IDE to SATA Drive Adapter Converter product image

Technical specifications

IDE2SAT2 specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Chipset	Marvell 88SA8052
Host Interface	IDE / PATA
Compatible Drive Type	SATA
Drive Count	1
Drive Size	2.5-inch and 3.5-inch; optical-drive use described
Performance
Maximum Data Transfer Rate	133MB/s
IDE Standards	ATA 33 / 66 / 100 / 133
RAID	No
Connectors
Host	1 × 40-pin IDE
Drive	1 × SATA data and power combo
Power	1 × SP4 small-drive power
Software
Compatibility	OS independent; no software or drivers required
Environmental
Operating Temperature	5°C to 50°C
Storage Temperature	-25°C to 80°C
Humidity	1590% RH
Physical Characteristics
Dimensions	75.5 × 20 × 23mm
Weight	29g
Material	Steel and plastic
What's in the Box

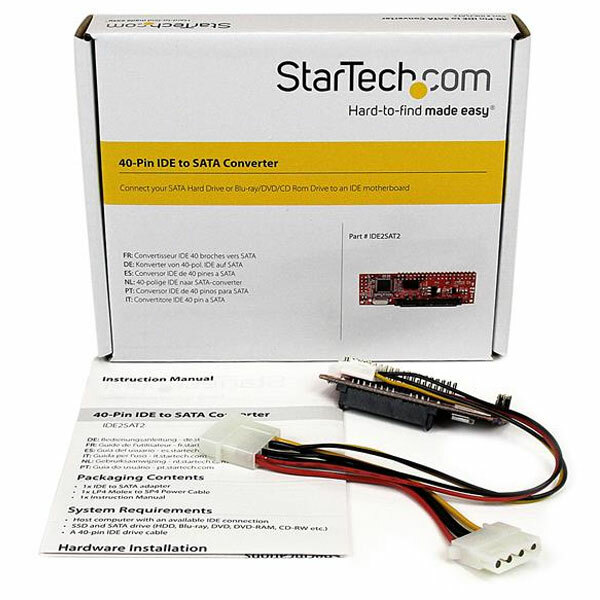

Included	IDE-to-SATA adapter; LP4 Molex-to-SP4 power cable; instruction manual
