StarTech 8-Port PCI Express Serial Card, Low Profile, RS-232 - PEX8S1050LP

Low-profile eight-port RS232 PCIe serial card with two DB9 breakout cables, 16C1050 UART and full-height brackets.

Quick answer: Adds eight DB9 RS232 ports through one PCIe x1 slot, using two four-port breakout cables and supporting up to 921.6Kbps per port.

Best forSmall-form-factor POS, industrial and automation systems needing eight Windows-compatible serial connections.

Check before orderingWindows and Windows Server only. Confirm low-profile slot access, breakout-cable clearance and whether powered pin 9 is required.

Answers before you buy

Frequently asked questions

What does PEX8S1050LP do?

Adds eight DB9 RS232 ports through one PCIe x1 slot, using two four-port breakout cables and supporting up to 921.6Kbps per port.

Who is this product best for?

Small-form-factor POS, industrial and automation systems needing eight Windows-compatible serial connections.

What should I check before ordering?

Windows and Windows Server only. Confirm low-profile slot access, breakout-cable clearance and whether powered pin 9 is required.

Does it require drivers or software?

Compatible with the Windows and Windows Server versions listed in the specifications; install the official driver where required.

What is included in the package?

PCIe serial card, two 30cm DB44-to-four-port DB9 breakout cables, two installed low-profile brackets, two full-profile brackets, guide and DB9 hex nuts.

What is the key installation requirement?

Install in a PCIe x1 or larger slot, mount both bracket positions, connect the breakout cables and configure pin-9 power only when required.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PEX8S1050LP carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PEX8S1050LP)

Features & highlights

Why choose PEX8S1050LP?

?Eight DB9 RS232 portsProvides eight serial connections through two compact breakout cables.

?Low-profile designShips with low-profile brackets installed and includes full-height brackets.

?Up to 921.6Kbps per portSupports high-speed bidirectional serial communication.

?16C1050 UARTProvides 256-byte FIFO buffering across multiple ports.

?15kV ESD protectionHelps protect serial interfaces in professional installations.

?Selectable powered pin 9Supports 5V, 12V or no power for compatible attached equipment.

Compatibility reminder: Windows and Windows Server only. Confirm low-profile slot access, breakout-cable clearance and whether powered pin 9 is required.

Technical specifications

PEX8S1050LP specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	Lifetime
Connector(s)
Host Connector	1 - PCI Express x1
Internal Power	1 - SP4 (4 pin, Small Drive Power)
External Ports	8 - DB-9 (9 pin, D-Sub)
Hardware
Ports	8
Interface	Serial
Bus Type	PCI Express

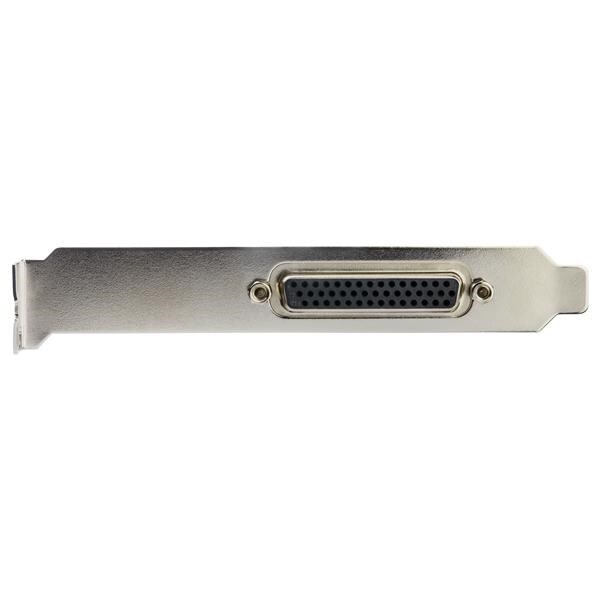

Card Type	Low Profile (standard-profile brackets included)
Port Style	Dongle / breakout cable included
UART	16C1050
Chipset ID	ASMedia ASM1083; SystemBase SB16C1058PCI
Performance
Serial Protocol	RS-232
Maximum Baud Rate	921.6Kbps per port
ESD Protection	±15kV air; ±8kV contact
Data Bits	5, 6, 7, 8
FIFO	256 bytes
Flow Control	RTS/CTS and XON/XOFF
Parity	None, even or odd
Stop Bits	1, 1.5 or 2
Powered Pin 9	Selectable 12V, 5V or no power; up to 3A total shared
Software
OS Compatibility	Windows CE 5.0, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11; Windows Server 20032022
Environmental
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 85°C
Humidity	5% to 95% RH
What's in the Box
Included	1 - PCIe serial card; 2 - 30cm DB44-to-four-port DB9 breakout cables; 2 - installed low-profile brackets; 2 - full-profile brackets; 1 - quick-start guide; 8 - DB9 hex-nut pairs
