StarTech HSB4SATSASBA 4-Bay 3.5in SATA/SAS Trayless Hot-Swap Backplane

Four-drive trayless backplane that converts three 5.25in bays into front-access hot-swap storage for 3.5in SATA or SAS drives, with a 70mm fan.

Quick answer: HSB4SATSASBA adds four lockable, trayless 3.5in SATA/SAS hot-swap bays using three 5.25in computer bays.

Best forServers, storage workstations and enterprise systems that require frequent access to four 3.5in SATA or SAS drives.

Check before orderingThe system requires three 5.25in front bays, sufficient SATA/SAS host ports and power; SAS operation needs compatible SAS hardware.

Answers before you buy

Frequently asked questions

What is StarTech HSB4SATSASBA?

It is a four-drive trayless hot-swap backplane for 3.5in SATA or SAS drives.

Which drives are supported?

Up to four 3.5in SATA or SAS drives are supported.

Which computer bay space is required?

Three available 5.25in front drive bays are required.

What is the maximum interface speed?

It supports drive connections up to 6Gbps with compatible hardware.

Does it support hot swapping?

Yes. Host controller and system configuration must also support hot swapping.

Is software required?

No. It is OS independent and does not require software or drivers; the host controller and operating environment must support the installed drives and intended hot-swap workflow.

Does it include physical drive security?

Yes. The drive bays use a key-lock design.

What warranty applies?

HSB4SATSASBA carries a 2-year StarTech.com manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(HSB4SATSASBA)

Features & highlights

Why choose HSB4SATSASBA?

?Four front-access drive baysInstalls four removable 3.5in SATA or SAS drives.

?Trayless ejection leversSupport fast drive insertion and removal.

?Interface speeds up to 6GbpsSupports compatible SATA/SAS drive connections up to 6Gbps.

?Integrated 70mm fanSupports airflow across the installed drives.

?Key-lock drive securityHelps prevent unintended drive removal.

?Individual activity LEDsProvides front-panel drive status plus a power LED.

Compatibility reminder: The system requires three 5.25in front bays, sufficient SATA/SAS host ports and power; SAS operation needs compatible SAS hardware.

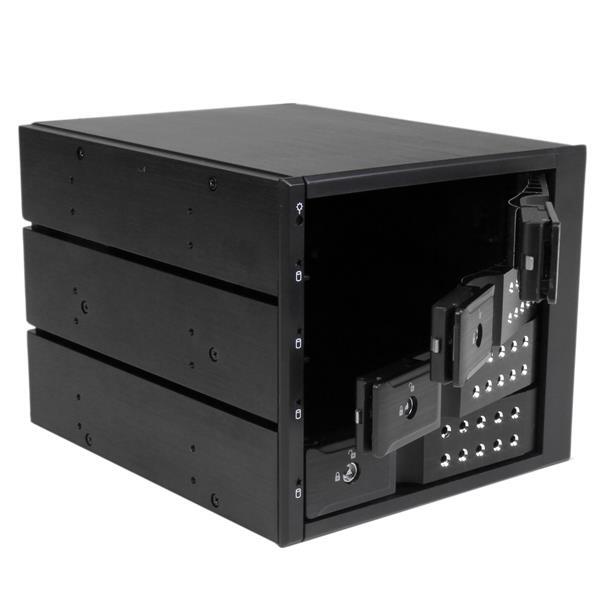

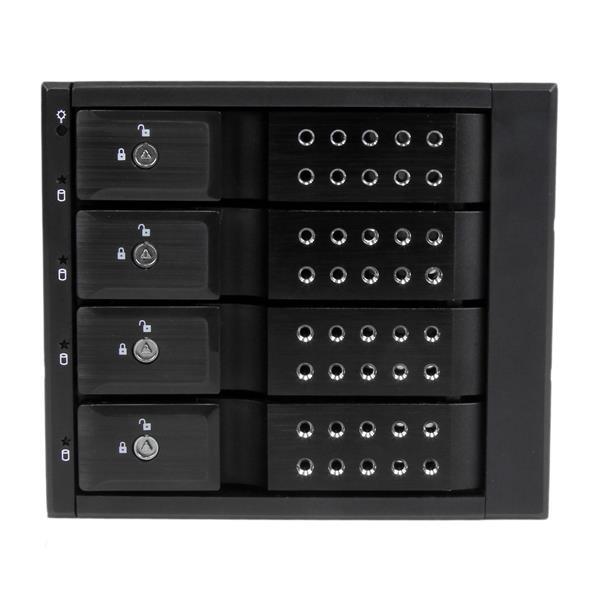

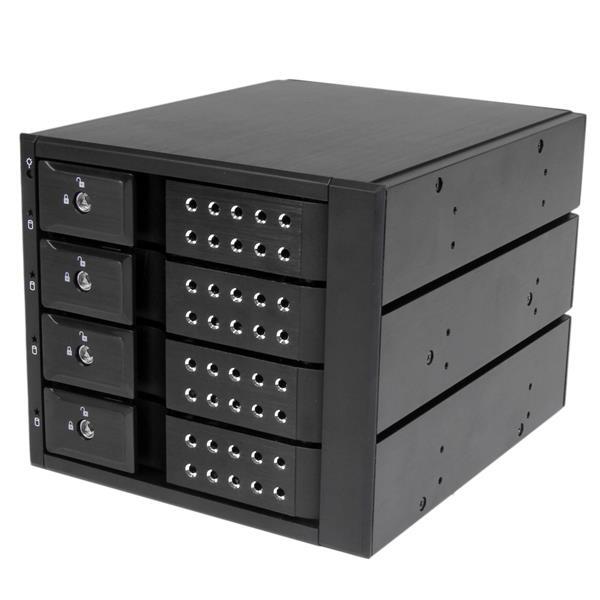

StarTech HSB4SATSASBA 4-Bay 3.5in SATA/SAS Trayless Hot-Swap Backplane product image

Technical specifications

HSB4SATSASBA specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Compatible Drives	4 × 3.5in SATA or SAS drives
Computer Bays Required	3 × 5.25in front bays
Front Door Key Lock	Yes
Fan	70mm sleeve-bearing fan
Performance
Maximum Data Transfer Rate	6Gbps
Connectors
Drive Side	SFF-8482 SAS data and power receptacles
Host Side	SATA data and SATA power receptacles
Physical Characteristics
Dimensions	197 × 146 × 126mm
Weight	1.3kg
Colour	Black
What's in the Box
Included	Backplane, SATA cables, drive bay keys, screws and manual

Sources: https://www.devicedeal.com.au/startech-4-bay-3.5-sata-sas-hdd-trayless-mobile-ra and https://www.startech.com/

SKU	HSB4SATSASBA
Barcode #	65030859547
Brand	Startech
Shipping Weight	1.5800kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.250m
Shipping Cubic	0.001250000m3
