2U Adjustable Rackmount DIN Rail Kit

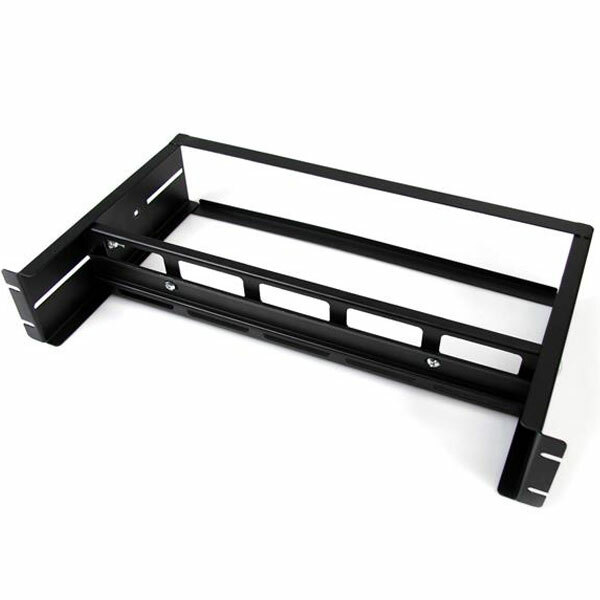

Install compatible DIN-rail equipment in a standard 19-inch rack using an adjustable 2U steel frame supplied with top-hat, miniature top-hat and G-type rails.
Key features
Three DIN rail standards

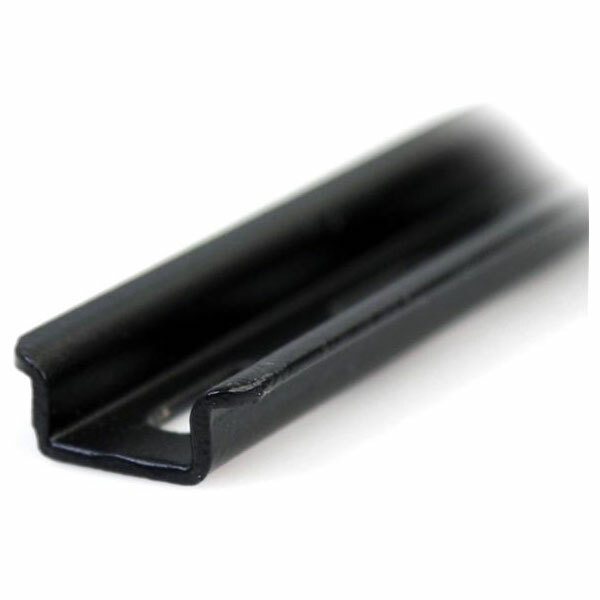

Includes top-hat, miniature top-hat and G-type rails for broad compatibility with industrial networking, control and AV equipment.
Adjustable DIN rail depth
Position compatible equipment within the steel 2U frame up to a maximum mounting depth of approximately 222mm.
Standard 19-inch installation
Fits compatible EIA-310-D 19-inch racks and cabinets and occupies 2U of rack space.
Heavy-duty steel design
Cold-pressed steel construction supports a maximum combined load of 12.5kg when correctly installed.
What to know
Bring DIN equipment into the rack
Organise compatible industrial switches, media converters, control modules and other DIN-rail devices without fabricating individual brackets.
Plan rack clearances
Confirm 2U availability, rack width and hole type, equipment rail standard, depth, weight, cable bend radius, ventilation and front/rear clearance before installation.
Australian version with official StarTech.com warranty
Lifetime manufacturer warranty
This is the Australian version supplied by DeviceDeal and is covered by an official StarTech.com lifetime manufacturer warranty in Australia. Keep your DeviceDeal invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility and product assessment.
StarTech ADJDINKIT FAQ
What is the StarTech ADJDINKIT?
It is a 2U adjustable-depth DIN rail mounting kit for 19-inch racks: Install compatible DIN-rail equipment in a standard 19-inch rack using an adjustable 2U steel frame supplied with top-hat, miniature top-hat and G-type rails.
What are the main features of ADJDINKIT?
Three DIN rail standards: Includes top-hat, miniature top-hat and G-type rails for broad compatibility with industrial networking, control and AV equipment. Adjustable DIN rail depth: Position compatible equipment within the steel 2U frame up to a maximum mounting depth of approximately 222mm. Standard 19-inch installation: Fits compatible EIA-310-D 19-inch racks and cabinets and occupies 2U of rack space.
What must I check before buying ADJDINKIT?
Confirm the rack has 2U available and supports the included hardware. Check DIN rail type, device depth and weight, cable clearance, ventilation and safe load distribution.
What is included with ADJDINKIT?

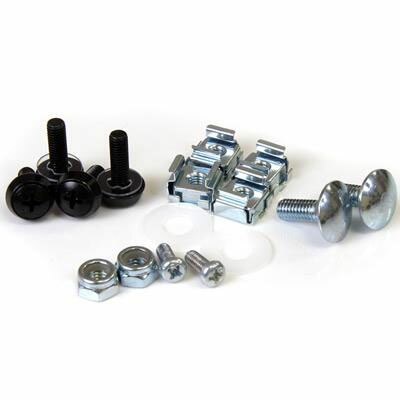

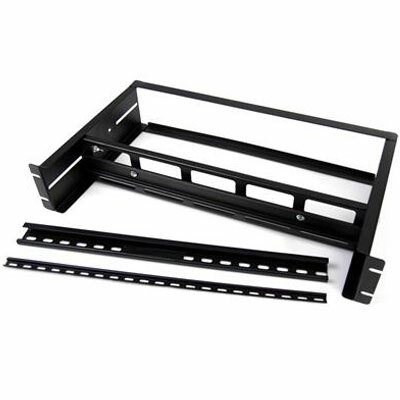

Rackmount frame/brackets, three DIN rails, carriage bolts, cage nuts, M5 screws, DIN-rail screws and wing nuts
Does ADJDINKIT require compatible equipment?
Yes. Connector type, interface standard, system support and the complete installation must match the product requirements shown in the specifications.
Is ADJDINKIT the Australian version?
Yes. DeviceDeal supplies the Australian version, backed by the official StarTech.com lifetime manufacturer warranty in Australia.
Do I need to keep my DeviceDeal invoice?
Yes. Keep the DeviceDeal tax invoice as proof of purchase if manufacturer warranty support is required.
What warranty covers ADJDINKIT?
ADJDINKIT carries an official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
